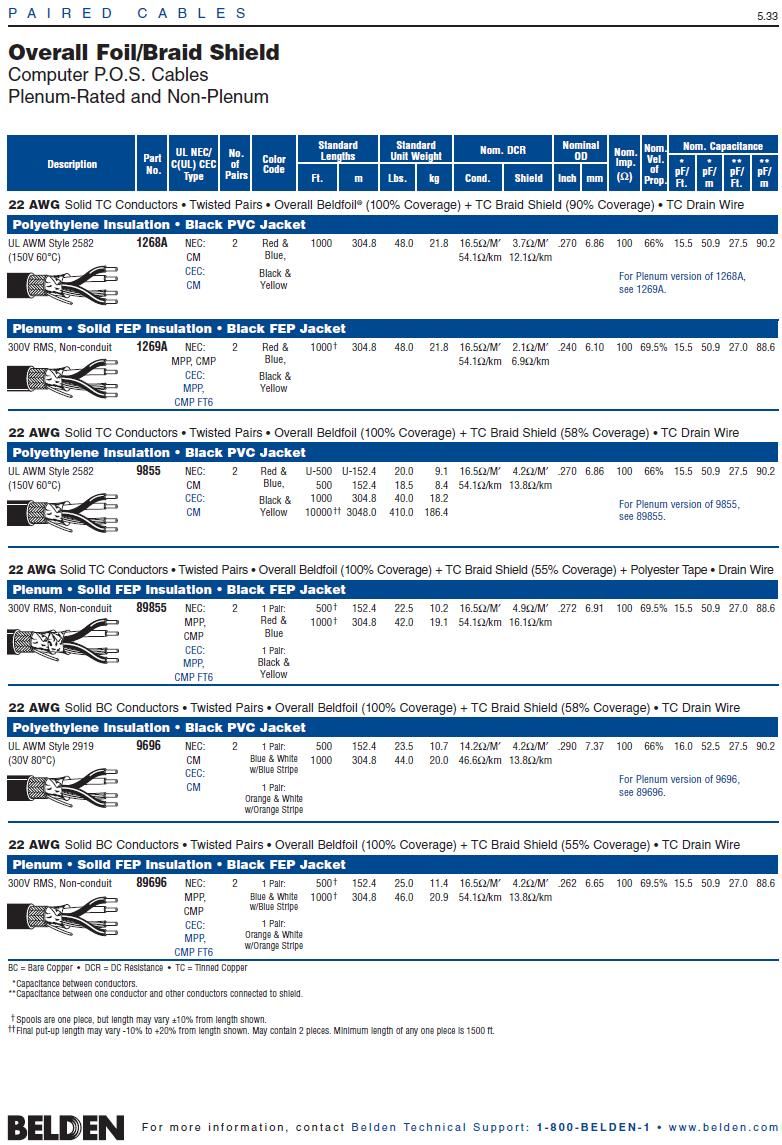

Multi-Conductor - Low Capacitance Computer and Computer P.O.S. Cable
22 AWG solid TC conductors, plenum, solid FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (55% coverage) plus polyester tape, 22 AWG solid TC drain wire, FEP jacket. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
89855 0101000 |
1,000 FT |
42.000 LB |
BLACK |
C |
2 PR #22 FEP SH FEP |
|
Notes: |
|
C = CRATE REEL PUT-UP.
|
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs |
AWG |
Stranding |
Conductor Material |
2 |
22 |
Solid |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Material |
FEP - Fluorinated Ethylene Propylene |
|
Outer Shield
Outer Shield Material:
Layer # |
Outer Shield Trade Name |
Type |
Outer Shield Material |
Coverage (%) |
1 |
Beldfoil® |
Tape |
Aluminum Foil-Polyester Tape |
100 |
2 |
|
Braid |
TC - Tinned Copper |
55 |
|
Outer Shield Drain Wire AWG:
AWG |
Stranding |
Drain Wire Conductor Material |
22 |
Solid |
TC - Tinned Copper |
|
Outer Shield Separator Material: |
Polyester Tape |
Outer Jacket
Outer Jacket Material:
Outer Jacket Material |
FEP - Fluorinated Ethylene Propylene |
|
Overall Cabling
Overall Nominal Diameter: |
0.272 in. |
Pair
Pair Color Code Chart:
Number |
Color |
1 |
Red & Blue |
2 |
Black & Yellow |
|
Mechanical Characteristics (Overall)
Operating Temperature Range: |
-70°C To +200°C |
Bulk Cable Weight: |
41.500 lbs/1000 ft. |
Max. Recommended Pulling Tension: |
65 lbs. |
Min. Bend Radius (Install)/Minor Axis: |
2.500 in. |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: |
MPP, CMP |
CEC/C(UL) Specification: |
MPP, CMP |
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
04/01/2005 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Flame Test
Plenum/Non-Plenum
Surface Printing (Overall)
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
Nom. Capacitance Conductor to Conductor:
Nom. Capacitance Cond. to Other Conductor & Shield:
Nominal Velocity of Propagation:
Nominal Delay:
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft) |
16.5 |
|
Nominal Outer Shield DC Resistance:
DCR @ 20°C (Ohm/1000 ft) |
4.9 |
|
Nom. Attenuation:
Freq. (MHz) |
Attenuation (dB/100 ft.) |
.3 |
.4 |
.6 |
.53 |
1.0 |
.65 |
1.5 |
.78 |
|
Max. Operating Voltage - UL:
Max. Recommended Current:
Current |
2.2 Amps per conductor @ 25°C (10°C rise in temp) |
|
|
