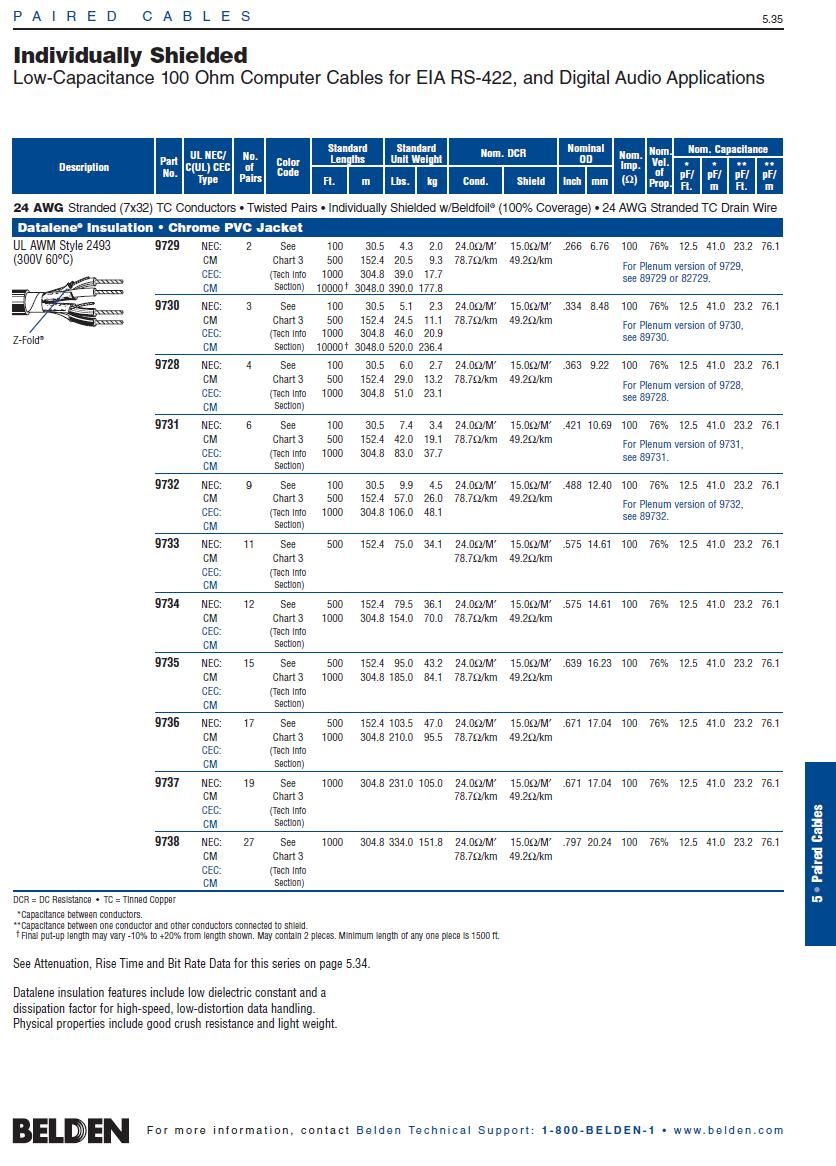

    Belden-9729 Awg24x2P UL2493 EIA RS422 100-Ohm Shielded Twisted Pair Cable 低電容量電腦傳輸線
    看原圖
    		451578

    商品編號: Belden-9729

    Belden-9729 Awg24x2P UL2493 EIA RS422 100-Ohm  Shielded Twisted Pair Cable     低電容量電腦傳輸線

    24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

    9729
    		    Multi-Conductor - Shielded Twisted Pair Cable
    24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    9729 060100 100 FT 4.300 LB CHROME 　 2 FS PR #24 FHDPE PVC
    9729 0601000 1,000 FT 39.000 LB CHROME C 2 FS PR #24 FHDPE PVC
    9729 06010000 10,000 FT 390.000 LB CHROME C Y 2 FS PR #24 FHDPE PVC
    9729 060500 500 FT 20.500 LB CHROME C 2 FS PR #24 FHDPE PVC
    Notes: 　
    C = CRATE REEL PUT-UP.
    Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN.MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material Dia. (in.)
    2 24 7x32 TC - Tinned Copper .024
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material Dia. (in.)
    Datalene® FPE - Foam Polyethylene .061
    Inner Shield
    Inner Shield Material:
    Inner Shield Trade Name Type Inner Shield Material Coverage (%)
    Beldfoil® (Z-Fold®) Tape Aluminum Foil-Polyester Tape 100
    Inner Shield Drain Wire AWG:
    AWG
    24
    Inner Shield Drain Wire Stranding: 7x32
    Inner Shield Drain Wire Conductor Material: TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.266 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & Red
    2 Black & White
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    1.100 10.900
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +80°C
    UL Temperature Rating: 60°C (UL AWM Style 2493)
    Bulk Cable Weight: 34.500 lbs/1000 ft.
    Max. Recommended Pulling Tension: 22 lbs.
    Min. Bend Radius (Install)/Minor Axis: 3.250 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    AWM Specification: UL Style 2493 (300 V 60°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Plenum Number: 89729, 82729
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    100
    Nom. Inductance:
    Inductance (µH/ft)
    0.23
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    12.5
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    23.2
    Nominal Velocity of Propagation:
    VP (%)
    76
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    24
    Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 15 Ohm/1000 ft
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    .384 0.74
    .7056 0.87
    .768 0.88
    1.024 0.94
    1.4112 1.01
    1.536 1.03
    2.048 1.13
    2.8224 1.29
    3.072 1.35
    4.096 1.57
    5.6448 1.78
    6.144 1.84
    8.192 2.13
    11.2896 2.45
    12.288 2.57
    24.576 3.57
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS (UL AWM Style 2493)
    Max. Recommended Current:
    Current
    1 Amp per conductor @ 25°C
