    Belden9838 Awg24x25P UL2919 - Low Capacitance Computer Cable for EIA RS-232/422低電容量雙隔離電腦傳輸線
    看原圖
    		452685

    商品編號: Belden-9838

    Belden9838 Awg24x25P UL2919 - Low Capacitance Computer Cable for EIA RS-232/422低電容量雙隔離電腦傳輸線

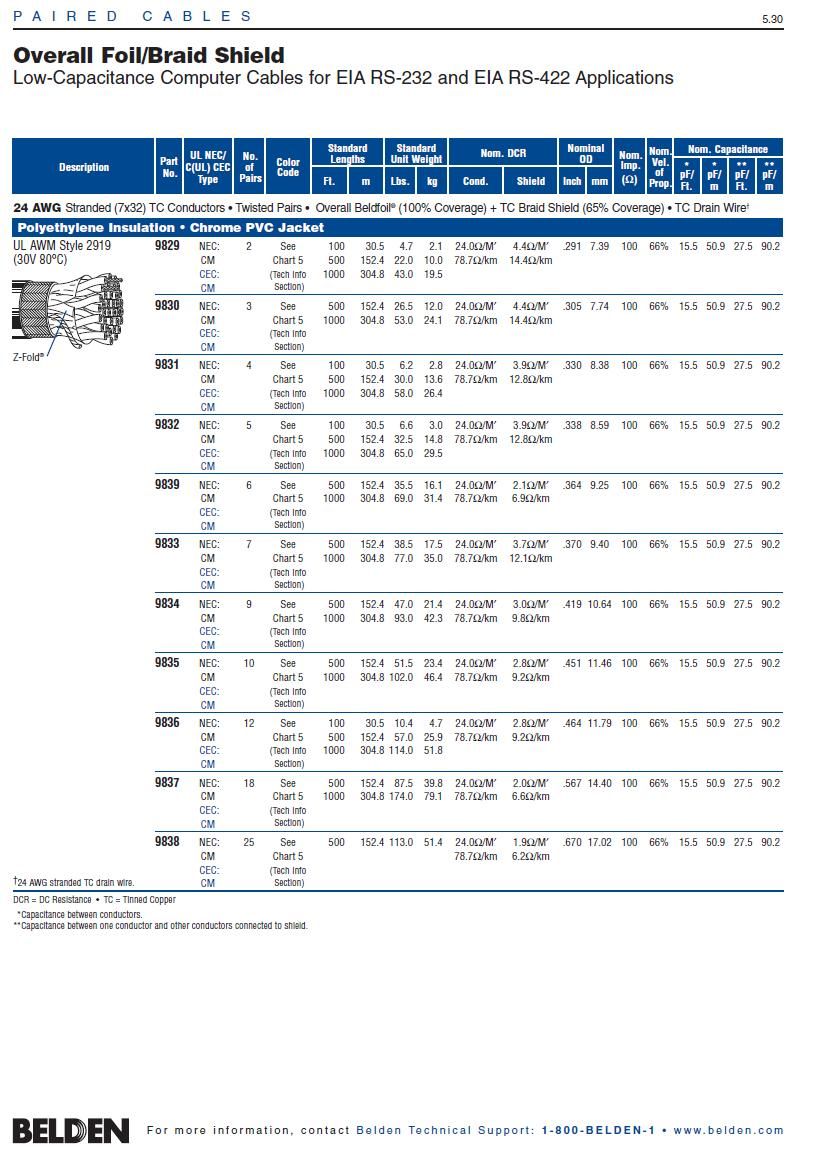

    24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, PVC jacket.

    Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/422
    24 AWG stranded (7x32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, PVC jacket.

    　

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    25 24 7x32 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material
    PE - Polyethylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 65
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    24 Stranded TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.670 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 White/Blue & Blue/White
    2 White/Orange & Orange/White
    3 White/Green & Green/White
    4 White/Brown & Brown/White
    5 White/Gray & Gray/White
    6 Red/Blue & Blue/Red
    7 Red/Orange & Orange/Red
    8 Red/Green & Green/Red
    9 Red/Brown & Brown/Red
    10 Red/Gray & Gray/Red
    11 Black/Blue & Blue/Black
    12 Black/Orange & Orange/Black
    13 Black/Green & Green/Black
    14 Black/Brown & Brown/Black
    15 Black/Gray & Gray/Black
    16 Yellow/Blue & Blue/Yellow
    17 Yellow/Orange & Orange/Yellow
    18 Yellow/Green & Green/Yellow
    19 Yellow/Brown & Brown/Yellow
    20 Yellow/Gray & Gray/Yellow
    21 Purple/Blue & Blue/Purple
    22 Purple/Orange & Orange/Purple
    23 Purple/Green & Green/Purple
    24 Purple/Brown & Brown/Purple
    25 Purple/Gray & Gray/Purple
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    1.500 8.000
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +80°C
    UL Temperature Rating: 80°C (UL AWM Style 2919)
    Bulk Cable Weight: 198 lbs/1000 ft.
    Min. Bend Radius (Install)/Minor Axis: 6.750 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    AWM Specification: UL Style 2919 (30 V 80°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    100
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    15.5
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    27.5
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nominal Delay:
    Delay (ns/ft)
    1.54
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    24
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    1.9
    Max. Operating Voltage - UL:
    Voltage
    30 V RMS (UL AWM Style 2919)
    300 V RMS (CM)
    Max. Recommended Current:
    Current
    1 Amp per conductor @ 25°C
