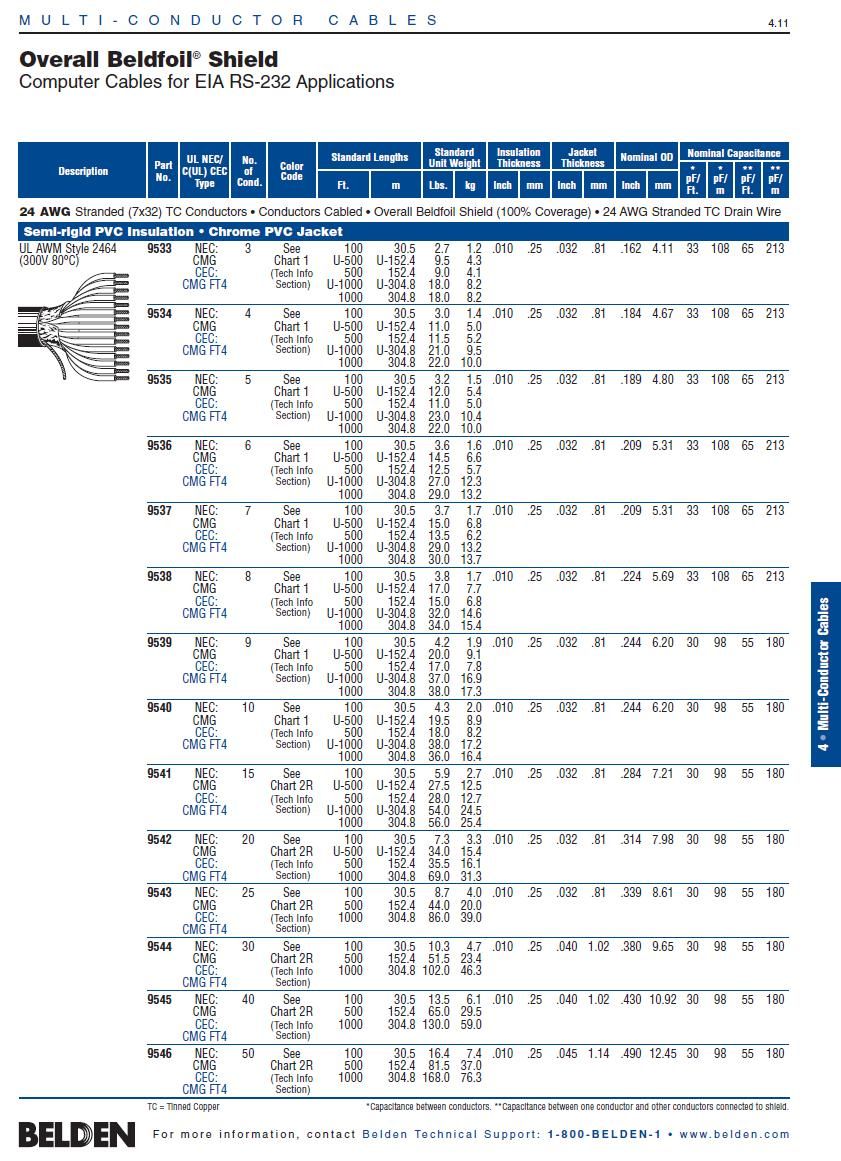

    Belden9535 UL2464 AWG24x5C Beldfoil® shield- Computer Cable for EIA RS-232 Applications 鋁箔隔離電腦傳輸電纜線
    看原圖
    		486074

    商品編號: Belden-9535

    Belden9535 UL2464 AWG24x5C Beldfoil® shield- Computer Cable for EIA RS-232 Applications 鋁箔隔離電腦傳輸電纜線

    24 AWG stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
    9535
    		    Multi-Conductor - Computer Cable for EIA RS-232 Applications
    24 AWG stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    9535 060U1000 1,000 FT 23.000 LB CHROME 　 5 #24 PVC FS PVC
    9535 060U500 500 FT 12.000 LB CHROME 　 5 #24 PVC FS PVC
    9535 060100 100 FT 2.900 LB CHROME 　 5 #24 PVC FS PVC
    9535 0601000 1,000 FT 24.000 LB CHROME C 5 #24 PVC FS PVC
    9535 060500 500 FT 12.500 LB CHROME C 5 #24 PVC FS PVC
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    5 24 7x32 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .010
    Outer Shield
    Outer Shield Material:
    Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    24 7x32 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride .032
    Overall Cabling
    Overall Cabling Lay Length & Direction:
    Length (in.)
    1.75
    Overall Cabling Color Code Chart:
    Number Color
    1 Black
    2 White
    3 Red
    4 Green
    5 Brown
    Overall Nominal Diameter: 0.189 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +80°C
    UL Temperature Rating: 80°C (UL AWM Style 2464)
    Bulk Cable Weight: 21.800 lbs/1000 ft.
    Max. Recommended Pulling Tension: 27.500 lbs.
    Min. Bend Radius (Install)/Minor Axis: 1.870 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMG
    CEC/C(UL) Specification: CMG
    AWM Specification: UL Style 2464 (300 V 80°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    C(UL) Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    33
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    65
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    25
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    18
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS (UL AWM Style 2464)
    Max. Recommended Current:
    Current
    1.75 Amps per conductor @ 25°C
