    THHN/THWN Awg12 -1C 19 STR BC 90C 600V BLK (PVC尼龍被覆線)
    看原圖
    		175218

    商品編號: THHN-12

    THHN/THWN Awg12 -1C 19 STR BC 90C 600V BLK (PVC尼龍被覆線)

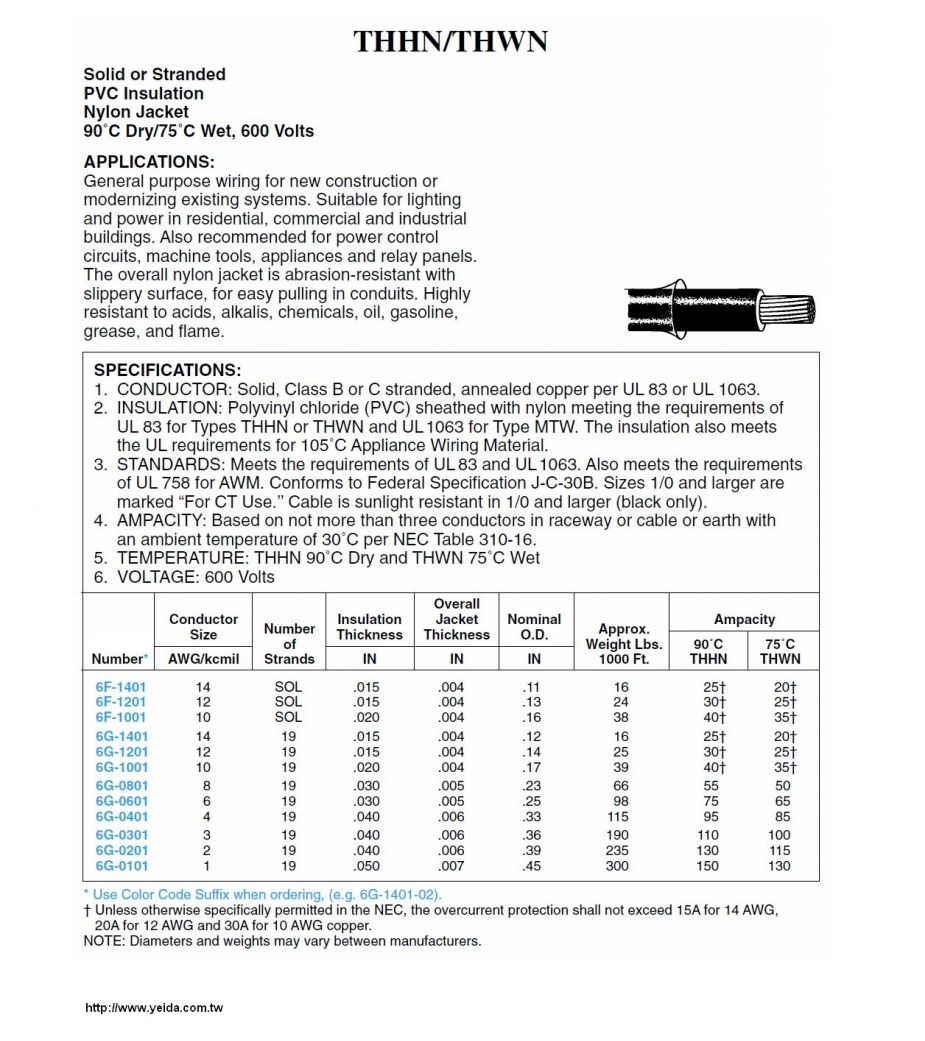

    THHN/THWN STRANDED ANNEALED COPPER CONDUCTORS. INSULATION: PVC SHEATHED WITH NYLON MEETING REQUIREMENTS FOR UL 83 FOR THHN OR THWN AND UL 1063 FOR TYPE MTW. 90C DRY/75C WET, 600 VOLTS

    Description 12-1C THHN/THWN 19 STR BC 90C 600V BLK
    CABLE, 12 AWG, 1 CONDUCTOR, THHN/THWN 19 STR BARE COPPER 90C 600V COLOR BLACK
    　
    THHN/THWN STRANDED ANNEALED COPPER CONDUCTORS. INSULATION: PVC SHEATHED WITH NYLON MEETING REQUIREMENTS FOR UL 83 FOR THHN OR THWN AND UL 1063 FOR TYPE MTW. 90C DRY/75C WET, 600 VOLTS

    Attributes
    Conductor Size/Gauge: 12 AWG
    CONDUCTOR: Count 1 CONDUCTOR
    Type STRANDED
    Material BARE COPPER
    Voltage Range: 600
    Temperature Rating: 90 DEGREES CENTIGRADE
    INSULATION: Material PVC-POLYVINYL CHLORIDE
    Screen/Shield: UNSHIELDED
    JACKETING: Material NYLON
    Color BLACK
    Armor: NO
    EARTH/GROUND WIRES: NO
    Composite: NO
    Product Type: THHN
    Unspsc Code 26121614
