    首頁 > > AN-SIS-Wire-電線XLP-600V-90度(配電盤用線)

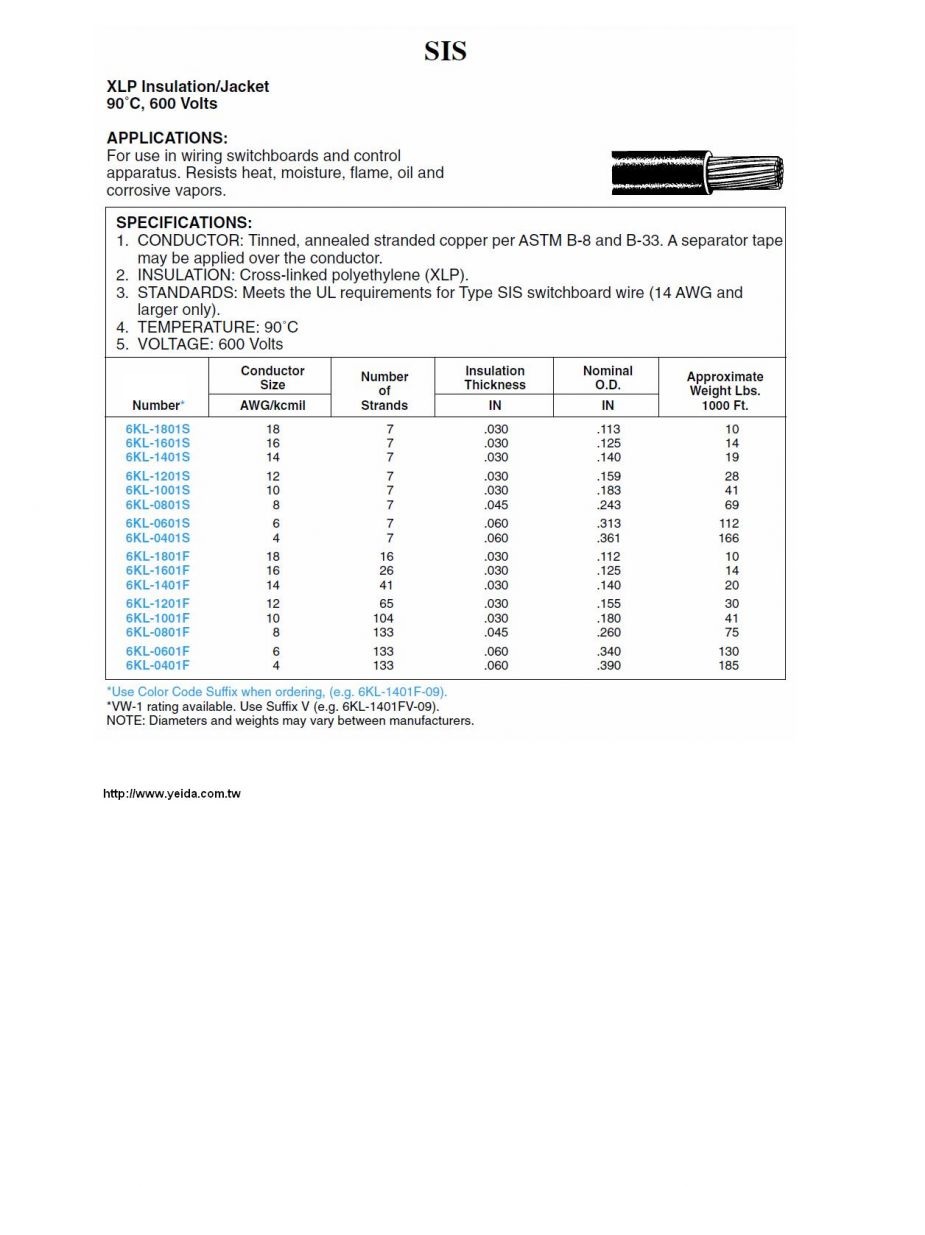

    SIS 電線 Awg 16 ( 1.25MM*) XLPE 90度 600V UL交連PE抗輻射,耐熱,耐燃,抗腐蝕蒸氣,防油,配電盤用線-灰色)
    看原圖
    		131356

    商品編號: 6KL-1601F-09

    SIS 電線 Awg 16 ( 1.25MM*) XLPE 90度 600V UL交連PE抗輻射,耐熱,耐燃,抗腐蝕蒸氣,防油,配電盤用線

    SIS. Tinned, annealed stranded copper conductors. A separator tape may be applied over the conductor. Cross-linked polyethylene (XLP) insulation. 90C. 600 volts. Resists heat, moisture, flame, oil, and corrosive vapors

    Attributes
    Gauge: (AWG) 16 AWG (AMERICAN WIRE GAUGE)
    CONDUCTOR: Stranding 26 STRANDS IN EACH CONDUCTOR
    Material TINNED COPPER
    INSULATION: Material XLP-CROSS LINKED POLYETHYLENE
    Color GRAY (SLATE)
    Shielded: NOT SHIELDED
    SPEC/STD: UL UL LISTED TYPE SIS (SWITCHBOARD WIRE)
    Temperature Rating: 90 DEGREES CENTIGRADE (194 F)
