    TUBEFLEX-Y roundshaped flat ribbon cable for IDC-technique, PVC圓形帶狀扁平電纜
    看原圖
    		30173001




    商品編號: HELUKABEL-TUBEFLEX-Y

    TUBEFLEX-Y roundshaped flat ribbon cable for IDC-technique, PVC圓形帶狀扁平電纜

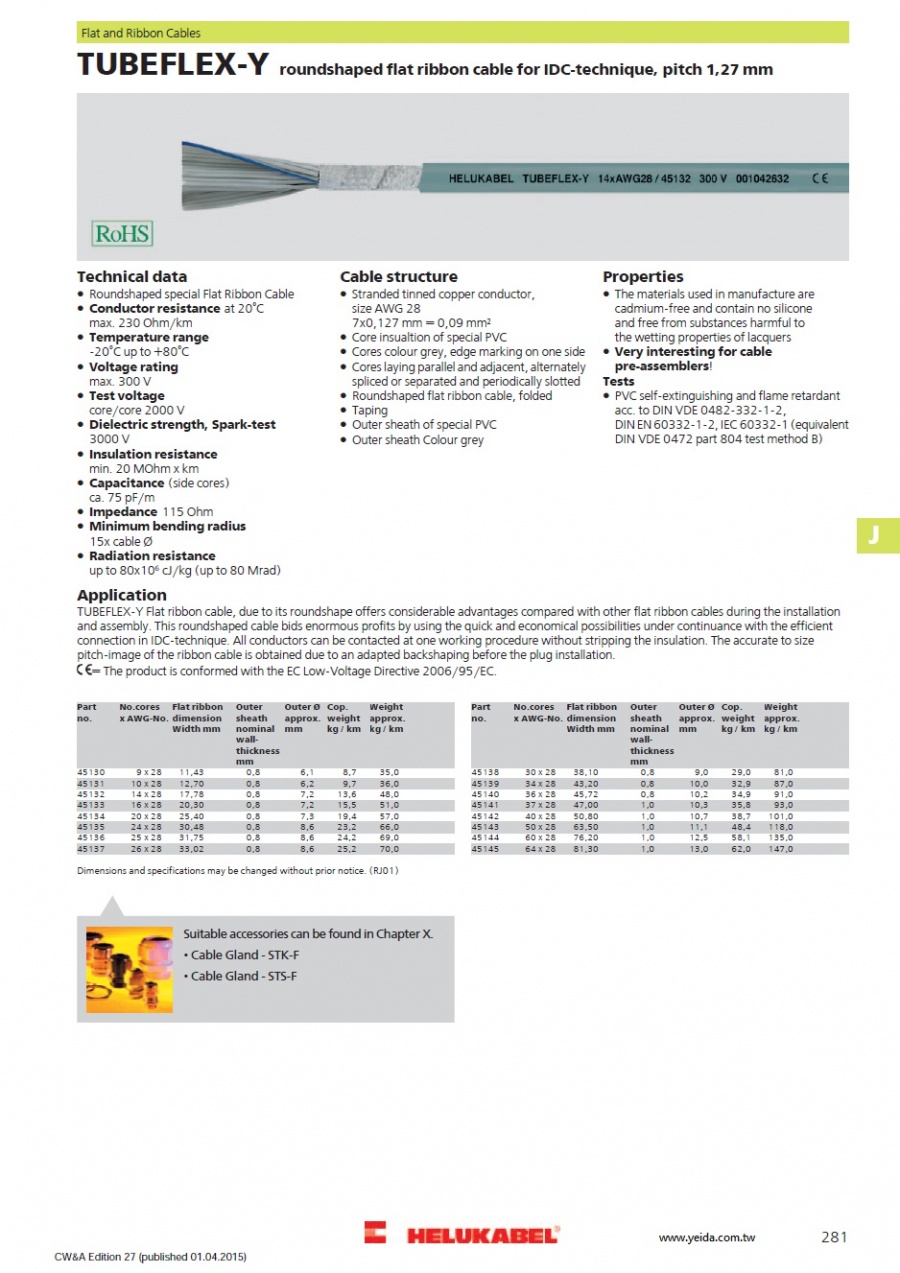

    TUBEFLEX-Y roundshaped flat ribbon cable for IDC-technique, pitch 1,27 mm



    ★★★★商品說明★★★★

    Technical data
    • Roundshaped special Flat Ribbon Cable
    • Conductor resistance at 20°C
      max. 230 Ohm/km
    • Temperature range
      -20°C up to +80°C
    • Voltage rating
      max. 300 V
    • Test voltage
      core/core 2000 V
    • Dielectric strength, Spark-test
      3000 V
    • Insulation resistance
      min. 20 MOhm x km
    • Capacitance (side cores)
      ca. 75 pF/m
    • Impedance 115 Ohm
    • Minimum bending radius
      15x cable Ø
    • Radiation resistance
      up to 80x106 cJ/kg (up to 80 Mrad)
    Cable structure
    • Stranded tinned copper conductor,
      size AWG 28
      7x0,127 mm = 0,09 mm²
    • Core insualtion of special PVC
    • Cores colour grey, edge marking on one side
    • Cores laying parallel and adjacent, alternately
      spliced or separated and periodically slotted
    • Roundshaped flat ribbon cable, folded
    • Taping
    • Outer sheath of special PVC
    • Outer sheath Colour grey
    Properties
    • The materials used in manufacture are
      cadmium-free and contain no silicone
      and free from substances harmful to
      the wetting properties of lacquers
    • Very interesting for cable
      pre-assemblers!

    Tests

    • PVC self-extinguishing and flame retardant
      acc. to DIN VDE 0482-332-1-2,
      DIN EN 60332-1-2, IEC 60332-1 (equivalent
      DIN VDE 0472 part 804 test method B)
    Application
    TUBEFLEX-Y Flat ribbon cable, due to its roundshape offers considerable advantages compared with other flat ribbon cables during the installation and assembly. This roundshaped cable bids enormous profits by using the quick and economical possibilities under continuance with the efficient connection in IDC-technique. All conductors can be contacted at one working procedure without stripping the insulation. The accurate to size pitch-image of the ribbon cable is obtained due to an adapted backshaping before the plug installation.
    CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

    TUBEFLEX-Y扁平電纜，由於其roundshape的安裝和裝配過程中的其他扁平電纜相比，提供了相當大的優勢。這roundshaped電纜通過與IDC-技術的高效連接下持續快速且經濟的可能性出價巨大的利潤。所有的導體可以在一個工作程序聯絡不剝絕緣。由於獲得到插頭安裝前一個適於backshaping帶狀電纜的精確尺寸基音圖像。
