BAULIFTKABEL B101 / B102 / B103 to be used at plant elevators 廠內垂直升降機電纜

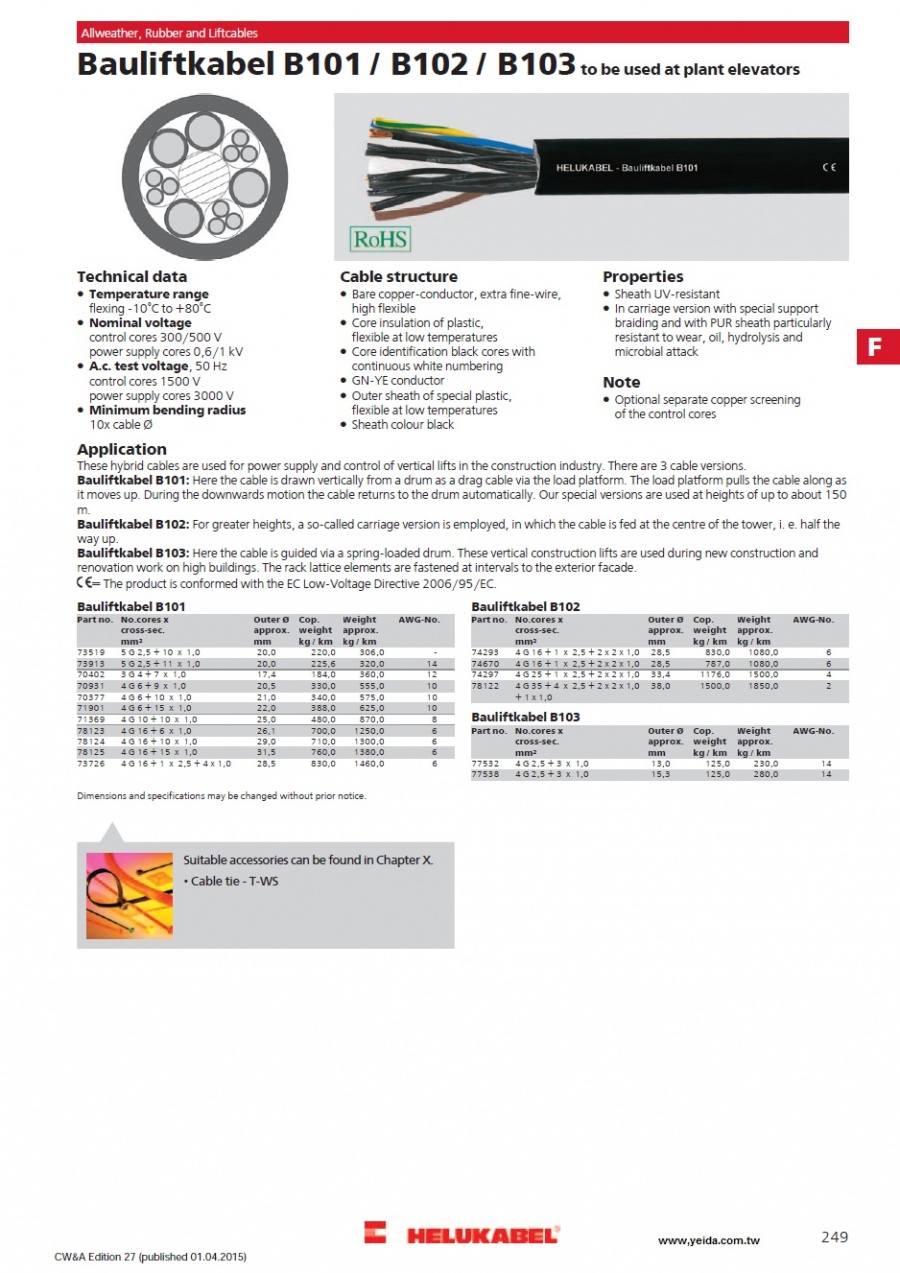

BAULIFTKABEL B101 / B102 / B103 to be used at plant elevators

★★★★商品說明★★★★

Technical data

Temperature range
flexing -10°C to +80°C
Nominal voltage
control cores 300/500 V
power supply cores 0,6/1 kV
A.c. test voltage, 50 Hz
control cores 1500 V
power supply cores 3000 V
Minimum bending radius
10x cable Ø

Cable structure

Bare copper-conductor, extra fine-wire,
high flexible
Core insulation of plastic,
flexible at low temperatures
Core identification black cores with
continuous white numbering
GN-YE conductor
Outer sheath of special plastic,
flexible at low temperatures
Sheath colour black

Properties

Sheath UV-resistant
In carriage version with special support
braiding and with PUR sheath particularly
resistant to wear, oil, hydrolysis and
microbial attack

Note

Optional separate copper screening
of the control cores

Application

These hybrid cables are used for power supply and control of vertical lifts in the construction industry. There are 3 cable versions.
Bauliftkabel B101: Here the cable is drawn vertically from a drum as a drag cable via the load platform. The load platform pulls the cable along as it moves up. During the downwards motion the cable returns to the drum automatically. Our special versions are used at heights of up to about 150 m.
Bauliftkabel B102: For greater heights, a so-called carriage version is employed, in which the cable is fed at the centre of the tower, i. e. half the way up.
Bauliftkabel B103: Here the cable is guided via a spring-loaded drum. These vertical construction lifts are used during new construction and renovation work on high buildings. The rack lattice elements are fastened at intervals to the exterior facade.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

BAULIFTKABEL B103

Part No.

No.cores x

cross-sec.

mm²

Outer ø

ca. mm

Cop.

weight

kg / km

Weight

ca. kg / km

AWG-No.

77532

4 x 2,5 + 3 x 1,0

13,0

125,0

230,0

77538

4 x 2,5 + 3 x 1,0

15,3

125,0

280,0

BAULIFTKABEL B102

Part No.	No.cores x cross-sec. mm²	Outer ø ca. mm	Cop. weight kg / km	Weight ca. kg / km	AWG-No.
74293	4 x 16 + 1 x 2,5 + 2 x 20 x 1,0	28,5	830,0	1080,0	6
74670	4 x 16 + 1 x 2,5 + 2 x 20 x 1,0	28,5	787,0	1080,0	6
74297	4 x 25 + 1 x 2,5 + 2 x 20 x 1,0	33,4	1176,0	1500,0	4
78122	4 x 35 + 4 x 2,5 + 2 x 20 x 1,0 + 1 x 1,0	38,0	1500,0	1850,0	2

BAULIFTKABEL B101

Part no.	No.cores x cross-sec. mm²	Outer Ø approx. mm	Cop. weight kg / km	Weight approx. kg / km	AWG-No.
73519	5 x 2,5 + 10 G 1,0	20,0	220,0	306,0	-
73913	5 x 2,5 + 11 G 1,0	20,0	225,6	320,0	14
70402	3 x 4 + 7 G 1,0	17,4	184,0	360,0	12
70931	4 x 6 + 9 G 1,0	20,5	330,0	555,0	10
70377	4 x 6 + 10 G 1,0	21,0	340,0	575,0	10
71901	4 x 6 + 15 G 1,0	22,0	388,0	625,0	10
71369	4 x 10 + 10 G 1,0	25,0	480,0	870,0	8
78123	4 x 16 + 6 G 1,0	26,1	700,0	1250,0	6
78124	4 x 16 + 10 G 1,0	29,0	710,0	1300,0	6
78125	4 x 16 + 15 G 1,0	31,5	760,0	1380,0	6
73726	4 x 16 + 1 G 2,5 + 4 x 1,0	28,5	830,0	1460,0	6
