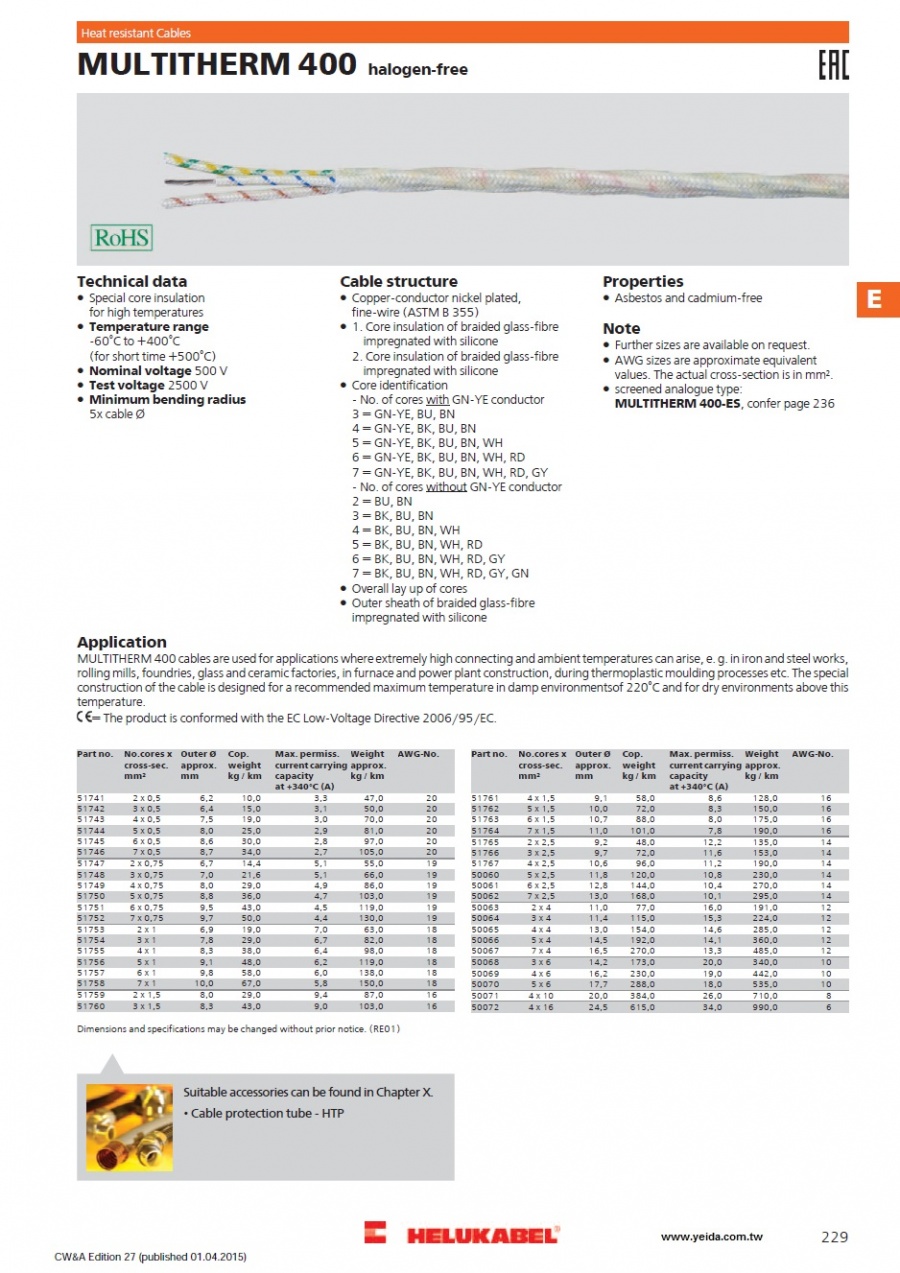

MULTITHERM 400 -60°C to +400°C 矽橡膠玻璃絲編織多芯耐高溫電纜

產品搜尋

分　類：
關鍵字：

首頁 > Power/Data-Cable(進口電線電纜)> HELUKABEL-Wire and Cable > HELUKABEL-Industrial Heat-Resistant Cables

MULTITHERM 400 -60°C to +400°C 矽橡膠玻璃絲編織多芯耐高溫電纜

30171521

商品編號: HELUKABEL-MULTITHERM-400

MULTITHERM 400 -60°C to +400°C 矽橡膠玻璃絲編織多芯耐高溫電纜

MULTITHERM 400 -60°C to +400°C

★★★★商品說明★★★★

Technical data

Special core insulation
for high temperatures
Temperature range
-60°C to +400°C
(for short time +500°C)
Nominal voltage 500 V
Test voltage 2500 V
Minimum bending radius
5x cable Ø

Cable structure

Copper-conductor nickel plated,
fine-wire (ASTM B 355)
1. Core insulation of braided glass-fibre
impregnated with silicone
2. Core insulation of braided glass-fibre
impregnated with silicone
Core identification
- No. of cores with GN-YE conductor
3 = GN-YE, BU, BN
4 = GN-YE, BK, BU, BN
5 = GN-YE, BK, BU, BN, WH
6 = GN-YE, BK, BU, BN, WH, RD
7 = GN-YE, BK, BU, BN, WH, RD, GY
- No. of cores without GN-YE conductor
2 = BU, BN
3 = BK, BU, BN
4 = BK, BU, BN, WH
5 = BK, BU, BN, WH, RD
6 = BK, BU, BN, WH, RD, GY
7 = BK, BU, BN, WH, RD, GY, GN
Overall lay up of cores
Outer sheath of braided glass-fibre
impregnated with silicone

Properties

Asbestos and cadmium-free

Note

Further sizes are available on request.
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
screened analogue type:
MULTITHERM 400-ES

Application

MULTITHERM 400 cables are used for applications where extremely high connecting and ambient temperatures can arise, e. g. in iron and steel works, rolling mills, foundries, glass and ceramic factories, in furnace and power plant construction, during thermoplastic moulding processes etc. The special construction of the cable is designed for a recommended maximum temperature in damp environmentsof 220°C and for dry environments above this temperature.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

★★★★商品規格描述★★★★

Part no.	No.cores x cross-sec. mm²	Outer Ø approx. mm	Cop. weight kg / km	Max. permiss. current carrying capacity at +340°C (A)	Weight approx. kg / km	AWG-No.
51741	2 x 0,5	6,2	10,0	3,3	47,0	20
51742	3 x 0,5	6,4	15,0	3,1	50,0	20
51743	4 x 0,5	7,5	19,0	3,0	70,0	20
51744	5 x 0,5	8,0	25,0	2,9	81,0	20
51745	6 x 0,5	8,6	30,0	2,8	97,0	20
51746	7 x 0,5	8,7	34,0	2,7	105,0	20
51747	2 x 0,75	6,7	14,4	5,1	55,0	19
51748	3 x 0,75	7,0	21,6	5,1	66,0	19
51749	4 x 0,75	8,0	29,0	4,9	86,0	19
51750	5 x 0,75	8,8	36,0	4,7	103,0	19
51751	6 x 0,75	9,5	43,0	4,5	119,0	19
51752	7 x 0,75	9,7	50,0	4,4	130,0	19
51753	2 x 1	6,9	19,0	7,0	63,0	18
51754	3 x 1	7,8	29,0	6,7	82,0	18
51755	4 x 1	8,3	38,0	6,4	98,0	18
51756	5 x 1	9,1	48,0	6,2	119,0	18
51757	6 x 1	9,8	58,0	6,0	138,0	18
51758	7 x 1	10,0	67,0	5,8	150,0	18
51759	2 x 1,5	8,0	29,0	9,4	87,0	16
51760	3 x 1,5	8,3	43,0	9,0	103,0	16
51761	4 x 1,5	9,1	58,0	8,6	128,0	16
51762	5 x 1,5	10,0	72,0	8,3	150,0	16
51763	6 x 1,5	10,7	88,0	8,0	175,0	16
51764	7 x 1,5	11,0	101,0	7,8	190,0	16
51765	2 x 2,5	9,2	48,0	12,2	135,0	14
51766	3 x 2,5	9,7	72,0	11,6	153,0	14
51767	4 x 2,5	10,6	96,0	11,2	190,0	14
50060	5 x 2,5	11,8	120,0	10,8	230,0	14
50061	6 x 2,5	12,8	144,0	10,4	270,0	14
50062	7 x 2,5	13,0	168,0	10,1	295,0	14
50063	2 x 4	11,0	77,0	16,0	191,0	12
50064	3 x 4	11,4	115,0	15,3	224,0	12
50065	4 x 4	13,0	154,0	14,6	285,0	12
50066	5 x 4	14,5	192,0	14,1	360,0	12
50067	7 x 4	16,5	270,0	13,3	485,0	12
50068	3 x 6	14,2	173,0	20,0	340,0	10
50069	4 x 6	16,2	230,0	19,0	442,0	10
50070	5 x 6	17,7	288,0	18,0	535,0	10
50071	4 x 10	20,0	384,0	26,0	710,0	8
50072	4 x 16	24,5	615,0	34,0	990,0	6
