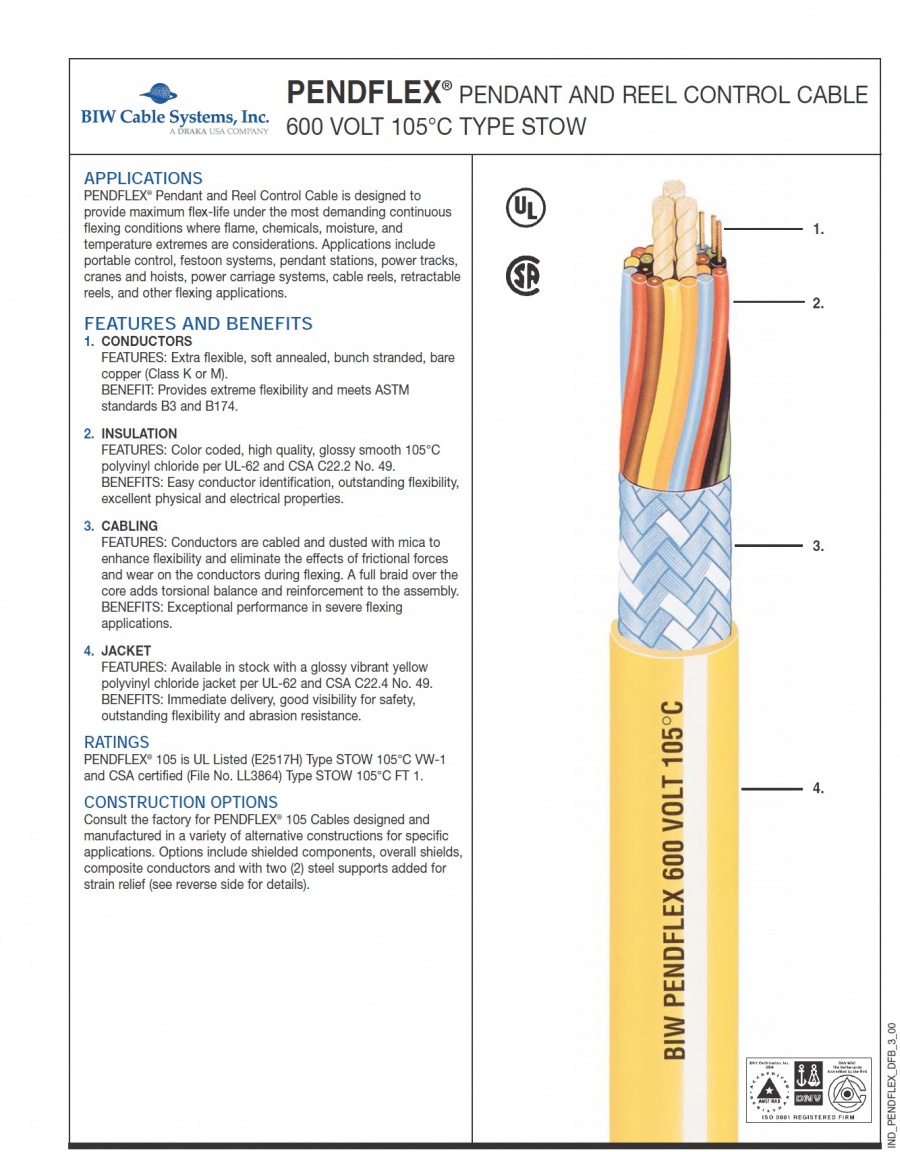

PENDFLEX® PENDANT AND REEL CONTROL CABLE
600 VOLT 105°C TYPE STOW

APPLICATIONS
PENDFLEX® Pendant and Reel Control Cable is designed to
provide maximum flex-Iife under the most demanding continuous
flexing conditions where flame, chemicals, moisture, and
temperature extremes are considerations. Applications include
portable control, festoon systems, pendant stations, power tracks,
cranes and hoists, power carriage systems, cable reels, retractable
reels, and other flexing applications.
FEATURES AND BENEFITS
1. CONDUCTORS
FEATURES: Extra flexible, soft annealed, bunch stranded, bare
copper (Class K or M).
BENEFIT: Provides extreme flexibility and meets ASTM
standards B3 and B174.
2. INSULATION
FEATURES: Color coded, high quality, glossy smooth 105°C
polyvinyl chloride per UL-62 and CSA C22.2 No. 49.
BENEFITS: Easy conductor identification, outstanding flexibility,
excellent physical and electrical properties.

3. CABLING
FEATURES: Conductors are cabled and dusted with mica to
enhance flexibility and eliminate the effects of frictional forces
and wear on the conductors during flexing. A full braid over the
core adds torsional balance and reinforcement to the assembly.
BENEFITS: Exceptional performance in severe flexing
applications.
4. JACKET
FEATURES: Available in stock with a glossy vibrant yellow
polyvinyl chloride jacket per UL-62 and CSA C22.4 No. 49.
BENEFITS: Immediate delivery, good visibility for safety,
outstanding flexibility and abrasion resistance.
RATINGS
PENDFLEX® 105 is UL Listed (E2517H) Type STOW 105°C VW-1
and CSA certified (File No. LL3864) Type STOW 105°C FT 1.
CONSTRUCTION OPTIONS
Consult the factory for PENDFLEX® 105 Cables designed and
manufactured in a variety of alternative constructions for specific
applications. Options include shielded components, overall shields,
composite conductors and with two (2) steel supports added for

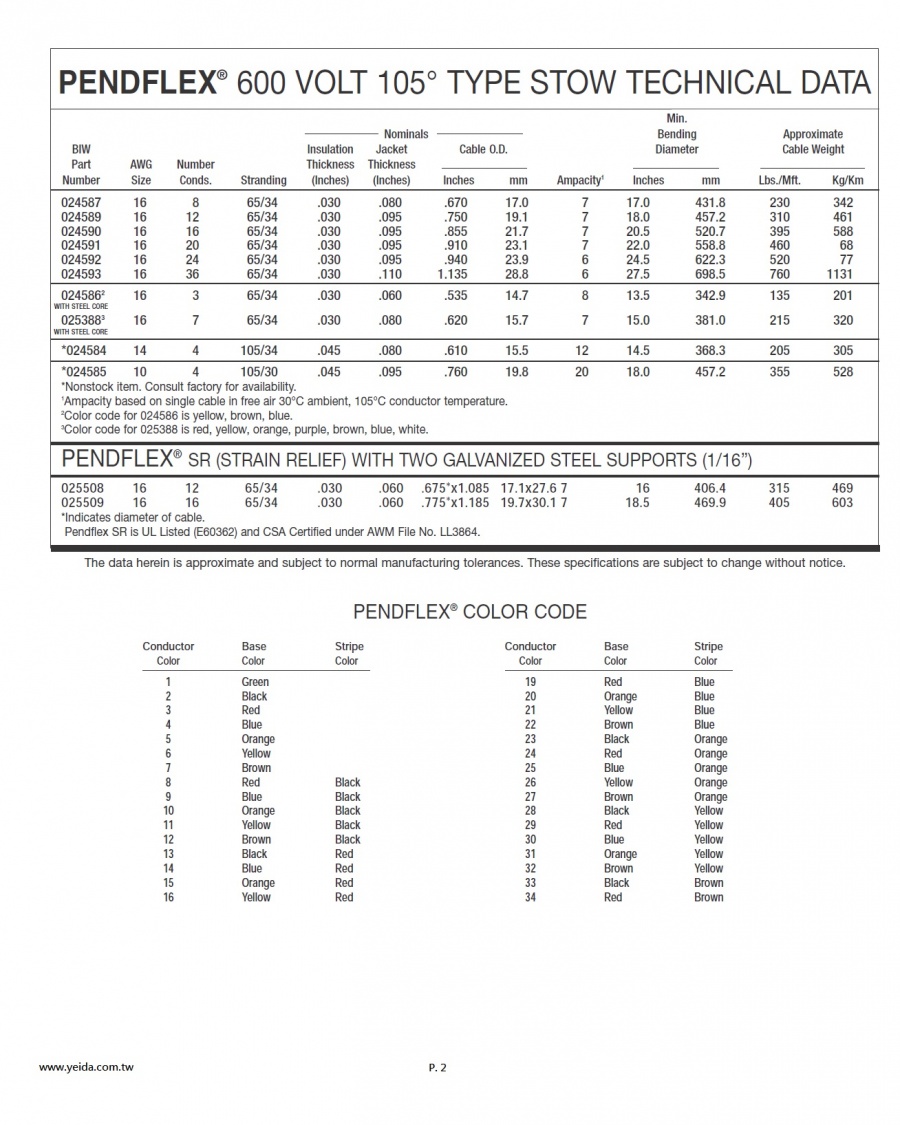

strain relief (see reverse side for details).
