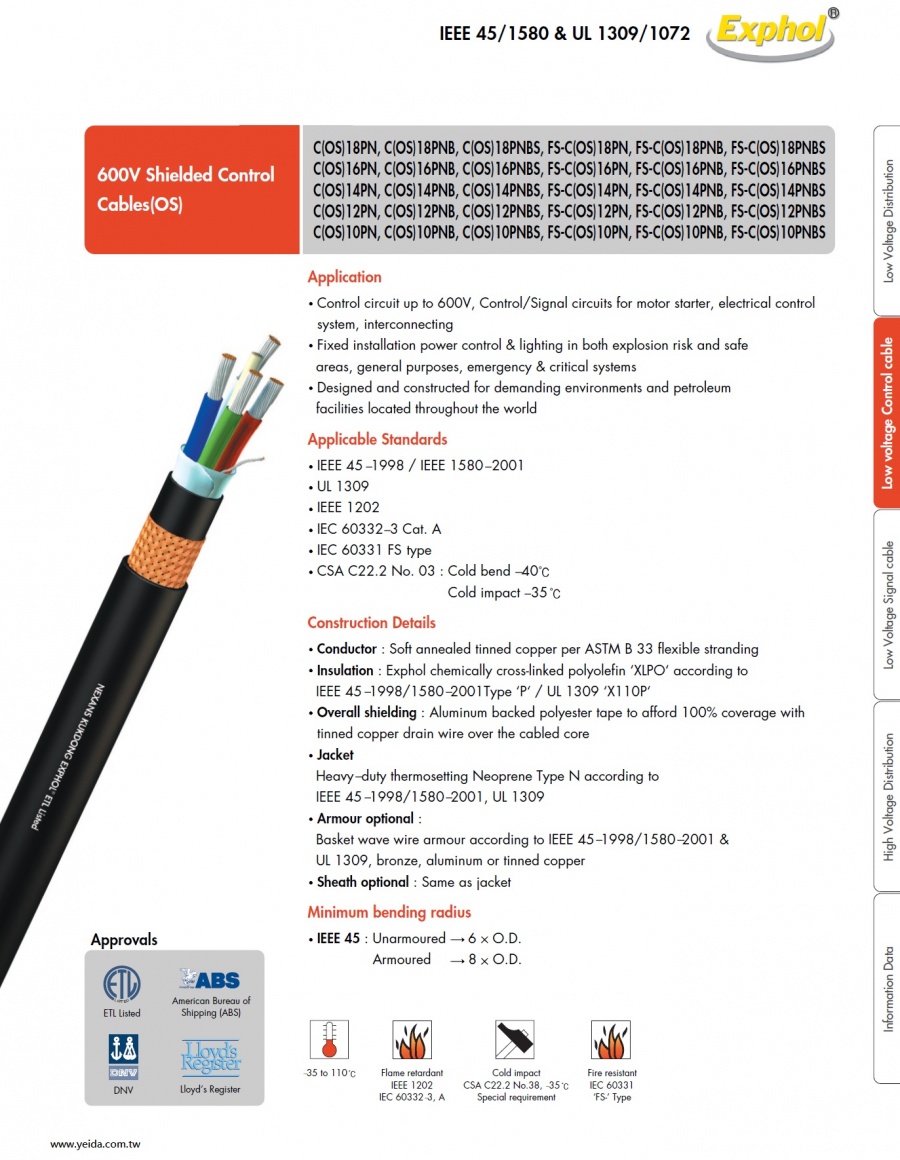

IEEE 45/1580 & UL 1309/1072

600V Shielded Control
Cables(OS)
Application
Control circuit up to 600V, Control/Signal circuits for motor starter, electrical control
system, interconnecting
Fixed installation power control & lighting in both explosion risk and safe
areas, general purposes, emergency & critical systems
Designed and constructed for demanding environments and petroleum
facilities located throughout the world
Applicable Standards
控制電路高達600V，電機啟動器控制/信號電路，電氣控制
系統，互連
固定安裝電源控制和照明同時具有爆炸風險和安全性
區域，一般用途，緊急和關鍵系統
設計和構造適用於苛刻的環境和石油
設施遍布世界各地
IEEE 45 1998 / IEEE 1580 2001
UL 1309
IEEE 1202
IEC 60332 3 Cat. A
IEC 60331 FS type
CSA C22.2 No. 03 : Cold bend 40
Cold impact 35
Construction Details
Conductor : Soft annealed tinned copper per ASTM B 33 flexible stranding
Insulation : Exphol chemically cross-linked polyolefin ‘XLPO‘ according to
IEEE 45 1998/1580 2001Type ‘P‘ / UL 1309 ‘X110P‘
Overall shielding : Aluminum backed polyester tape to afford 100% coverage with
tinned copper drain wire over the cabled core
Jacket
Heavy duty thermosetting Neoprene Type N according to
IEEE 45 1998/1580 2001, UL 1309
Armour optional :
Basket wave wire armour according to IEEE 45 1998/1580 2001 &
UL 1309, bronze, aluminum or tinned copper
Sheath optional : Same as jacket
Minimum bending radius
IEEE 45 : Unarmoured 6 O.D.
Armoured 8 O.D.
Information Data High Voltage Distribution Low Voltage Signal cable Low voltage Control cable Low Voltage Distribution
Approvals
American Bureau of
ETL Listed Shipping (ABS)
DNV
LISTED
Lloyd’s Register
35 to 110 Flame retardant
IEEE 1202
IEC 60332 3, A
Cold impact
CSA C22.2 No.38, 35
Special requirement
Fire resistant
IEC 60331
‘FS-’ Type
C(OS)18PN, C(OS)18PNB, C(OS)18PNBS, FS-C(OS)18PN, FS-C(OS)18PNB, FS-C(OS)18PNBS
C(OS)16PN, C(OS)16PNB, C(OS)16PNBS, FS-C(OS)16PN, FS-C(OS)16PNB, FS-C(OS)16PNBS
C(OS)14PN, C(OS)14PNB, C(OS)14PNBS, FS-C(OS)14PN, FS-C(OS)14PNB, FS-C(OS)14PNBS
C(OS)12PN, C(OS)12PNB, C(OS)12PNBS, FS-C(OS)12PN, FS-C(OS)12PNB, FS-C(OS)12PNBS
C(OS)10PN, C(OS)10PNB, C(OS)10PNBS, FS-C(OS)10PN, FS-C(OS)10PNB, FS-C(OS)10PNBS

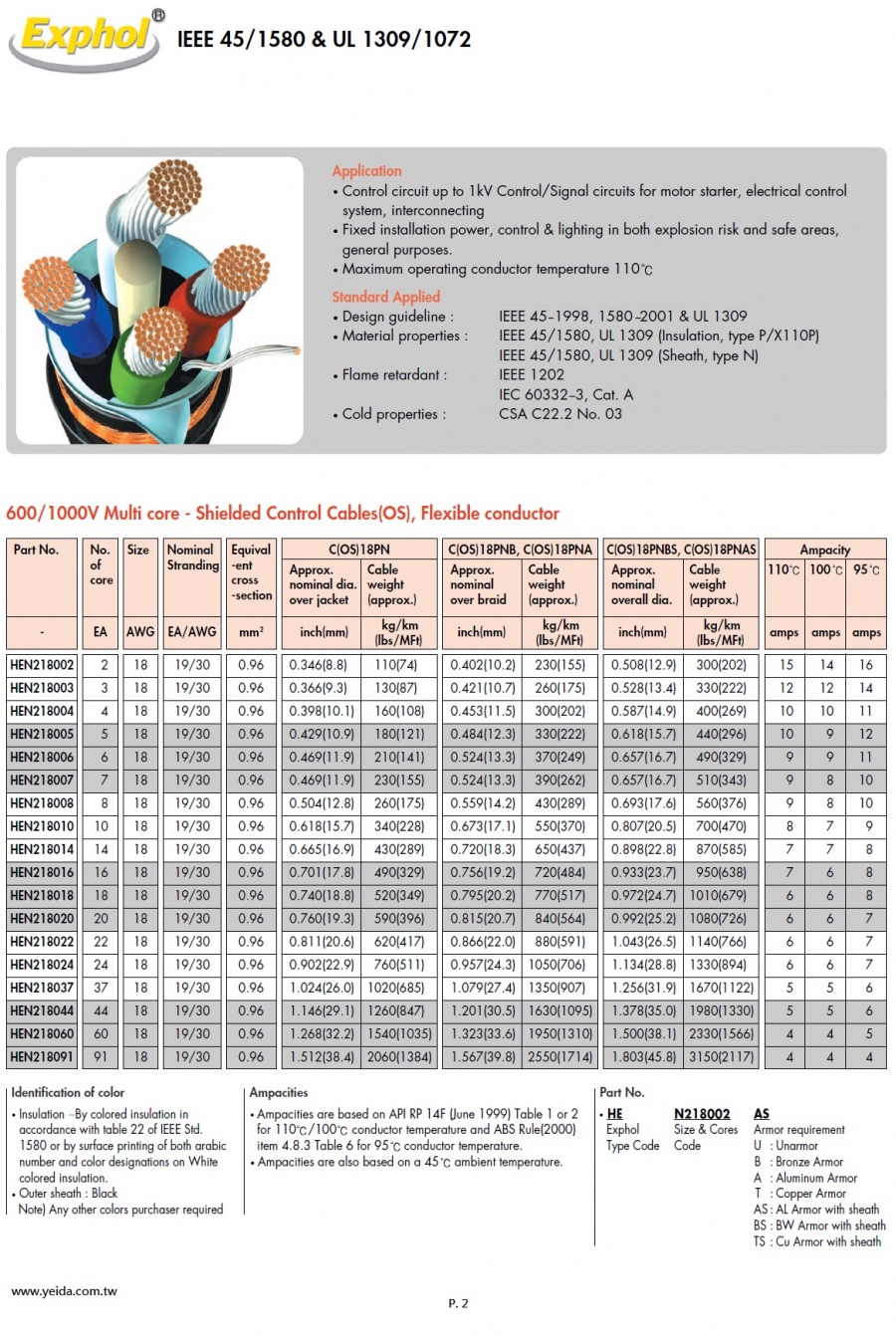

Application
Control circuit up to 1kV Control/Signal circuits for motor starter, electrical control
system, interconnecting
Fixed installation power, control & lighting in both explosion risk and safe areas,
general purposes.
Maximum operating conductor temperature 110
Standard Applied
Design guideline : IEEE 45 1998, 1580 2001 & UL 1309
Material properties : IEEE 45/1580, UL 1309 (Insulation, type P/X110P)
IEEE 45/1580, UL 1309 (Sheath, type N)
Flame retardant : IEEE 1202
IEC 60332 3, Cat. A
Cold properties : CSA C22.2 No. 03
