商品編號: A-EZDP33FWS

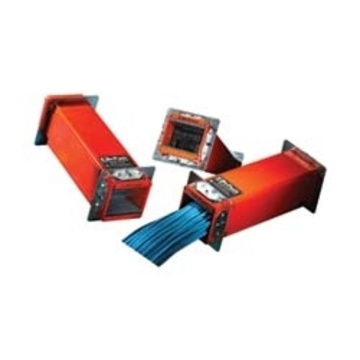

EZDP33FWS EZ-Path Series 33 fire-rated device kit Pass Through Devices 建物牆壁通道(電線等)阻火延燒裝置




SPECIFIED TECHNOLO
GIES -

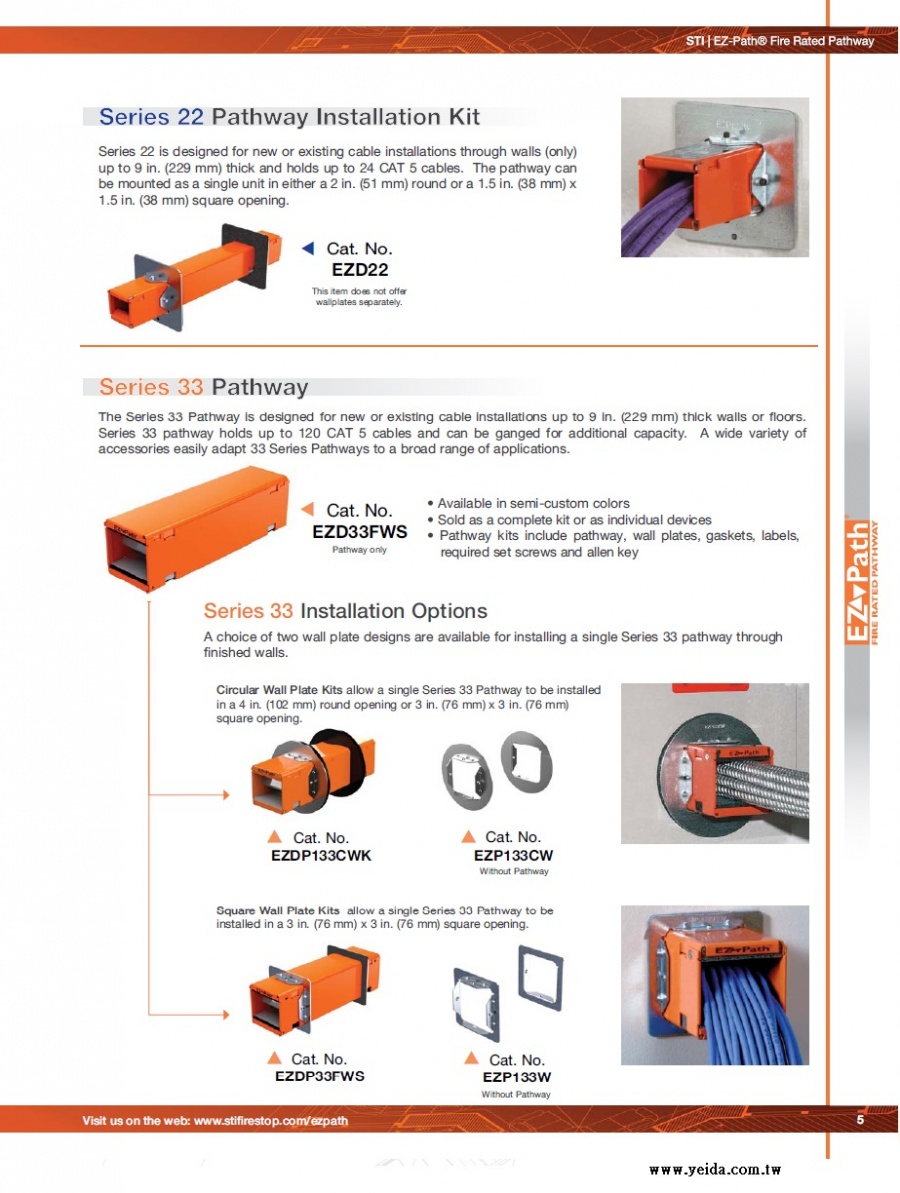

 EZ-Path Series 33 fire-rated device kit - includes one device (3 in. x 3 in. x 10.5 in.), one pair (2) single square wall plates and labels

https://www.youtube.com/user/FIRESTOPAUTHORITY

For new or existing cable applications, EZ-Path is the easy-to-install solution for penetrating fire-rated walls and floors. This low-leakage device remains fire and leakage safe whether empty or 100 percent visually filled. Cables can be added or changed without the need to remove and reinstall firestopping materials. The compact square design (available in two sizes) provides greater cable loading than a conventional sleeve. EZ-Path devices can be installed using available single-, double-, triple-, four- and seven-gang mounting plates for additional capacity, segregation of cables and cable management. EZ-Path installations offer UL Classified floor and wall systems for up to four hours. The device is safety orange and comes with wall labels for easy identification. From installation (empty) to 100 percent visual fill, it continuously remains firestopped and compliant.
