商品編號: A-EZD33FWS

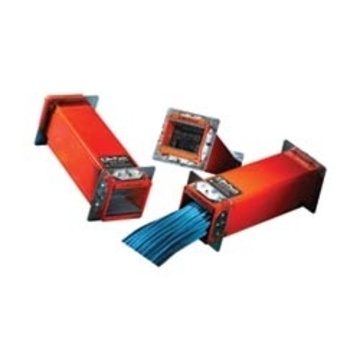

EZD33FWS EZ-Path Series 33 Pathway fire-rated Pass Through Devices 建物牆壁通道(電線等)阻火延燒裝置

SPECIFIED TECHNOLOGIES -
EZ-Path Series 33 fire-rated device. Device (3 in. x 3 in. x 10.5 in.) and labels only. Does not include wall plates
https://www.youtube.com/user/FIRESTOPAUTHORITY
The Series 33 Pathway is designed for new or existing cable installations up to 9 in. (229 mm) thick walls or floors.
Series 33 pathway holds up to 120 CAT 5 cables and can be ganged for additional capacity. A wide variety of
accessories easily adapt 33 Series Pathways to a broad range of applications.
• Available in semi-custom colors
• Sold as a complete kit or as individual devices
• Pathway kits include pathway, wall plates, gaskets, labels,
Pathway only required set screws and allen key
For new or existing cable applications, EZ-Path is the easy-to-install solution for penetrating fire-rated walls and floors. This low-leakage device remains fire and leakage safe whether empty or 100 percent visually filled. Cables can be added or changed without the need to remove and reinstall firestopping materials. The compact square design (available in two sizes) provides greater cable loading than a conventional sleeve. EZ-Path devices can be installed using available single-, double-, triple-, four- and seven-gang mounting plates for additional capacity, segregation of cables and cable management. EZ-Path installations offer UL Classified floor and wall systems for up to four hours. The device is safety orange and comes with wall labels for easy identification. From installation (empty) to 100 percent visual fill, it continuously remains firestopped and compliant.
|
