- Ideal for a range of high-speed Ethernet applications
- Small size, light weight
- Good flexibility for tight bend radius applications
- Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
- Provide stable performance to a wide bandwidth up to 100 MHz
- Enhanced shielding allows use in severe EMI environments
- Wide operating temperature rating of -55°C up to 200ºC
- Excellent resistance to aircraft fluids
- Meet FAR 25.853 flammability requirements
- Meet Boeing and Airbus smoke and toxicity requirements

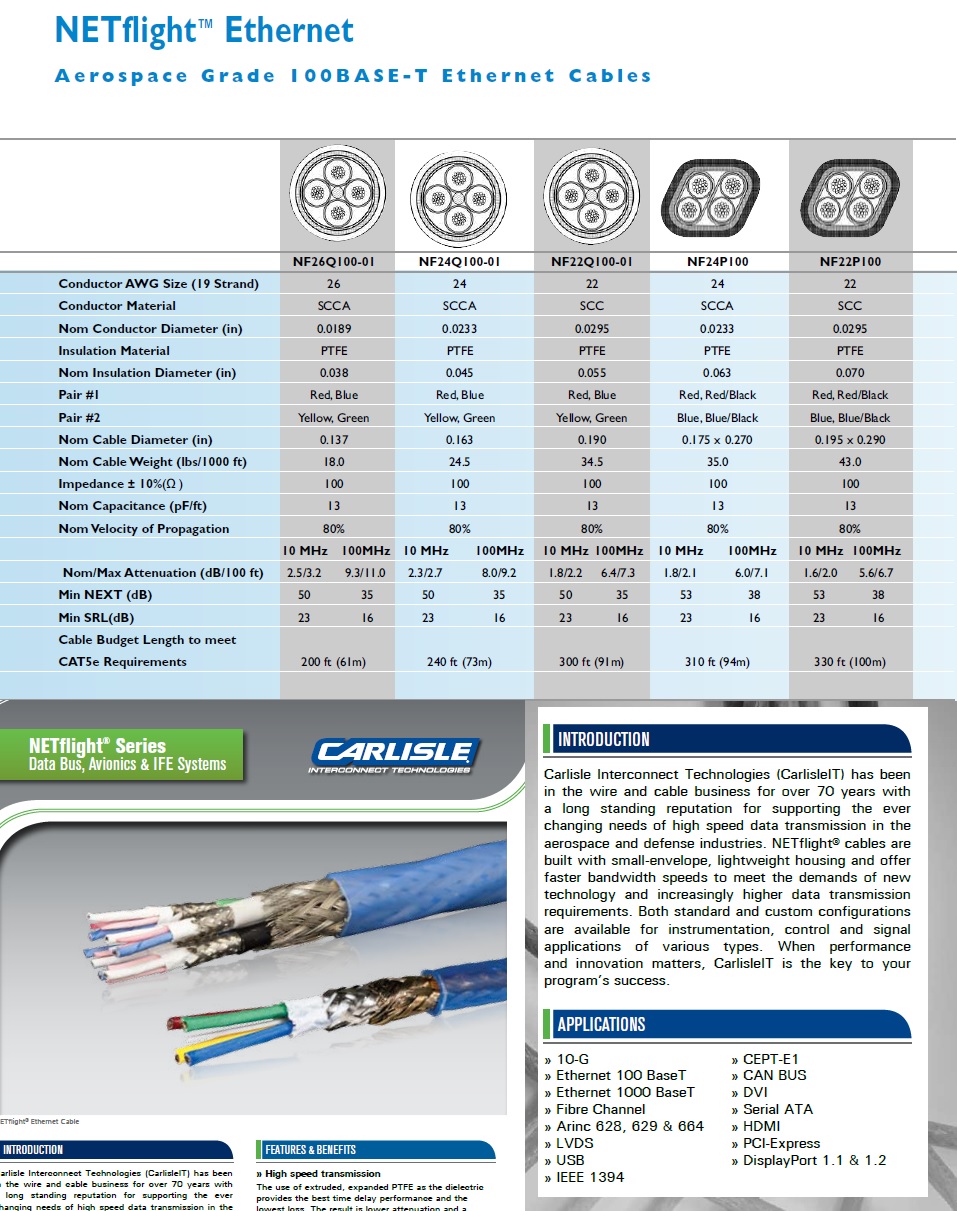

P/N |
NF26Q100-01 |
NF24Q100-01 |
NF22Q100-01 |
Conductor AWG Size |
26 |
24 |
22 |
Conductor Material |
SCCA |
SCCA |
SCC |
Conductor Diameter (in.) |
0.0189 |
0.0233 |
0.0295 |
Insulation Material |
PTFE |
PTFE |
PTFE |
Insulation Diameter (in.) |
0.038 |
0.045 |
0.055 |
Pair #1 |
Red, Blue |
Red, Blue |
Red, Blue |
Pair #2 |
Yellow, Green |
Yellow, Green |
Yellow, Green |
P/N |
NF26Q100-01 |
NF24Q100-01 |
NF22Q100-01 |
Conductor AWG Size |
26 |
24 |
22 |
Cable Diameter (in.) |
0.137 |
0.163 |
0.190 |
Cable Weight (lbs/1000ft) |
18.0 |
24.5 |
34.5 |
Impedance± 10%(Ω ) |
100 |
100 |
100 |
Capacitance (pF/ft) |
13 |
13 |
13 |
Velocity of Propagation |
80% |
80% |
80% |
Max Attenuation at 100MHz (dB/100ft) |
9.3/11.0 |
8.0/9.2 |
6.4/7.3 |
NEXT (dB) |
35 |
35 |
35 |
SRL |
16 |
16 |
16 |
