• Ideal for a range of high-speed Ethernet applications
  • Small size, light weight
  • Good flexibility for tight bend radius applications
  • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
  • Provide stable performance to a wide bandwidth up to 100 MHz
  • Enhanced shielding allows use in severe EMI environments
  • Wide operating temperature rating of -55°C up to 200ºC
  • Excellent resistance to aircraft fluids
  • Meet FAR 25.853 flammability requirements
  • Meet Boeing and Airbus smoke and toxicity requirements

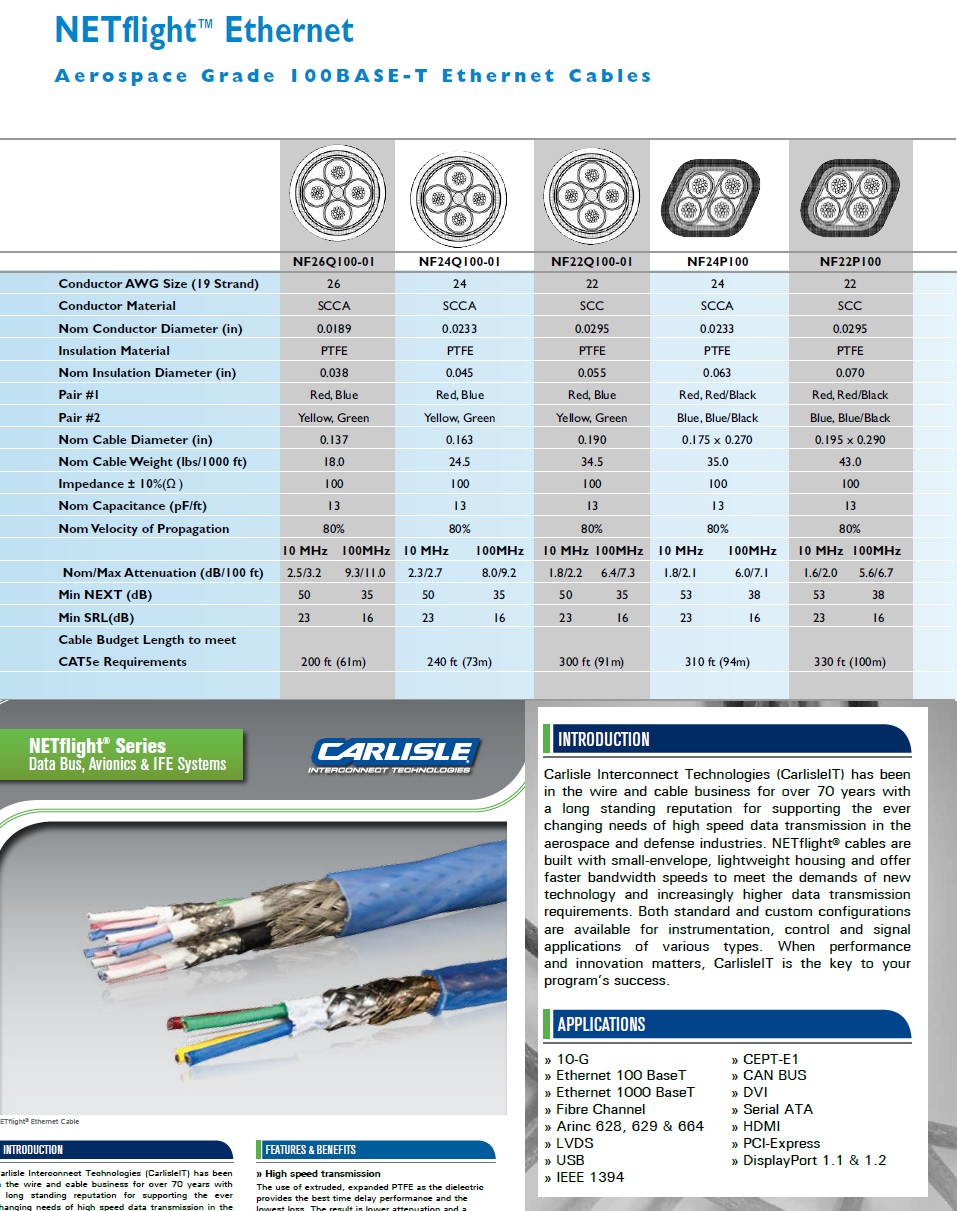

P/N

NF26Q100-01

NF24Q100-01

NF22Q100-01
Conductor AWG Size

26

24

22
Conductor Material

SCCA

SCCA

SCC
Conductor Diameter (in.)

0.0189

0.0233

0.0295
Insulation Material

PTFE

PTFE

PTFE
Insulation Diameter (in.)

0.038

0.045

0.055
Pair #1

Red, Blue

Red, Blue

Red, Blue
Pair #2

Yellow, Green

Yellow, Green

Yellow, Green
P/N

NF26Q100-01

NF24Q100-01

NF22Q100-01
Conductor AWG Size

26

24

22
Cable Diameter (in.)

0.137

0.163

0.190
Cable Weight (lbs/1000ft)

18.0

24.5

34.5
Impedance± 10%(Ω )

100

100

100
Capacitance (pF/ft)

13

13

13
Velocity of Propagation

80%

80%

80%
Max Attenuation at 100MHz (dB/100ft)

9.3/11.0

8.0/9.2

6.4/7.3
NEXT (dB)

35

35

35
SRL

16

16

16
