商品編號: A-1C15KV-EPR-PVC-S

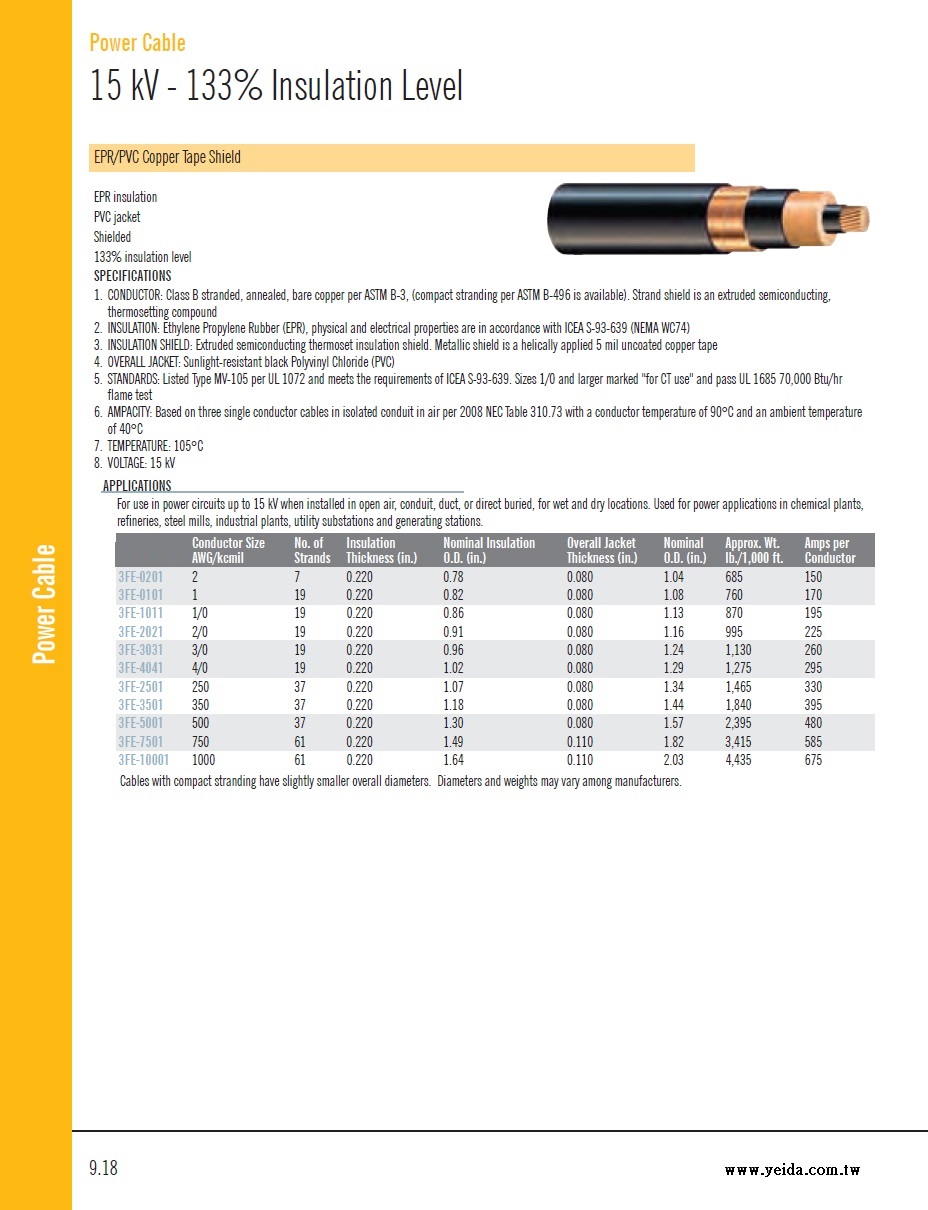

EPR-PVC 15KV COPPER TAPE SHIELD 15KV 銅帶隔離高壓電力電纜100% & 133% Insulation Level
For use in power circuits up to 15kV when installedin open air, conduit, duct, or buried direct in earth,for wet and dry locations. Used for powerapplications in chemical plants, refineries, steelmills, industrial plants, utility substations, andgenerating stations.
EPR/PVCCOPPER TAPE SHIELDEPR InsulationPVC JacketShielded100% Insulation LevelAPPLICATIONS:For use in power circuits up to 15kV when installedin open air, conduit, duct, or buried direct in earth,for wet and dry locations. Used for powerapplications in chemical plants, refineries, steelmills, industrial plants, utility substations, andgenerating stations.SPECIFICATIONS:1. CONDUCTOR: Class B stranded, annealed, bare copper per ASTM B-3. (Compact strandingper ASTM B-496 is available.) Strand shield is an extruded conducting thermosetting compound.2. INSULATION: Ethylene propylene rubber (EPR) per ICEA S-68-516 (NEMA WC8).3. INSULATION SHIELD: Over the insulation is an extruded conducting, thermosettinginsulation shield. Metallic shield is a helically applied 5 mil uncoated copper tape.4. OVERALL JACKET: Sunlight resistant, black polyvinyl chloride (PVC) per ICEA S-68-516.5. STANDARDS: Listed by UL as Type MV-105 per Standard 1072. Meets the requirements ofICEA S-68-516. Sizes 1/0 and larger marked “FOR CT USE.”6. AMPACITY: Based on three single conductor cables in isolated conduit in air per NEC Table310-73 with a conductor temperature of 90°C and an ambient temperature of 40°C.7. TEMPERATURE: 90°C8. VOLTAGE: 15kV |
|
|
|
|
