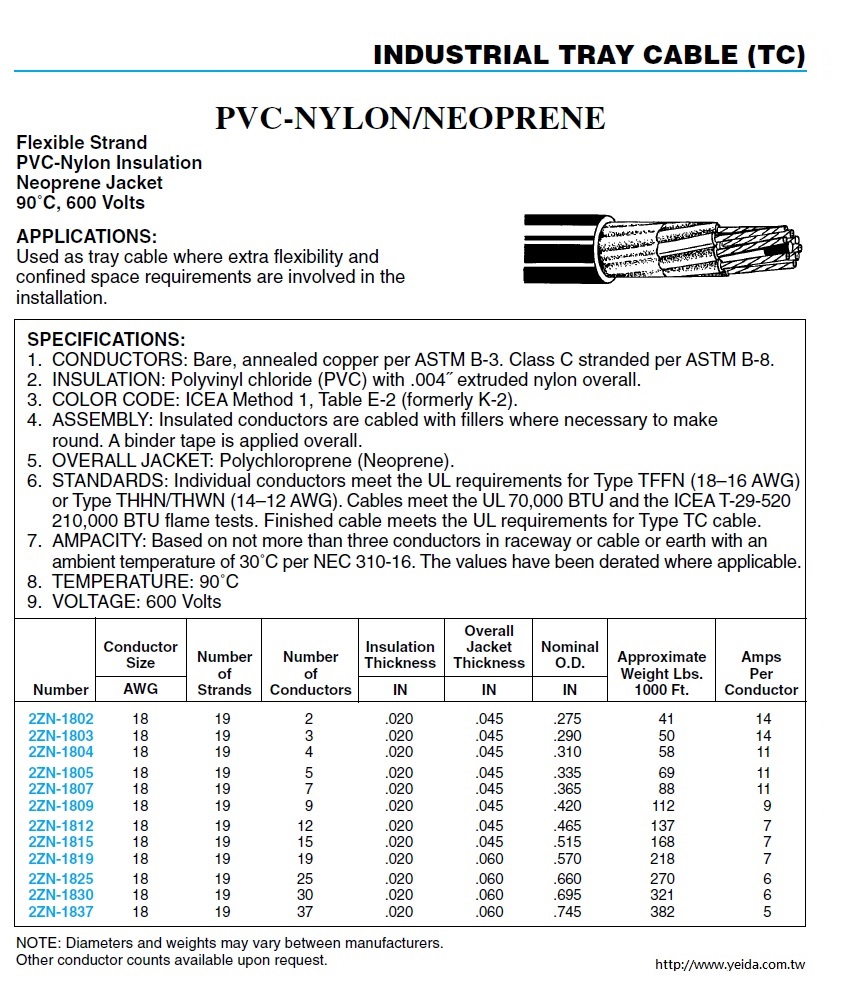

    PVC-NYLON/NEOPRENE UL PVC尼龍絕緣(NEOPRENE)鳥玻林被覆控制電纜
    看原圖
    		5257155

    商品編號: A-2ZN-1802

    2ZN-1802 PVC-NYLON/NEOPRENE UL PVC尼龍絕緣(NEOPRENE)鳥玻林被覆控制電纜

    Used as tray cable where extra flexibility andconfined space requirements are involved in theinstallation.

    Flexible Strand
    PVC-Nylon Insulation
    Neoprene Jacket
    90°C, 600 Volts
    　

    APPLICATIONS:
    Used as tray cable where extra flexibility and
    confined space requirements are involved in the
    installation.

    SPECIFICATIONS:
    1. CONDUCTORS:     Bare, annealed copper per ASTM B-3. Class C stranded per ASTM B-8.
    2. INSULATION: Polyvinyl chloride (PVC) with .004˝ extruded nylon overall.
    3. COLOR CODE: ICEA Method 1, Table E-2 (formerly K-2).
    4. ASSEMBLY: Insulated conductors are cabled with fillers where necessary to make
    round. A binder tape is applied overall.
    5. OVERALL JACKET: Polychloroprene (Neoprene).
    6. STANDARDS: Individual conductors meet the UL requirements for Type TFFN (18–16 AWG)
    or Type THHN/THWN (14–12 AWG). Cables meet the UL 70,000 BTU and the ICEA T-29-520
    210,000 BTU flame tests. Finished cable meets the UL requirements for Type TC cable.
    7. AMPACITY: Based on not more than three conductors in raceway or cable or earth with an
    ambient temperature of 30°C per NEC 310-16. The values have been derated where applicable.
    8. TEMPERATURE: 90°C
    9. VOLTAGE: 600 Volts
