商品編號: Belden-I100655
Belden-TrayOptic Heavy-duty, All-dielectric Industrial Fiber Cable OM1 (62.5/125 μm) 工業級管道型多模防水型光纖電纜線
Industrial and other harsh environment applications
Factory automation
Direct burial
Laser Optimized Fiber to handle Gigabit Ethernet light sources and expanded bandwidth
requirements. Passes IEEE 383-2003 flame test

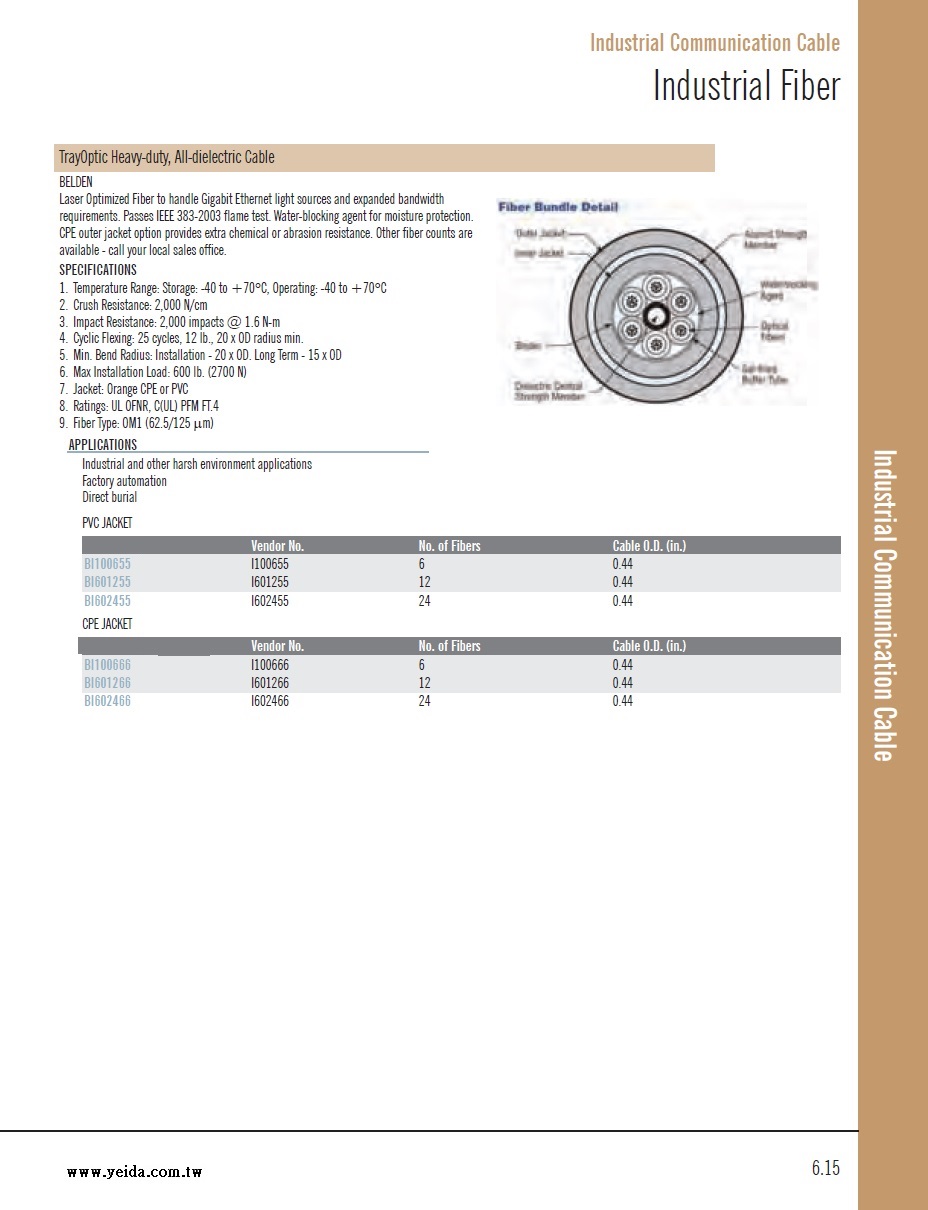

Industrial Fiber
TrayOptic Heavy-duty, All-dielectric Cable
Laser Optimized Fiber to handle Gigabit Ethernet light sources and expanded bandwidth
requirements. Passes IEEE 383-2003 flame test. Water-blocking agent for moisture protection.
CPE outer jacket option provides extra chemical or abrasion resistance. Other fiber counts are
available - call your local sales office.
SPECIFICATIONS
1. Temperature Range: Storage: -40 to +70°C, Operating: -40 to +70°C
2. Crush Resistance:2,000 N/cm
3. Impact Resistance: 2,000 impacts @ 1.6 N-m
4. Cyclic Flexing:25 cycles, 12 lb., 20 x OD radius min.
5. Min. Bend Radius: Installation - 20 x OD. Long Term - 15 x OD
6. Max Installation Load: 600 lb. (2700 N)
7. Jacket: Orange CPE or PVC
8. Ratings:UL OFNR, C(UL) PFM FT.4
9. Fiber Type: OM1 (62.5/125 μm)
APPLICATIONS
Industrial and other harsh environment applications
Factory automation
Direct burial
|
