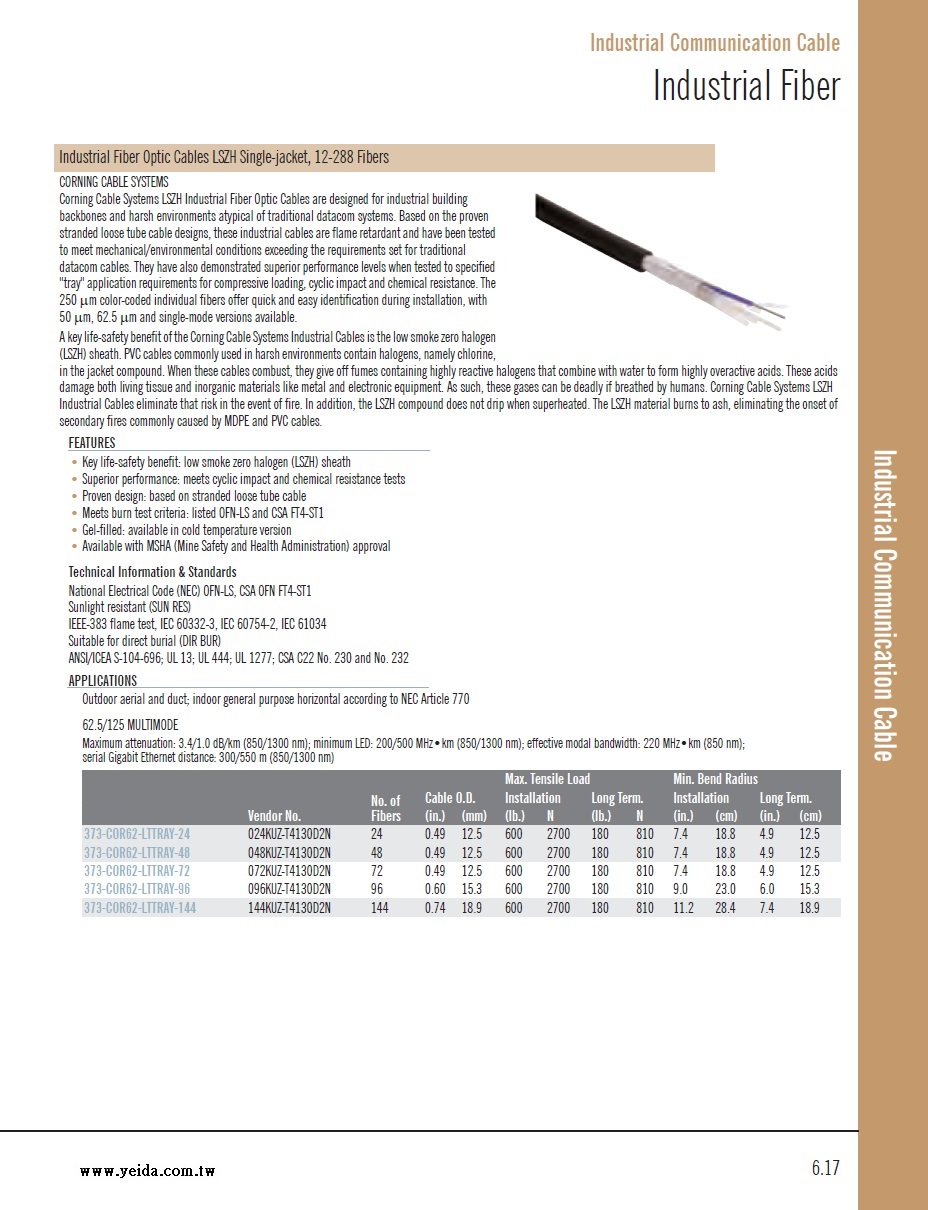

Industrial Fiber

Industrial Fiber Optic Cables LSZH Single-jacket, 12-288 Fibers

Corning Cable Systems LSZH Industrial Fiber Optic Cables are designed for industrial building
backbones and harsh environments atypical of traditional datacom systems. Based on the proven
stranded loose tube cable designs, these industrial cables are flame retardant and have been tested
to meet mechanical/environmental conditions exceeding the requirements set for traditional
datacom cables. They have also demonstrated superior performance levels when tested to specified
"tray" application requirements for compressive loading, cyclic impact and chemical resistance. The
250 μm color-coded individual fibers offer quick and easy identification during installation, with
50 μm, 62.5 μm and single-mode versions available.
　

A key life-safety benefit of the Corning Cable Systems Industrial Cables is the low smoke zero halogen
(LSZH) sheath. PVC cables commonly used in harsh environments contain halogens, namely chlorine,
in the jacket compound. When these cables combust, they give off fumes containing highly reactive halogens that combine with water to form highly overactive acids. These acids
damage both living tissue and inorganic materials like metal and electronic equipment. As such, these gases can be deadly if breathed by humans. Corning Cable Systems LSZH
Industrial Cables eliminate that risk in the event of fire. In addition, the LSZH compound does not drip when superheated. The LSZH material burns to ash, eliminating the onset of
secondary fires commonly caused by MDPE and PVC cables.
　

FEATURES
• Key life-safety benefit: low smoke zero halogen (LSZH) sheath
• Superior performance: meets cyclic impact and chemical resistance tests
• Proven design: based on stranded loose tube cable
• Meets burn test criteria: listed OFN-LS and CSA FT4-ST1
• Gel-filled: available in cold temperature version
• Available with MSHA (Mine Safety and Health Administration) approval
　

Technical Information & Standards
National Electrical Code (NEC) OFN-LS, CSA OFN FT4-ST1
Sunlight resistant (SUN RES)
IEEE-383 flame test, IEC 60332-3, IEC 60754-2, IEC 61034
Suitable for direct burial (DIR BUR)
ANSI/ICEA S-104-696; UL 13; UL 444; UL 1277; CSA C22 No. 230 and No. 232
　

APPLICATIONS
Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
　

62.5/125 MULTIMODE
Maximum attenuation: 3.4/1.0 dB/km (850/1300 nm); minimum LED: 200/500 MHz•km (850/1300 nm); effective modal bandwidth: 220 MHz•km (850 nm);
serial Gigabit Ethernet distance: 300/550 m (850/1300 nm)
