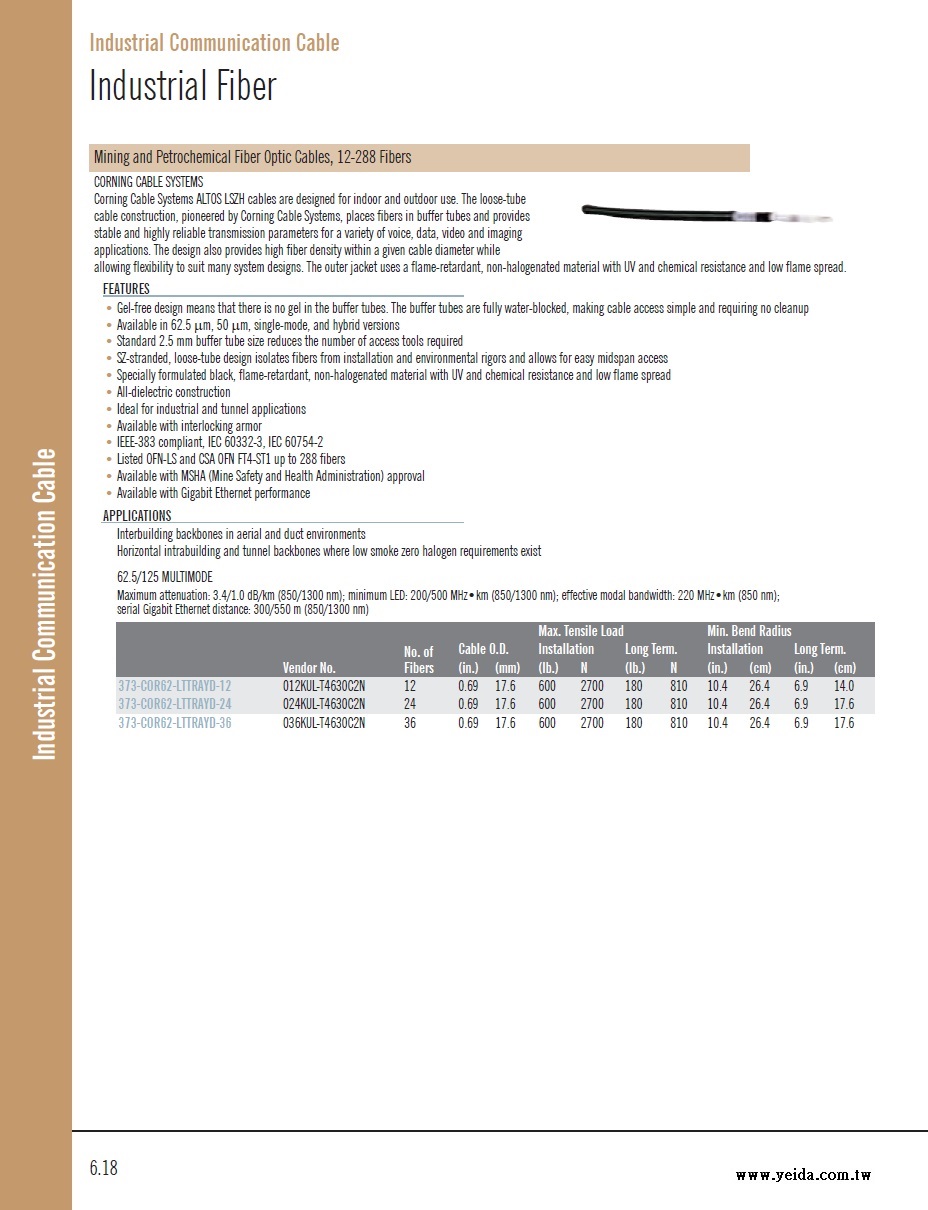

Industrial Fiber

Mining and Petrochemical Fiber Optic Cables, 12-288 Fibers

Corning Cable Systems ALTOS LSZH cables are designed for indoor and outdoor use. The loose-tube
cable construction, pioneered by Corning Cable Systems, places fibers in buffer tubes and provides
stable and highly reliable transmission parameters for a variety of voice, data, video and imaging
applications. The design also provides high fiber density within a given cable diameter while
allowing flexibility to suit many system designs. The outer jacket uses a flame-retardant, non-halogenated material with UV and chemical resistance and low flame spread.
　

FEATURES
• Gel-free design means that there is no gel in the buffer tubes. The buffer tubes are fully water-blocked, making cable access simple and requiring no cleanup
• Available in 62.5 μm, 50 μm, single-mode, and hybrid versions
• Standard 2.5 mm buffer tube size reduces the number of access tools required
• SZ-stranded, loose-tube design isolates fibers from installation and environmental rigors and allows for easy midspan access
• Specially formulated black, flame-retardant, non-halogenated material with UV and chemical resistance and low flame spread
• All-dielectric construction
• Ideal for industrial and tunnel applications
• Available with interlocking armor
• IEEE-383 compliant, IEC 60332-3, IEC 60754-2
• Listed OFN-LS and CSA OFN FT4-ST1 up to 288 fibers
• Available with MSHA (Mine Safety and Health Administration) approval
• Available with Gigabit Ethernet performance
　

APPLICATIONS
Interbuilding backbones in aerial and duct environments
Horizontal intrabuilding and tunnel backbones where low smoke zero halogen requirements exist
　

62.5/125 MULTIMODE
Maximum attenuation: 3.4/1.0 dB/km (850/1300 nm); minimum LED: 200/500 MHz•km (850/1300 nm); effective modal bandwidth: 220 MHz•km (850 nm);
serial Gigabit Ethernet distance: 300/550 m (850/1300 nm)
