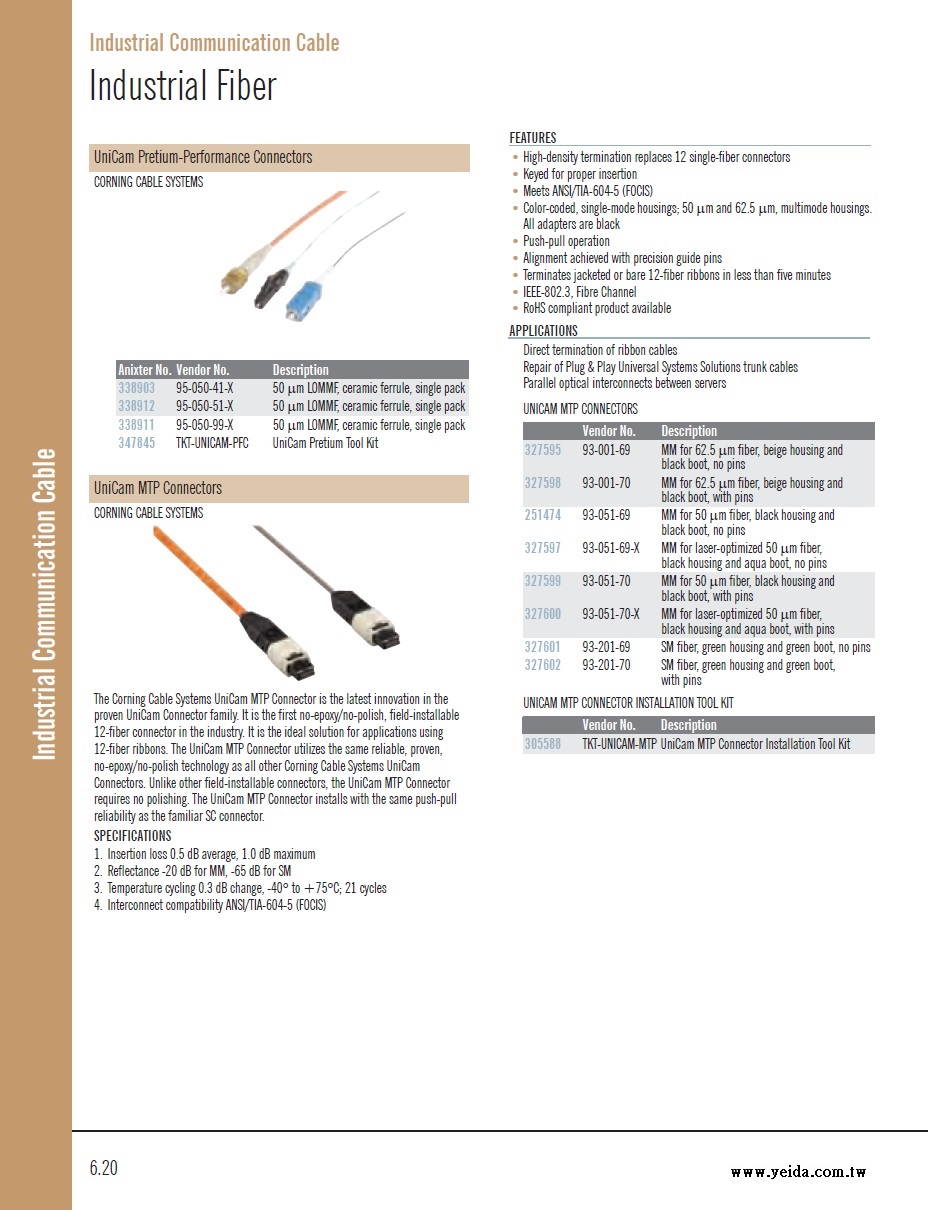

UniCam MTP Connectors

The Corning Cable Systems UniCam MTP Connector is the latest innovation in the
proven UniCam Connector family. It is the first no-epoxy/no-polish, field-installable
12-fiber connector in the industry. It is the ideal solution for applications using
12-fiber ribbons. The UniCam MTP Connector utilizes the same reliable, proven,
no-epoxy/no-polish technology as all other Corning Cable Systems UniCam
Connectors. Unlike other field-installable connectors, the UniCam MTP Connector
requires no polishing. The UniCam MTP Connector installs with the same push-pull
reliability as the familiar SC connector.
　

SPECIFICATIONS
1. Insertion loss 0.5 dB average, 1.0 dB maximum
2. Reflectance -20 dB for MM, -65 dB for SM
3. Temperature cycling 0.3 dB change, -40° to +75°C; 21 cycles
4. Interconnect compatibility ANSI/TIA-604-5 (FOCIS)

FEATURES
• High-density termination replaces 12 single-fiber connectors
• Keyed for proper insertion
• Meets ANSI/TIA-604-5 (FOCIS)
• Color-coded, single-mode housings; 50 μm and 62.5 μm, multimode housings.
　

All adapters are black
• Push-pull operation
• Alignment achieved with precision guide pins
• Terminates jacketed or bare 12-fiber ribbons in less than five minutes
• IEEE-802.3, Fibre Channel
• RoHS compliant product available
　

APPLICATIONS
Direct termination of ribbon cables
Repair of Plug & Play Universal Systems Solutions trunk cables
Parallel optical interconnects between servers
