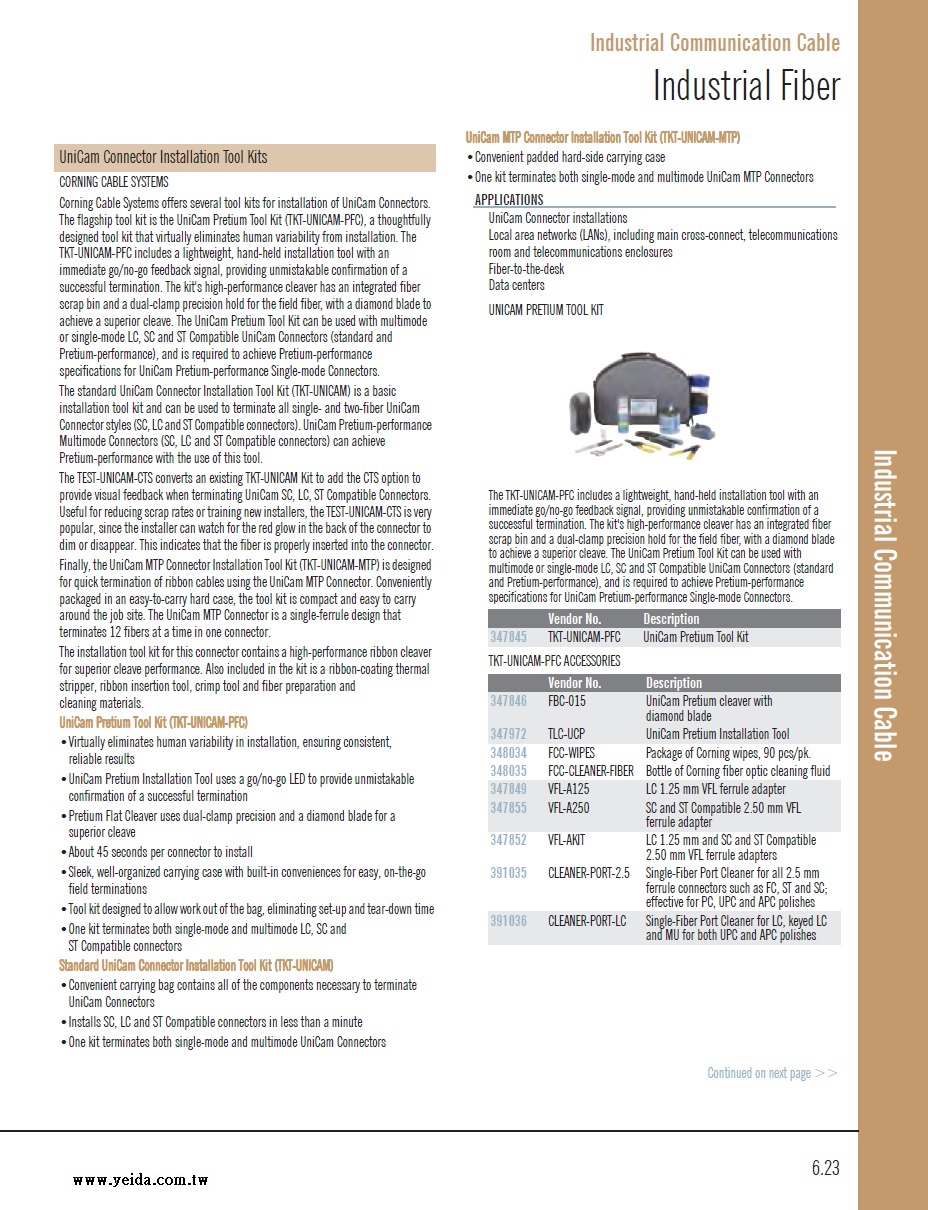

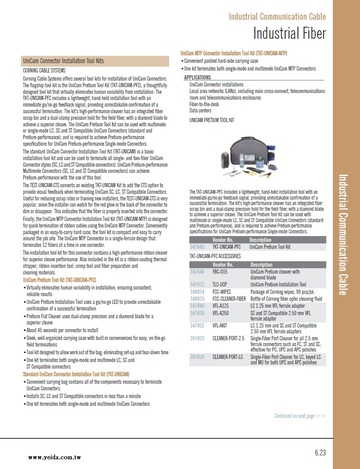

UniCam Connector Installation Tool Kits

CORNING CABLE SYSTEMS
Corning Cable Systems offers several tool kits for installation of UniCam Connectors.
The flagship tool kit is the UniCam Pretium Tool Kit (TKT-UNICAM-PFC), a thoughtfully
designed tool kit that virtually eliminates human variability from installation. The
TKT-UNICAM-PFC includes a lightweight, hand-held installation tool with an
immediate go/no-go feedback signal, providing unmistakable confirmation of a
successful termination. The kits high-performance cleaver has an integrated fiber
scrap bin and a dual-clamp precision hold for the field fiber, with a diamond blade to
achieve a superior cleave. The UniCam Pretium Tool Kit can be used with multimode
or single-mode LC, SC and ST Compatible UniCam Connectors (standard and
Pretium-performance), and is required to achieve Pretium-performance
specifications for UniCam Pretium-performance Single-mode Connectors.

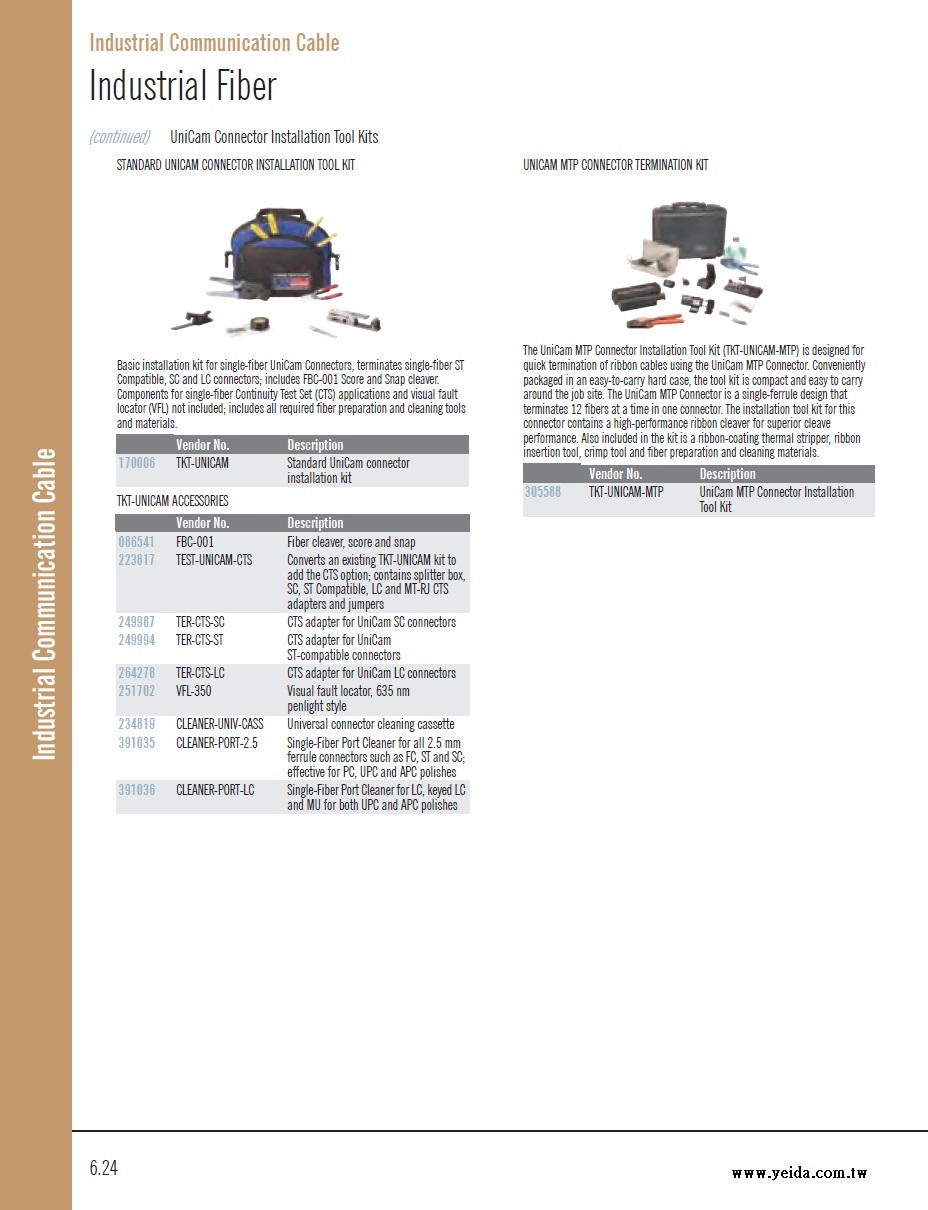

The standard UniCam Connector Installation Tool Kit (TKT-UNICAM) is a basic
installation tool kit and can be used to terminate all single- and two-fiber UniCam
Connector styles (SC, LC and ST Compatible connectors). UniCam Pretium-performance
Multimode Connectors (SC, LC and ST Compatible connectors) can achieve
Pretium-performance with the use of this tool.
The TEST-UNICAM-CTS converts an existing TKT-UNICAM Kit to add the CTS option to
provide visual feedback when terminating UniCam SC, LC, ST Compatible Connectors.
Useful for reducing scrap rates or training new installers, the TEST-UNICAM-CTS is very
popular, since the installer can watch for the red glow in the back of the connector to
dim or disappear. This indicates that the fiber is properly inserted into the connector.
Finally, the UniCam MTP Connector Installation Tool Kit (TKT-UNICAM-MTP) is designed
for quick termination of ribbon cables using the UniCam MTP Connector. Conveniently
packaged in an easy-to-carry hard case, the tool kit is compact and easy to carry
around the job site. The UniCam MTP Connector is a single-ferrule design that
terminates 12 fibers at a time in one connector.
The installation tool kit for this connector contains a high-performance ribbon cleaver
for superior cleave performance. Also included in the kit is a ribbon-coating thermal
stripper, ribbon insertion tool, crimp tool and fiber preparation and
cleaning materials.
　

UniCam Pretium Tool Kit (TKT-UNICAM-PFC)
•Virtually eliminates human variability in installation, ensuring consistent,
reliable results
•UniCam Pretium Installation Tool uses a go/no-go LED to provide unmistakable
confirmation of a successful termination
•Pretium Flat Cleaver uses dual-clamp precision and a diamond blade for a
superior cleave
•About 45 seconds per connector to install
•Sleek, well-organized carrying case with built-in conveniences for easy, on-the-go
field terminations
•Tool kit designed to allow work out of the bag, eliminating set-up and tear-down time
•One kit terminates both single-mode and multimode LC, SC and
ST Compatible connectors
Standard UniCam Connector Installation Tool Kit (TKT-UNICAM)
•Convenient carrying bag contains all of the components necessary to terminate
UniCam Connectors
•Installs SC, LC and ST Compatible connectors in less than a minute
•One kit terminates both single-mode and multimode UniCam Connectors
UniCam MTP Connector Installation Tool Kit (TKT-UNICAM-MTP)
•Convenient padded hard-side carrying case
•One kit terminates both single-mode and multimode UniCam MTP Connectors
　

APPLICATIONS
UniCam Connector installations
Local area networks (LANs), including main cross-connect, telecommunications
room and telecommunications enclosures
Fiber-to-the-desk
Data centers

The TKT-UNICAM-PFC includes a lightweight, hand-held installation tool with an
immediate go/no-go feedback signal, providing unmistakable confirmation of a
successful termination. The kits high-performance cleaver has an integrated fiber
scrap bin and a dual-clamp precision hold for the field fiber, with a diamond blade
to achieve a superior cleave. The UniCam Pretium Tool Kit can be used with
multimode or single-mode LC, SC and ST Compatible UniCam Connectors (standard
and Pretium-performance), and is required to achieve Pretium-performance
specifications for UniCam Pretium-performance Single-mode Connectors.
