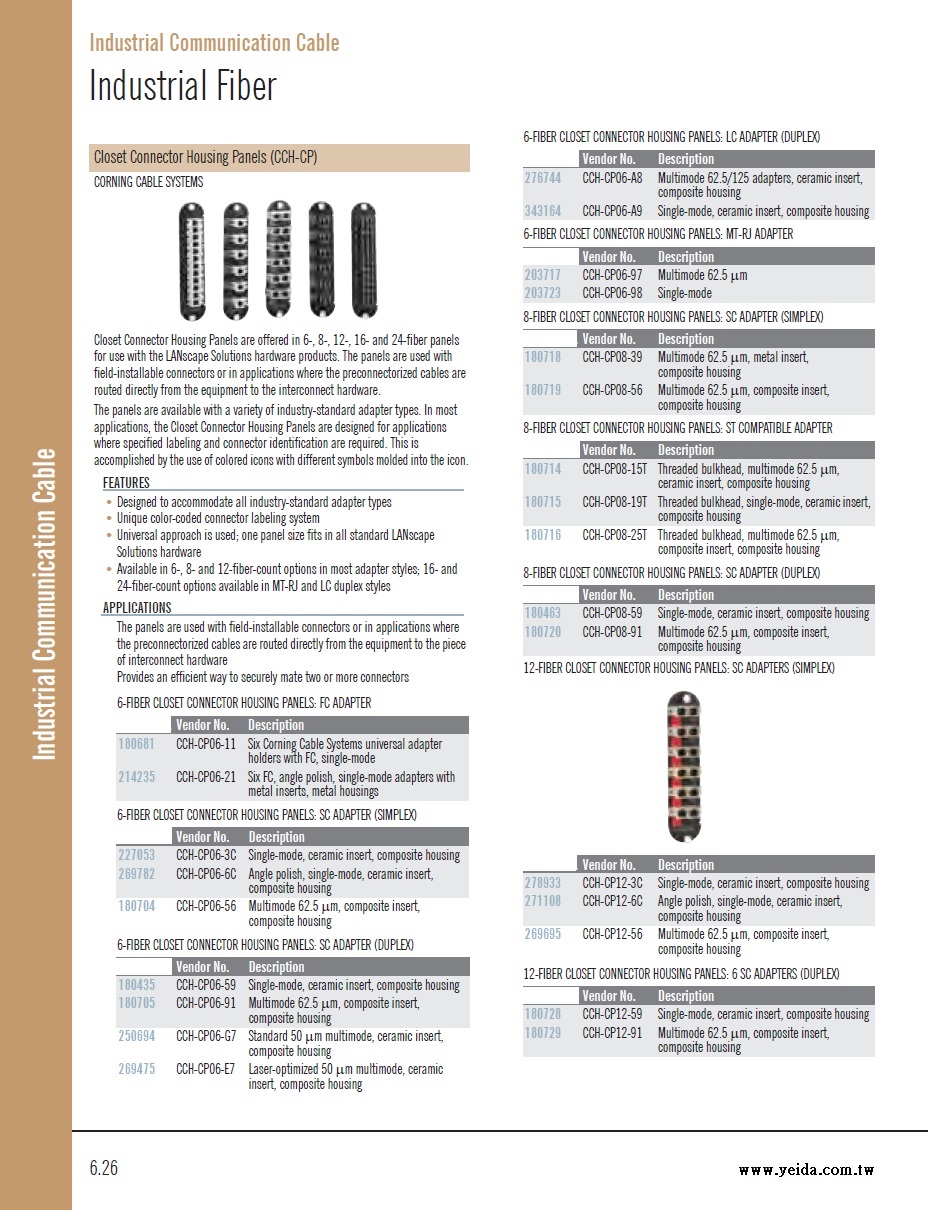

Closet Connector Housing Panels (CCH-CP)

Closet Connector Housing Panels are offered in 6-, 8-, 12-, 16- and 24-fiber panels
for use with the LANscape Solutions hardware products. The panels are used with
field-installable connectors or in applications where the preconnectorized cables are
routed directly from the equipment to the interconnect hardware.
The panels are available with a variety of industry-standard adapter types. In most
applications, the Closet Connector Housing Panels are designed for applications
where specified labeling and connector identification are required. This is
accomplished by the use of colored icons with different symbols molded into the icon.
　

FEATURES
• Designed to accommodate all industry-standard adapter types
• Unique color-coded connector labeling system
• Universal approach is used; one panel size fits in all standard LANscape
Solutions hardware
• Available in 6-, 8- and 12-fiber-count options in most adapter styles; 16- and
24-fiber-count options available in MT-RJ and LC duplex styles
　

APPLICATIONS
The panels are used with field-installable connectors or in applications where
the preconnectorized cables are routed directly from the equipment to the piece
of interconnect hardware
Provides an efficient way to securely mate two or more connectors

6-FIBER CLOSET CONNECTOR HOUSING PANELS: FC ADAPTER

6-FIBER CLOSET CONNECTOR HOUSING PANELS: SC ADAPTER (SIMPLEX)

6-FIBER CLOSET CONNECTOR HOUSING PANELS: SC ADAPTER (DUPLEX)

6-FIBER CLOSET CONNECTOR HOUSING PANELS: LC ADAPTER (DUPLEX)

6-FIBER CLOSET CONNECTOR HOUSING PANELS: MT-RJ ADAPTER

8-FIBER CLOSET CONNECTOR HOUSING PANELS: SC ADAPTER (SIMPLEX)

8-FIBER CLOSET CONNECTOR HOUSING PANELS: ST COMPATIBLE ADAPTER

8-FIBER CLOSET CONNECTOR HOUSING PANELS: SC ADAPTER (DUPLEX)

12-FIBER CLOSET CONNECTOR HOUSING PANELS: SC ADAPTERS (SIMPLEX)

12-FIBER CLOSET CONNECTOR HOUSING PANELS: 6 SC ADAPTERS (DUPLEX)
