商品編號: ANIX-UL3173

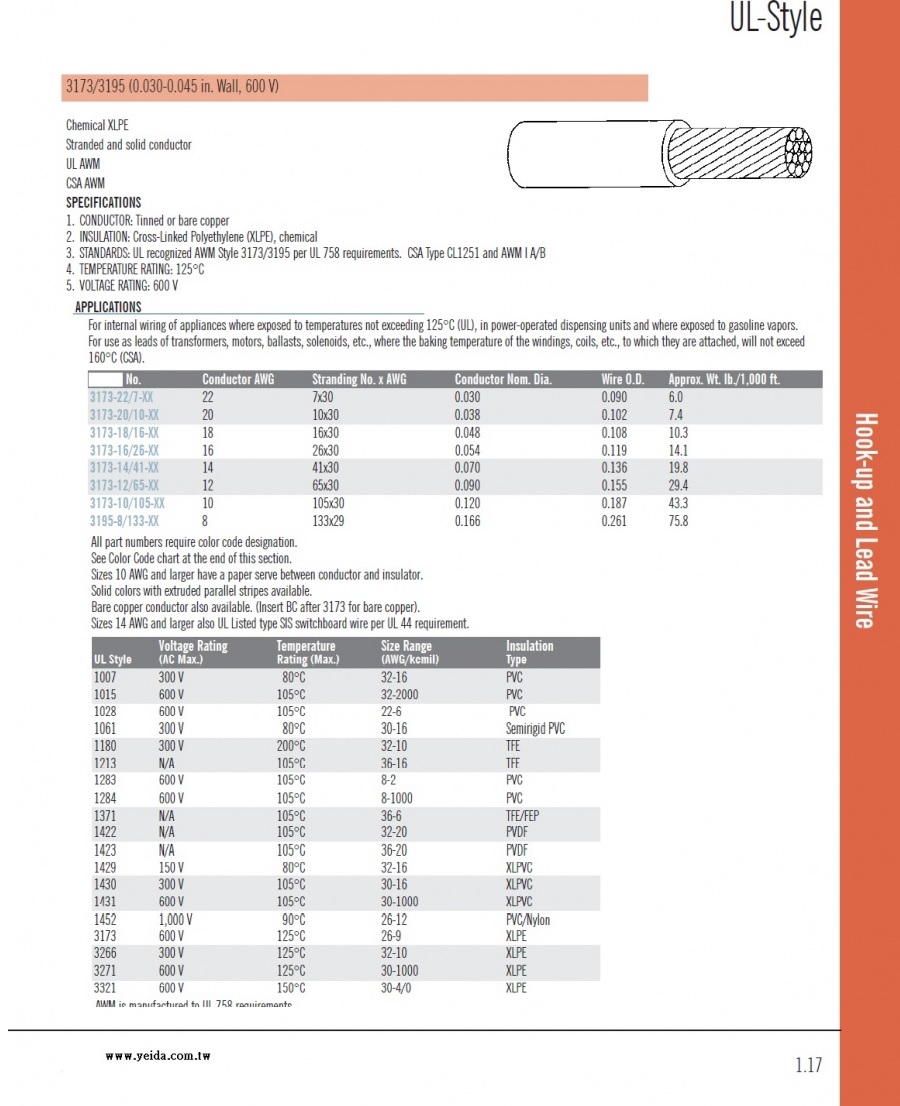

UL3173, UL3195 (0.030-0.045 in. Wall, 600 V) 125°C XLPE 電子線
Hook-up and Lead Wire
UL-Style
3173/3195 (0.030-0.045 in. Wall, 600 V)
Chemical XLPE
Stranded and solid conductor
UL AWM
CSA AWM
SPECIFICATIONS
1. CONDUCTOR: Tinned or bare copper
2. INSULATION: Cross-Linked Polyethylene (XLPE), chemical
3. STANDARDS: UL recognized AWM Style 3173/3195 per UL 758 requirements. CSA Type CL1251 and AWM I A/B
4. TEMPERATURE RATING: 125°C
5. VOLTAGE RATING: 600 V
APPLICATIONS
For internal wiring of appliances where exposed to temperatures not exceeding 125°C (UL), in power-operated dispensing units and where exposed to gasoline vapors.
For use as leads of transformers, motors, ballasts, solenoids, etc., where the baking temperature of the windings, coils, etc., to which they are attached, will not exceed
160°C (CSA).
|
