商品編號: TFK-MP-GC-XLP

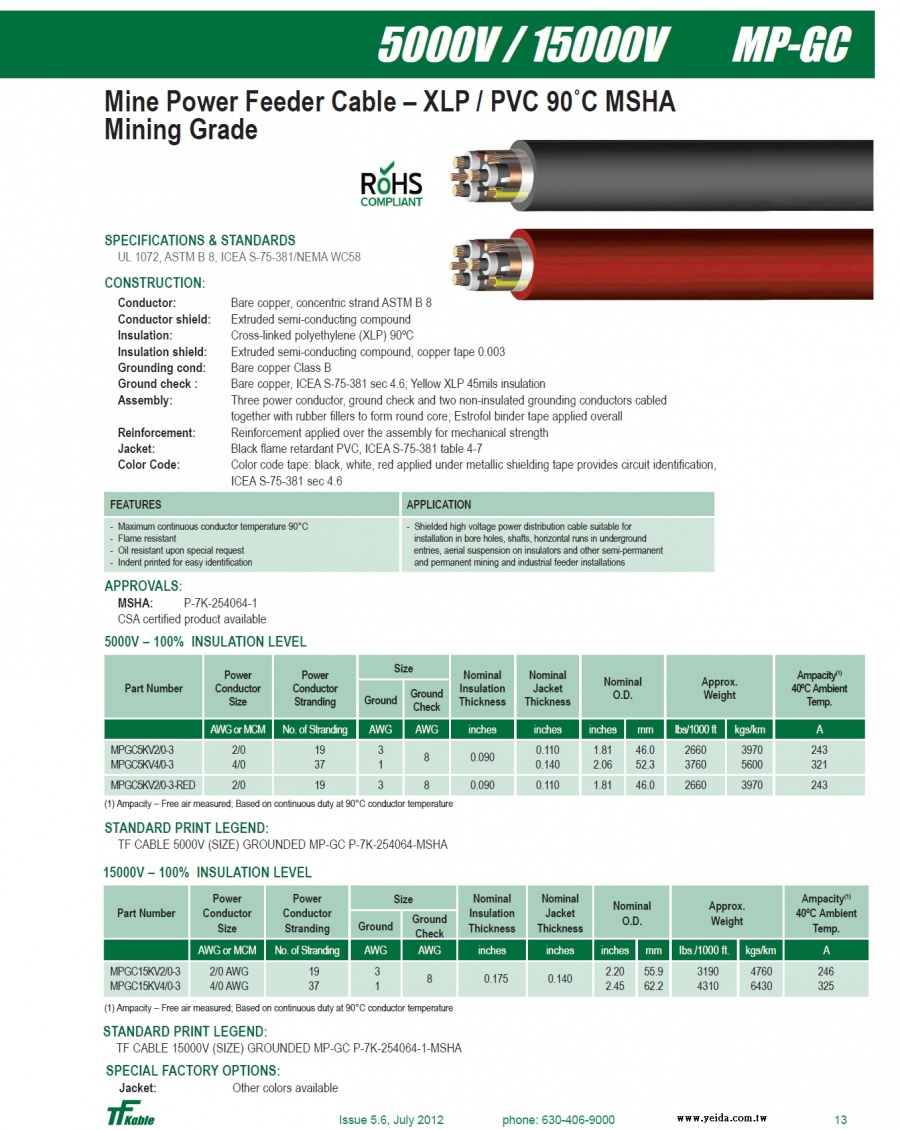

TFK-MP-GC Mine Power Feeder Cable – XLP / PVC 90˚C MSHA Mining Grade 耐高壓採礦業級電力電纜線
5000V / 15000V MP-GC
FEATURES APPLICATION
- Maximum continuous conductor temperature 90°C
- Flame resistant
- Oil resistant upon special request
- Indent printed for easy identification
- Shielded high voltage power distribution cable suitable for
installation in bore holes, shafts, horizontal runs in underground
entries, aerial suspension on insulators and other semi-permanent
and permanent mining and industrial feeder installations
SPECIFICATIONS & STANDARDS
UL 1072, ASTM B 8, ICEA S-75-381/NEMA WC58
CONSTRUCTION:
Conductor: Bare copper, concentric strand ASTM B 8
Conductor shield: Extruded semi-conducting compound
Insulation: Cross-linked polyethylene (XLP) 90ºC
Insulation shield: Extruded semi-conducting compound, copper tape 0.003
Grounding cond: Bare copper Class B
Ground check :Bare copper, ICEA S-75-381 sec 4.6; Yellow XLP 45mils insulation
Assembly:Three power conductor, ground check and two non-insulated grounding conductors cabled
together with rubber fillers to form round core; Estrofol binder tape applied overall
Reinforcement: Reinforcement applied over the assembly for mechanical strength
Jacket: Black flame retardant PVC, ICEA S-75-381 table 4-7
Color Code: Color code tape: black, white, red applied under metallic shielding tape provides circuit identification,
ICEA S-75-381 sec 4.6
APPROVALS:
MSHA: P-7K-254064-1
CSA certified product available
SPECIAL FACTORY OPTIONS:
Jacket: Other colors available
Mine Power Feeder Cable – XLP / PVC 90˚C MSHA
Mining Grade
FEATURES APPLICATION
- Maximum continuous conductor temperature 90°C
- Flame resistant
- Oil resistant upon special request
- Indent printed for easy identification
- Shielded high voltage power distribution cable suitable for
installation in bore holes, shafts, horizontal runs in underground
entries, aerial suspension on insulators and other semi-permanent
and permanent mining and industrial feeder installations
STANDARD PRINT LEGEND:
TF CABLE 5000V (SIZE) GROUNDED MP-GC P-7K-254064-MSHA
STANDARD PRINT LEGEND:
TF CABLE 15000V (SIZE) GROUNDED MP-GC P-7K-254064-1-MSHA
|
