    Power Cable -40˚C +90˚C UL CSA MSHA Extra Hard Usage - High Grade Mechanical Service
    看原圖

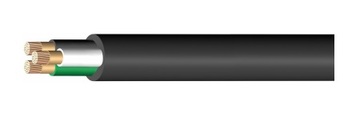

    		TFK-SOOW600V

    Power Cable -40˚C +90˚C UL CSA MSHA Extra Hard Usage - High Grade Mechanical Service

    SPECIFICATIONS & STANDARDS
    UL 62/CSA-C 22.2 No 49

    CONSTRUCTION: Conductors: Stranded bare copper, ASTM B-173 and UL 62
    Separator: Paper tape between conductor and insulation
    Insulation: EPR compound, 90˚C compound class 3, table 8, UL 62
    Assembly: Insulated conductors cabled together with integral filled or rubber fillers
    Separator: Talc for 8-2 AWG
    Jacket: Black CPE 90˚C compound class 1.4, UL 62, table 15
    Color code: ICEA S-58-679, Method 1, table 1; 2/c, 3/c - black, white, green; 4/c, 5/c - black, white, red, green, orange

    FEATURES

    - Excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water
    - Flame test meets VW-1, FT2, and MSHA
    - Temperature range: -40o C to +90o C - Suitable for shallow water immersion
    - NEC Article 700 permitted use for specific applications.
    - NFPA 70 permitted use in Hazardous Locations Classes I, II, III, Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 140.

     APPLICATION

    - Industrial and processing equipment, cranes and hoists, track systems, tools, construction equipment, motors and associated machinery, garage portable lights, battery charger and equipment exposed to oils, solvents, flame, moisture and other electrical equipment

    APPROVALS:
    UL: E123366
    CSA: 1534535 (LL 103932)
    MSHA: P-7K-254013

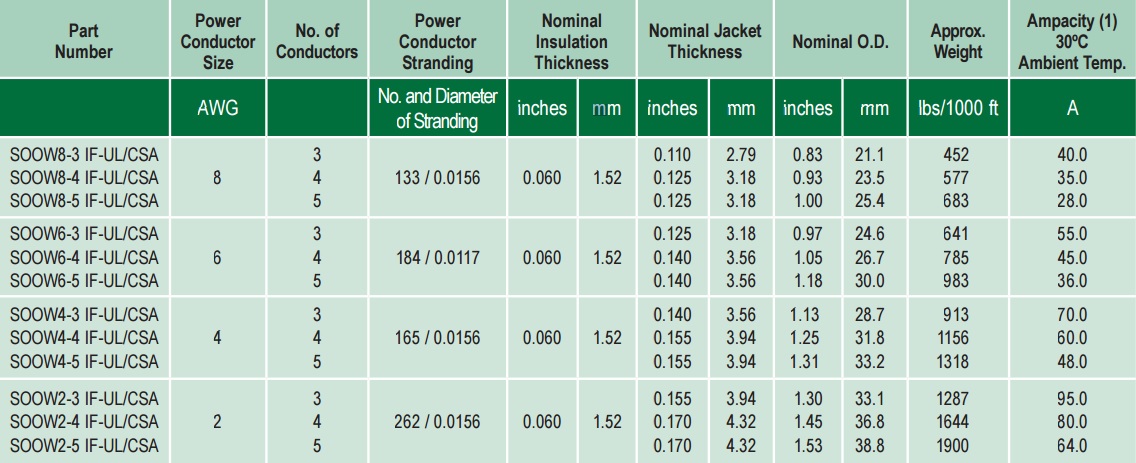

    Part Number
    SOOW8-3 IF-UL/CSA
    SOOW8-4 IF-UL/CSA
    SOOW8-5 IF-UL/CSA
    SOOW6-3 IF-UL/CSA
    SOOW6-4 IF-UL/CSA
    SOOW6-5 IF-UL/CSA
    SOOW4-3 IF-UL/CSA
    SOOW4-4 IF-UL/CSA
    SOOW4-5 IF-UL/CSA
    SOOW2-3 IF-UL/CSA
    SOOW2-4 IF-UL/CSA
    SOOW2-5 IF-UL/CSA

    STANDARD PRINT LEGEND: TF CABLE FLEXTREME (COND) (SIZE) (mm2 ) (UL) SOOW E123366 90C SUN & WATER RES 600V CSA SOOW 90C LL 103932 FT2 -40C P-7K-254013 MSHA

    SPECIAL FACTORY OPTIONS: Color jacket: Yellow, Orange SOOW/H07: European harmonized dual rating
