CCI-77304 22/2 PAIR STRANDED EACH PAIR SHIELDED CL3P/CMP FT6 PLENUM CABLE Awg22 x 2P 低煙PVC 個別隔離 影音 醫院護理呼叫系統 安全監控用線
|
 |
 |
CMP Plenum Multi-Pair Electronic Wire (EPS—Each pair Shielded)
Features:
- Low Smoke PVC jacket
- Ripcord and Sequential Footage Marking
- Each pair individually shielded with Aluminum Mylar overall shield with tinned copper drain wire
Applications:
- Power limited circuit and communication cable for plenum applications.
- Remote Control, Signaling, Security Systems, Communications, Intercom/P.A. Systems, Sound/Audio, and Nurse Call
Industry Approvals:
- UL Type CMP/MPP/CL3P / cUL Type CMP/FT6
- NEC Article 725 & 800
- California State Fire Marshall
|

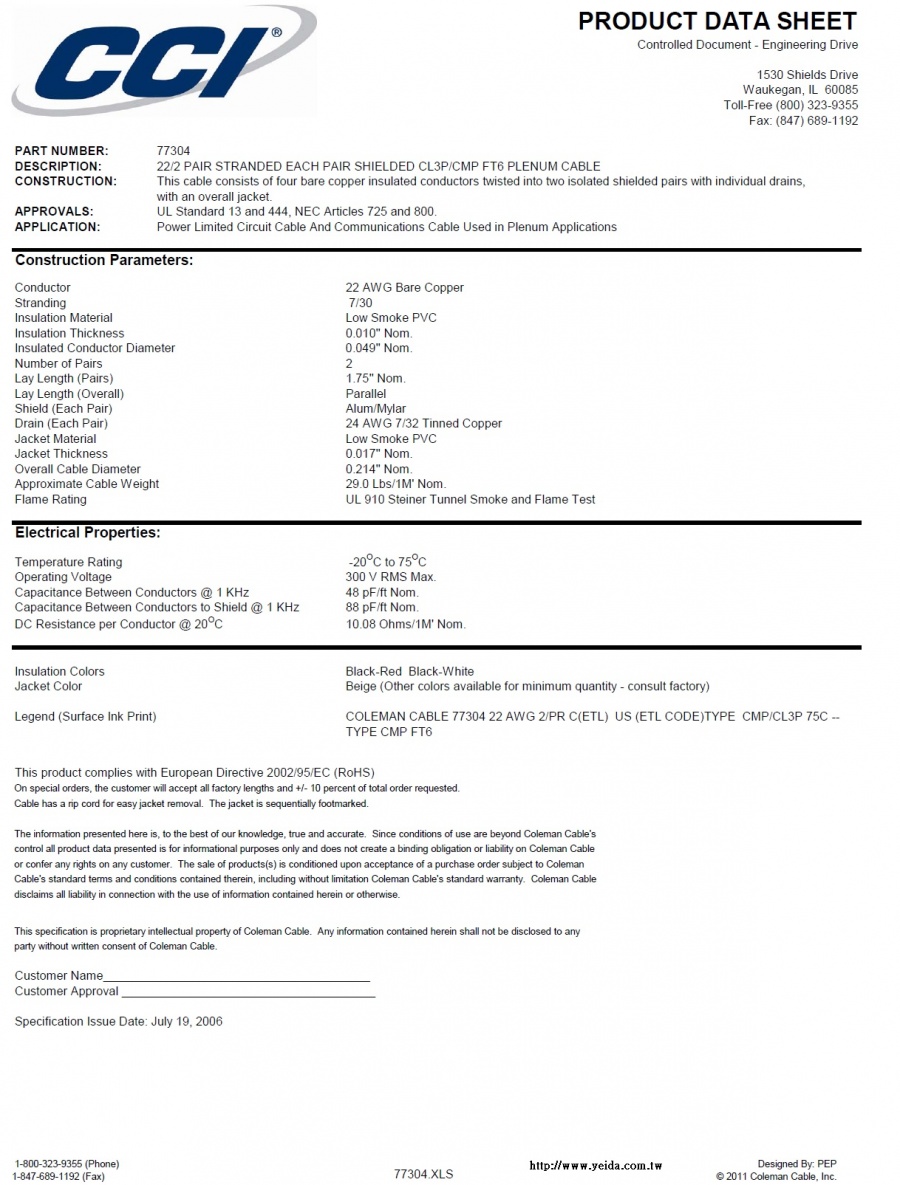

PART NUMBER: 77304
DESCRIPTION: 22/2 PAIR STRANDED EACH PAIR SHIELDED CL3P/CMP FT6 PLENUM CABLE
CONSTRUCTION: This cable consists of four bare copper insulated conductors twisted into two isolated shielded pairs with individual drains,
with an overall jacket.
APPROVALS:UL Standard 13 and 444, NEC Articles 725 and 800.
APPLICATION: Power Limited Circuit Cable And Communications Cable Used in Plenum Applications
Construction Parameters:
Conductor 22 AWG Bare Copper
Stranding 7/30
Insulation Material Low Smoke PVC
Insulation Thickness0.010 Nom.
Insulated Conductor Diameter 0.049 Nom.
Number of Pairs 2
Lay Length (Pairs) 1.75 Nom.
Lay Length (Overall) Parallel
Shield(Each Pair) Alum/Mylar
Drain (Each Pair) 24 AWG 7/32 Tinned Copper
Jacket Material Low Smoke PVC
Jacket Thickness 0.017 Nom.
Overall Cable Diameter 0.214 Nom.
Approximate Cable Weight 29.0 Lbs/1M Nom.
Flame Rating UL 910 Steiner Tunnel Smoke and Flame Test
Electrical Properties:
Temperature Rating -20OC to 75OC
Operating Voltage 300 V RMS Max.
Capacitance Between Conductors @ 1 KHz 48 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 88 pF/ft Nom.
DC Resistance per Conductor @ 20OC 10.08 Ohms/1M Nom.
Insulation Colors Black-Red Black-White
Jacket Color Beige (Other colors available for minimum quantity - consult factory)
Legend (Surface Ink Print) COLEMAN CABLE 77304 22 AWG 2/PR C(ETL) US (ETL CODE)TYPE CMP/CL3P 75C --
TYPE CMP FT6
|
