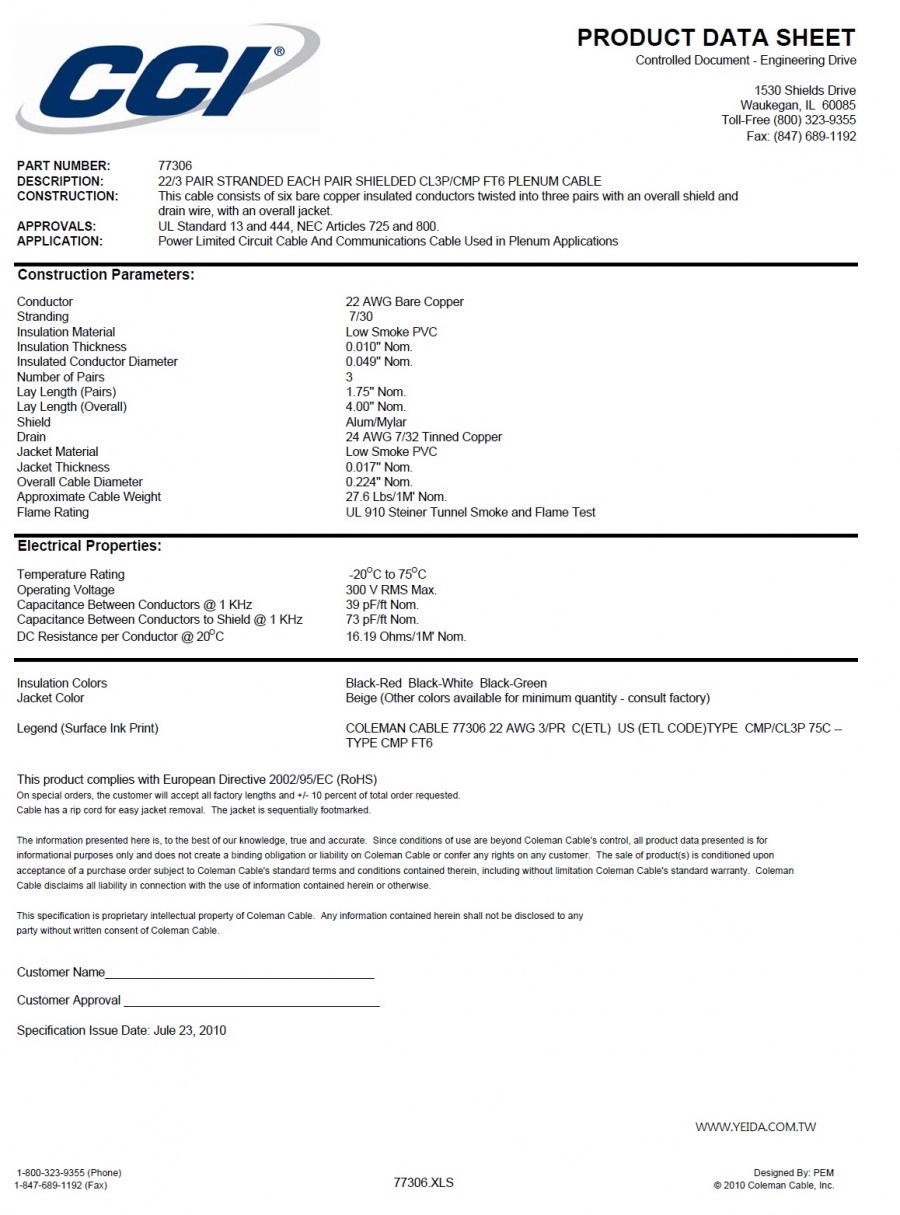

PART NUMBER: 77306

DESCRIPTION: 22/3 PAIR STRANDED EACH PAIR SHIELDED CL3P/CMP FT6 PLENUM CABLE

CONSTRUCTION: This cable consists of six bare copper insulated conductors twisted into three pairs with an overall shield and drain wire, with an overall jacket.

APPROVALS: UL Standard 13 and 444, NEC Articles 725 and 800.

APPLICATION: Power Limited Circuit Cable And Communications Cable Used in Plenum Applications

Construction Parameters:

Conductor 22 AWG Bare Copper

Stranding 7/30

Insulation Material Low Smoke PVC

Insulation Thickness 0.010 Nom.

Insulated Conductor Diameter 0.049 Nom.

Number of Pairs 3

Lay Length (Pairs) 1.75 Nom.

Lay Length (Overall) 4.00 Nom.

Shield Alum/Mylar

Drain 24 AWG 7/32 Tinned Copper

Jacket Material Low Smoke PVC

Jacket Thickness 0.017 Nom.

Overall Cable Diameter 0.224 Nom.

Approximate Cable Weight 27.6 Lbs/1M Nom.

Flame Rating UL 910 Steiner Tunnel Smoke and Flame Test

Electrical Properties:

Temperature Rating -20OC to 75OC

Operating Voltage 300 V RMS Max.

Capacitance Between Conductors @ 1 KHz 39 pF/ft Nom.

Capacitance Between Conductors to Shield @ 1 KHz 73 pF/ft Nom.

DC Resistance per Conductor @ 20OC 16.19 Ohms/1M Nom.

Insulation Colors Black-Red Black-White Black-Green

Jacket Color Beige (Other colors available for minimum quantity - consult factory)
