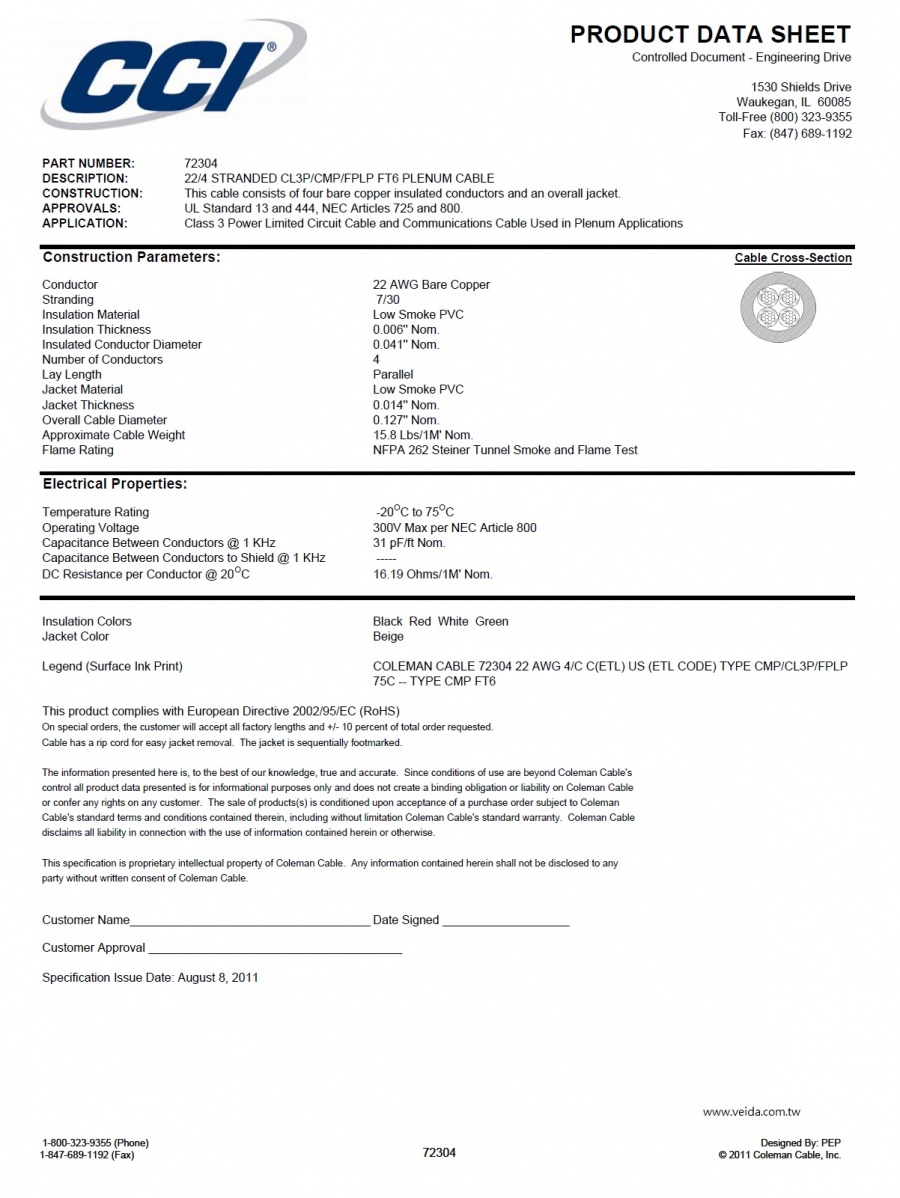

PART NUMBER: 72304

DESCRIPTION: 22/4 STRANDED CL3P/CMP/FPLP FT6 PLENUM CABLE

CONSTRUCTION: This cable consists of four bare copper insulated conductors and an overall jacket.

APPROVALS: UL Standard 13 and 444, NEC Articles 725 and 800.

APPLICATION: Class 3 Power Limited Circuit Cable and Communications Cable Used in Plenum Applications

Construction Parameters:

Conductor: 22 AWG Bare Copper

Stranding: 7/30

Insulation Material: Low Smoke PVC

Insulation Thickness: 0.006 Nom.

Insulated Conductor Diameter: 0.041 Nom.

Number of Conductors: 4

Lay Length: Parallel

Jacket Material Low Smoke:  PVC

Jacket Thickness: 0.014 Nom.

Overall Cable Diameter: 0.127 Nom.

Approximate Cable Weight: 15.8 Lbs/1M Nom.

Flame Rating: NFPA 262 Steiner Tunnel Smoke and Flame Test

Electrical Properties:

Temperature Rating: -20OC to 75OC

Operating Voltage: 300V Max per NEC Article 800

Capacitance Between Conductors: @ 1 KHz 31 pF/ft Nom.

Capacitance Between Conductors to Shield @ 1 KHz: -----

DC Resistance per Conductor @ 20OC: 16.19 Ohms/1M Nom.

Insulation Colors: Black Red White Green

Jacket Color: Beige
