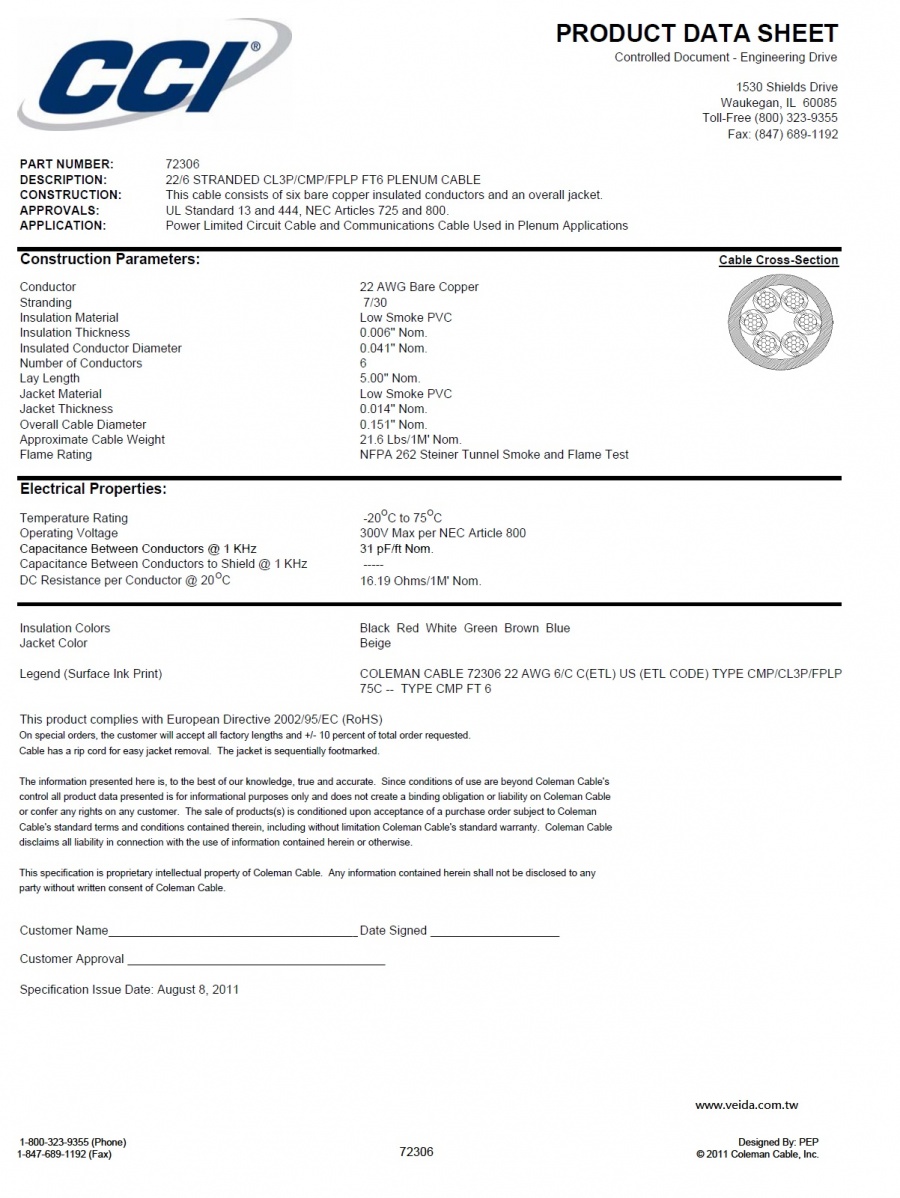

PART NUMBER: 72306
DESCRIPTION: 22/6 STRANDED CL3P/CMP/FPLP FT6 PLENUM CABLE
CONSTRUCTION: This cable consists of six bare copper insulated conductors and an overall jacket.
APPROVALS: UL Standard 13 and 444, NEC Articles 725 and 800.
APPLICATION: Power Limited Circuit Cable and Communications Cable Used in Plenum Applications
Construction Parameters:
Conductor 22 AWG Bare Copper
Stranding 7/30
Insulation Material Low Smoke PVC
Insulation Thickness 0.006 Nom.
Insulated Conductor Diameter 0.041 Nom.
Number of Conductors 6
Lay Length 5.00 Nom.
Jacket Material Low Smoke PVC
Jacket Thickness 0.014 Nom.
Overall Cable Diameter 0.151 Nom.
Approximate Cable Weight 21.6 Lbs/1M Nom.
Flame Rating NFPA 262 Steiner Tunnel Smoke and Flame Test
Electrical Properties:
Temperature Rating -20OC to 75OC
Operating Voltage 300V Max per NEC Article 800
Capacitance Between Conductors @ 1 KHz 31 pF/ft Nom
Capacitance Between Conductors to Shield @ 1 KHz -----
DC Resistance per Conductor @ 20OC 16.19 Ohms/1M Nom.
Insulation Colors Black Red White Green Brown Blue
Jacket Color Beige
|
