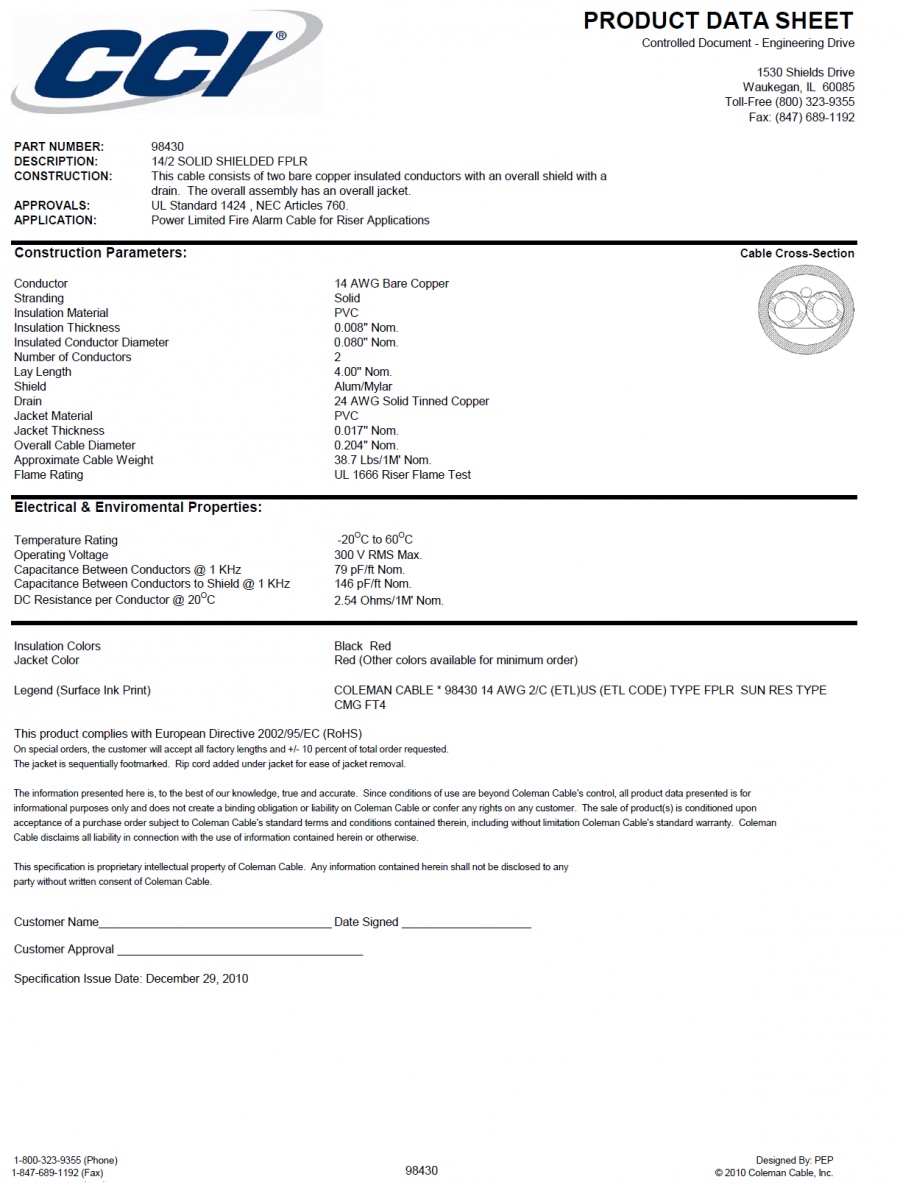

PART NUMBER: 98430
DESCRIPTION: 14/2 SOLID SHIELDED FPLR
CONSTRUCTION: This cable consists of two bare copper insulated conductors with an overall shield with a drain. The overall assembly has an overall jacket.
APPROVALS: UL Standard 1424, NEC Article 760
APPLICATION: Power Limited Fire Alarm Cable for Riser Applications
Construction Parameters:
Conductor: 14 AWG Bare Copper
Stranding: Solid
Insulation Material:PVC
Insulation Thickness:0.008" Nom.
Insulated Conductor Diameter:0.080" Nom.
Number of Conductors:2
Lay Length:4.00 Nom.
Shield: Alum/Mylar
Drain: 24 AWG Solid Tinned Copper
Jacket Material: PVC
Jacket Thickness:0.017" Nom.
Overall Cable Diameter:0.204" Nom.
Approximate Cable Weight: 38.7 Lbs/1M Nom.
Flame Rating: UL 1666 Riser Flame Test
Electrical Properties:
Temperature Rating:-20度to 60度
Operating Voltage:300V RMS Max
Capacitance Between Conductors@1KHz:79Pf/ft Nom.
Capacitance Between Conductors to shield@1KHz:146pF/ft Nom..
DC Resistance per Conductor@20度: 2.54 Ohms/1M Nom.
Insulation Colors:Black Red
Jacket Colors:Red (other colors available for min order)
Legend (Surface Ink Print): COLEMAN CABLE 98430 14 AWG 2/C (ETL) US (ETL CODE) TYPE FPLR SUN RES TYPE CMG FT4
|
