Application
AmerCable’s 600-2000 Volt two conductor
cables are recommended for installations
where long flex life, great flexibility and
wearability are desired. Applications include
heavy duty or temporary power supply
service, AC or DC, to motor or generators,
portable and stationary heavy duty
equipment, cranes, conveyors and other
mobile equipment. They are especially
recommended to supply power for magnet
crane applications. They may be installed in
air, in ducts, immersed in water or directly
buried in the earth. However, they are not
UL Type USE. For cables requiring reduced
flame propagation, refer to the factory.

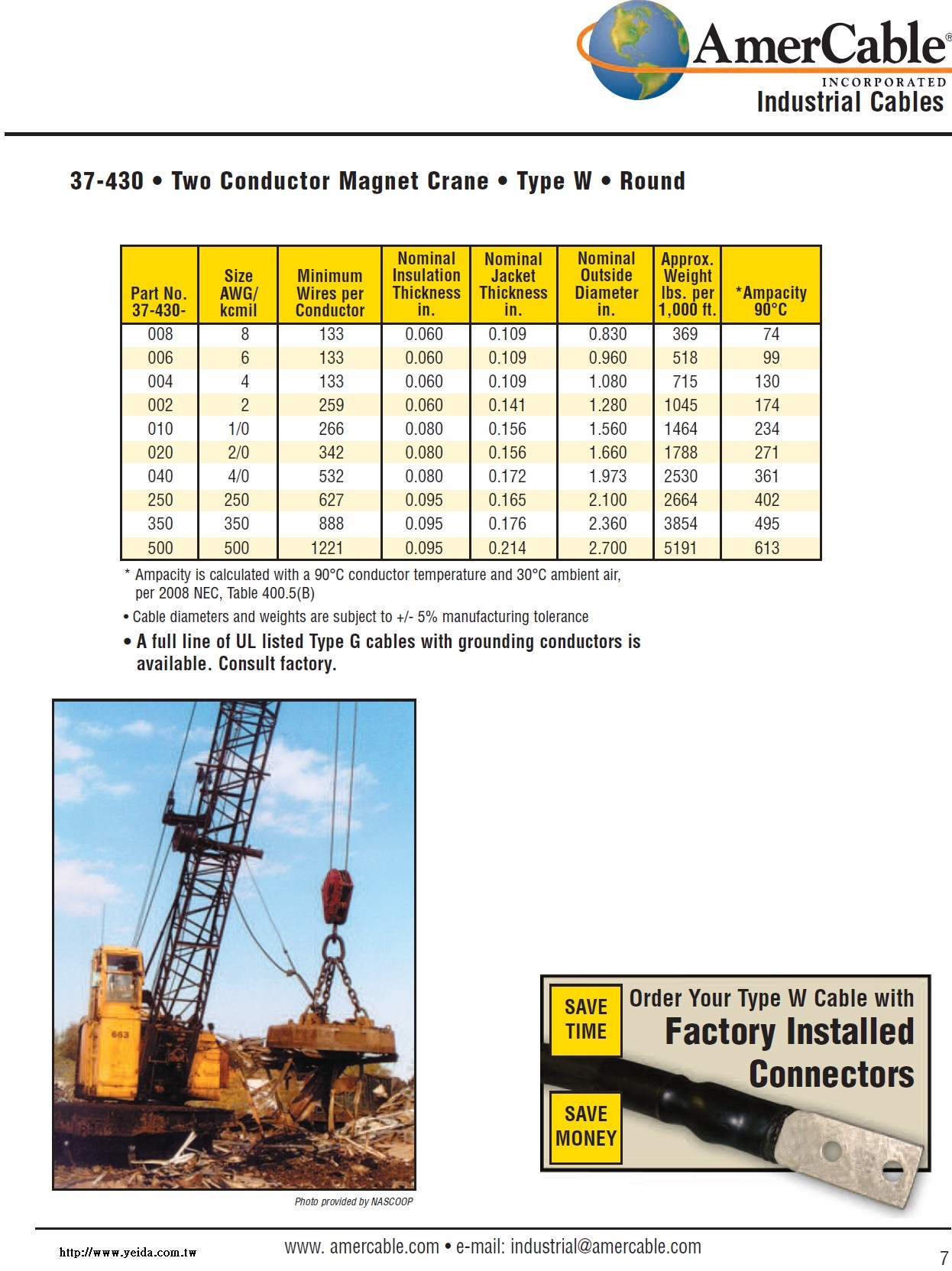

37-430

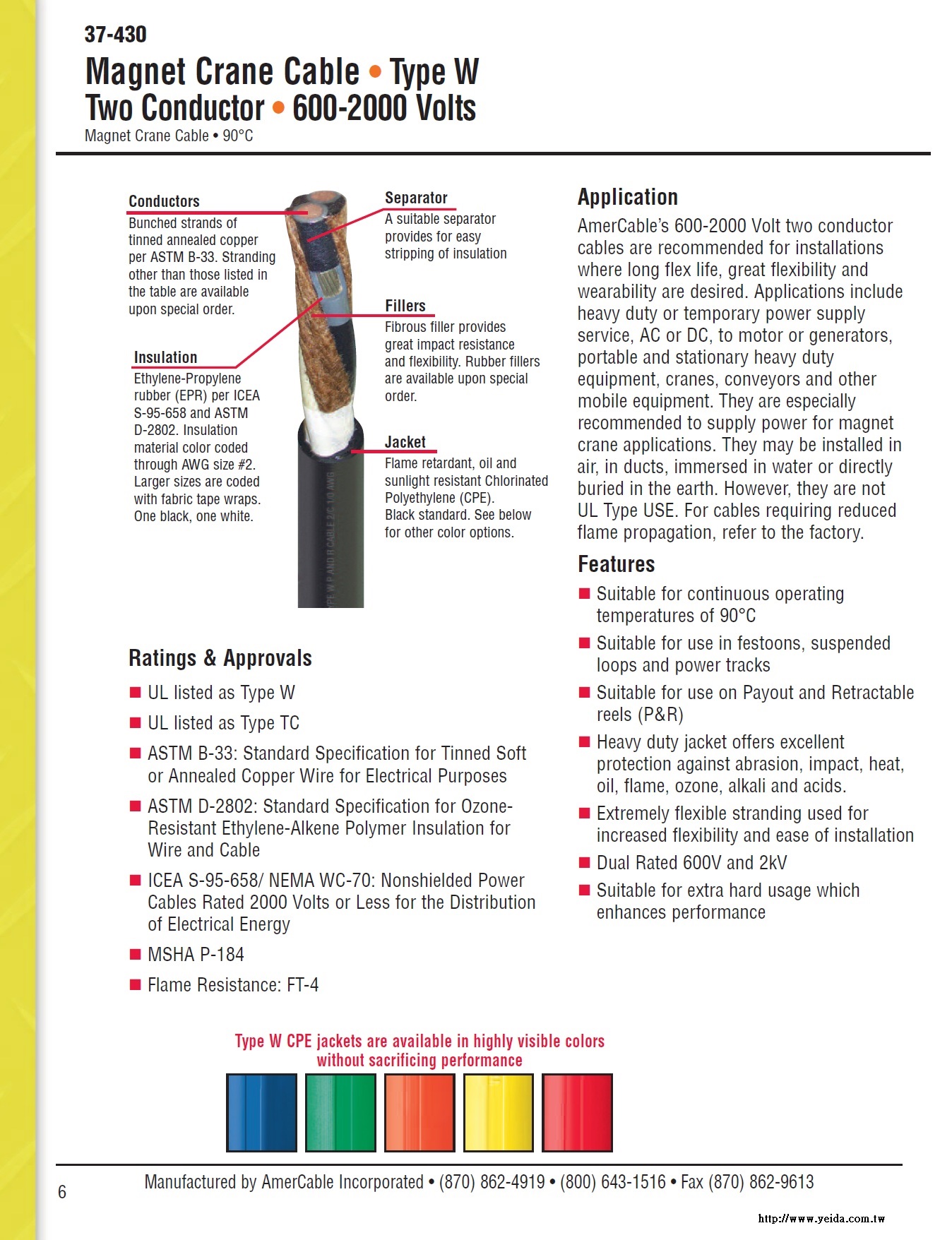

Magnet Crane Cable • Type W
Two Conductor • 600-2000 Volts
Magnet Crane Cable • 90°C

Ratings & Approvals
n UL listed as Type W
n UL listed as Type TC
n ASTM B-33: Standard Specification for Tinned Soft
   or Annealed Copper Wire for Electrical Purposes
n ASTM D-2802: Standard Specification for Ozone-
   Resistant Ethylene-Alkene Polymer Insulation for
   Wire and Cable
n ICEA S-95-658/ NEMA WC-70: Nonshielded Power
   Cables Rated 2000 Volts or Less for the Distribution
    of Electrical Energy
n MSHA P-184
n Flame Resistance: FT-4

Features
n Suitable for continuous operating
   temperatures of 90°C
n Suitable for use in festoons, suspended
    loops and power tracks
n Suitable for use on Payout and Retractable
    reels (P&R)
n Heavy duty jacket offers excellent
    protection against abrasion, impact, heat,
    oil, flame, ozone, alkali and acids.
n Extremely flexible stranding used for
    increased flexibility and ease of installation
n Dual Rated 600V and 2kV
n Suitable for extra hard usage which
    enhances performance
