Application
AmerCable’s 600-2000 Volt three conductor
cables are recommended for installations
where long flex life, great flexibility and
wearability are desired. Applications include
heavy duty or temporary power supply
service, AC or DC, to motor or generators,
portable and stationary heavy duty
equipment, cranes, conveyors and
other mobile equipment. They are also
recommended for use on Payout and
Retractable reels, festoons, suspended
loops and power tracks. They may be
installed in air, in ducts, immersed in water
or directly buried in the earth. However, they
are not UL Type USE. For cables requiring
reduced flame propagation, refer to
the factory.

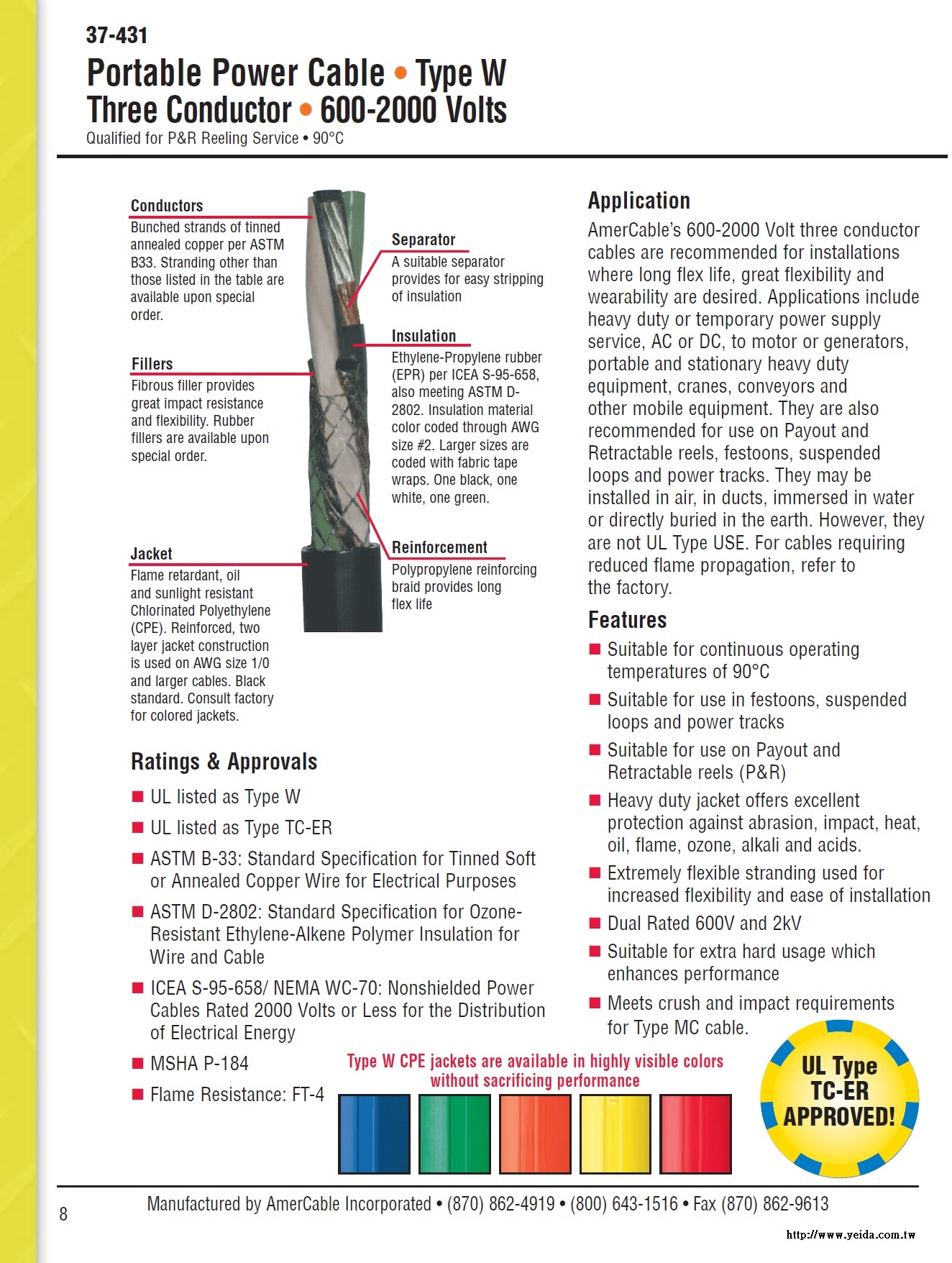

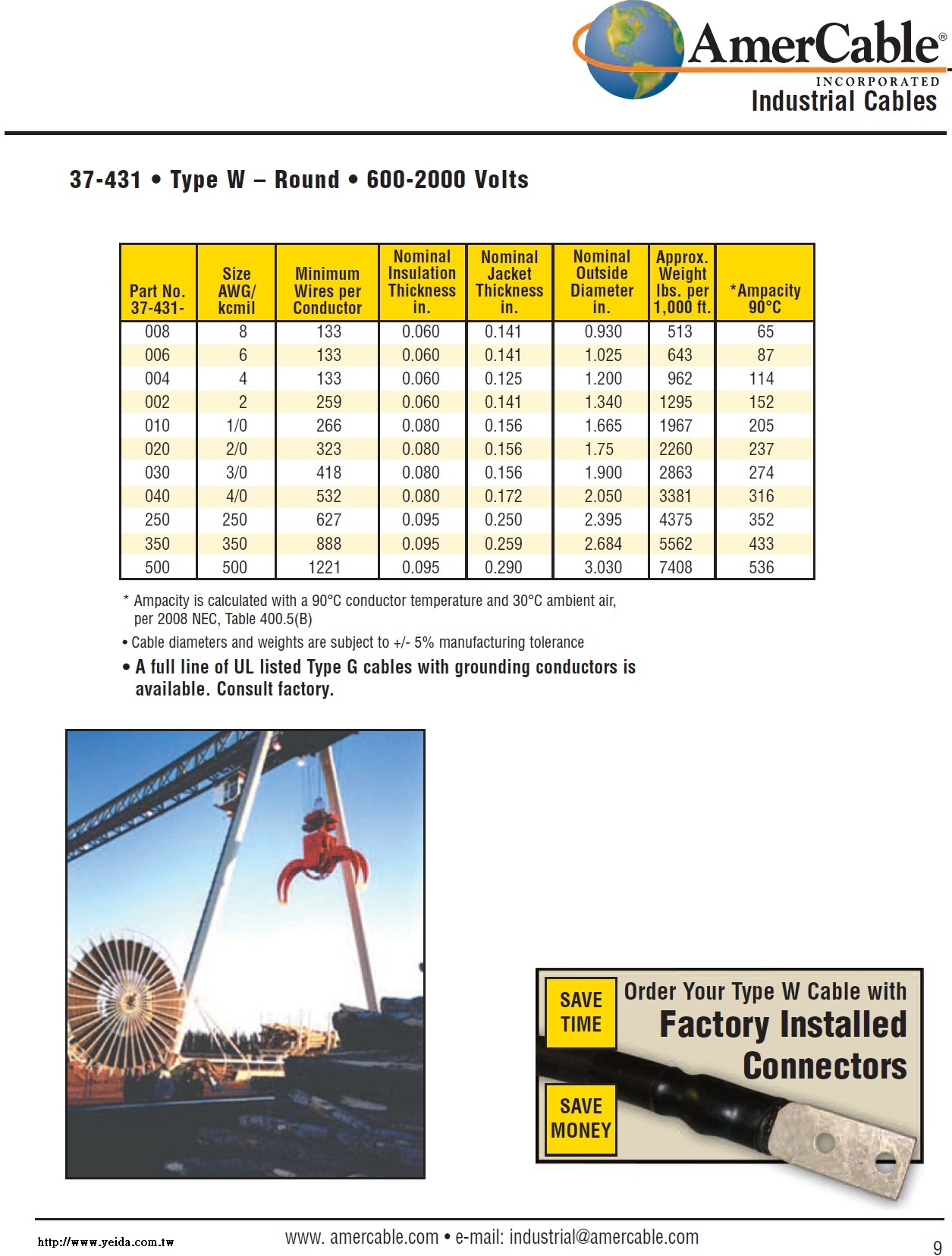

37-431
Portable Power Cable • Type W
Three Conductor • 600-2000 Volts
Qualified for P&R Reeling Service • 90°C

Ratings & Approvals
n UL listed as Type W
n UL listed as Type TC
n ASTM B-33: Standard Specification for Tinned Soft
   or Annealed Copper Wire for Electrical Purposes
n ASTM D-2802: Standard Specification for Ozone-
   Resistant Ethylene-Alkene Polymer Insulation for
   Wire and Cable
n ICEA S-95-658/ NEMA WC-70: Nonshielded Power
   Cables Rated 2000 Volts or Less for the Distribution
    of Electrical Energy
n MSHA P-184
n Flame Resistance: FT-4

Features
n Suitable for continuous operating
   temperatures of 90°C
n Suitable for use in festoons, suspended
   loops and power tracks
n Suitable for use on Payout and
   Retractable reels (P&R)
n Heavy duty jacket offers excellent
   protection against abrasion, impact, heat,
   oil, flame, ozone, alkali and acids.
n Extremely flexible stranding used for
   increased flexibility and ease of installation
n Dual Rated 600V and 2kV
n Suitable for extra hard usage which
   enhances performance
n Meets crush and impact requirements
   for Type MC cable.
