商品編號: Amer-37-432
Amer-37-432 Awg 8 to 500MCM Portable Power Cable • Four Conductor Magnet Crane • Type W • Round 90°C柔性4C輕便型耐高壓高溫動力馬達(起重機, 吊車)電線
Application
AmerCable’s 600-2000 Volt four conductor
cables are recommended for installations
where long flex life, great flexibility and
wearability are desired. Applications include
heavy duty or temporary power supply
service, AC or DC, to motor or generators,
portable and stationary heavy duty
equipment, cranes, conveyors and other
mobile equipment. They are also recommended
for use on Payout and Retractable reels,
festoons, suspended loops and power
tracks. They may be installed in air, in ducts,
immersed in water or directly buried in the
earth. However, they are not UL Type USE.
For cables requiring reduced flame
propagation, refer to the factory.

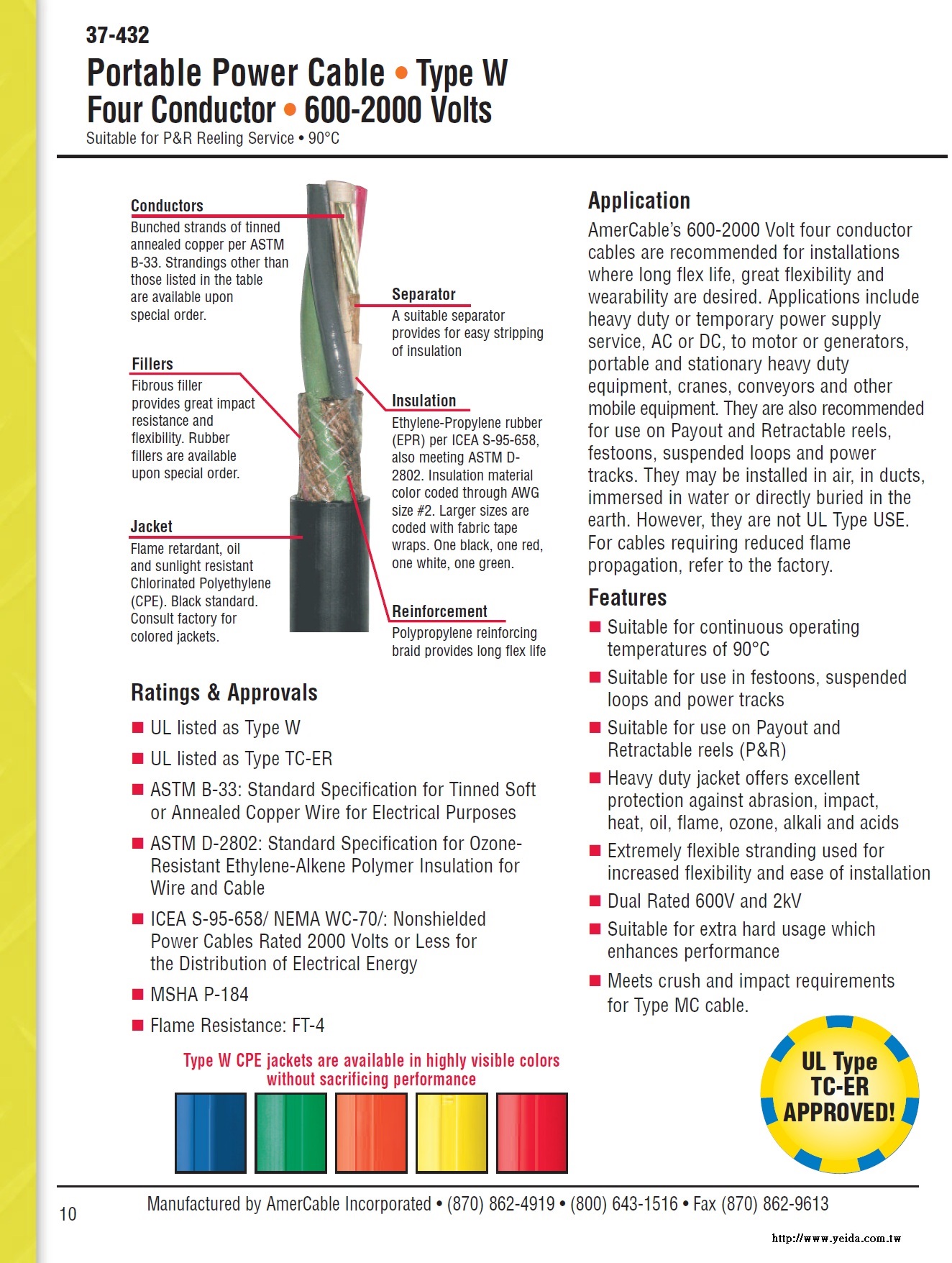

37-432
Portable Power Cable • Type W
Four Conductor • 600-2000 Volts
Suitable for P&R Reeling Service • 90°C
Ratings & Approvals
n UL listed as Type W
n UL listed as Type TC
n ASTM B-33: Standard Specification for Tinned Soft
or Annealed Copper Wire for Electrical Purposes
n ASTM D-2802: Standard Specification for Ozone-
Resistant Ethylene-Alkene Polymer Insulation for
Wire and Cable
n ICEA S-95-658/ NEMA WC-70: Nonshielded Power
Cables Rated 2000 Volts or Less for the Distribution
of Electrical Energy
n MSHA P-184
n Flame Resistance: FT-4
Features
n Suitable for continuous operating
temperatures of 90°C
n Suitable for use in festoons, suspended
loops and power tracks
n Suitable for use on Payout and
Retractable reels (P&R)
n Heavy duty jacket offers excellent
protection against abrasion, impact, heat,
oil, flame, ozone, alkali and acids.
n Extremely flexible stranding used for
increased flexibility and ease of installation
n Dual Rated 600V and 2kV
n Suitable for extra hard usage which
enhances performance
n Meets crush and impact requirements
for Type MC cable.
|
