Applications
A flexible, braid and foil shielded,
power cable specifically engineered
for use in medium voltage variable
frequency AC drive (VFD) applications.

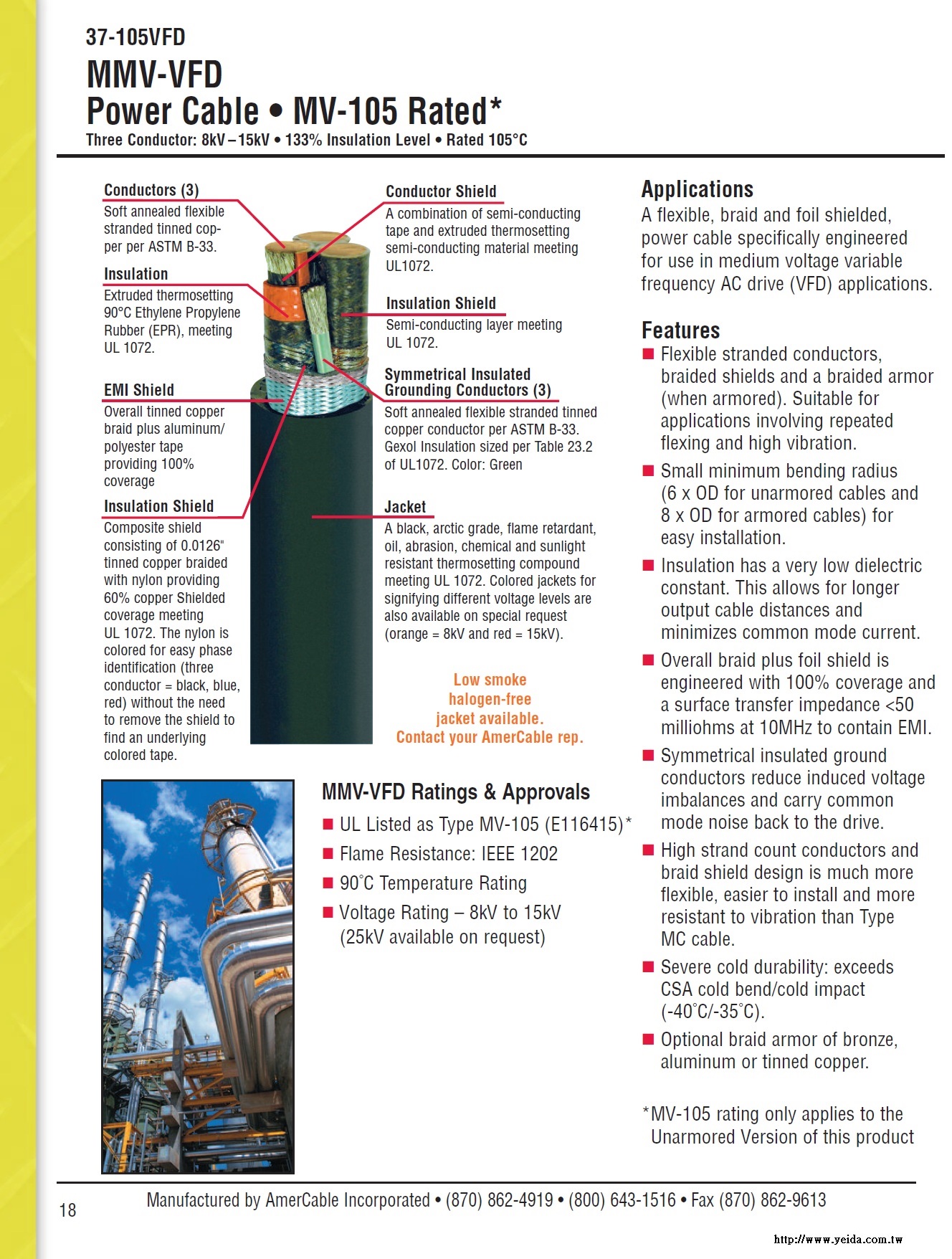

MMV-VFD
Power Cable • MV-105 Rated*
Three Conductor: 8kV – 15kV • 133% Insulation Level • Rated 105°C

MMV-VFD Ratings & Approvals
n UL Listed as Type MV-105 (E116415)*
n Flame Resistance: IEEE 1202
n 90°C Temperature Rating
n Voltage Rating – 8kV to 15kV
   (25kV available on request)

Features
n Flexible stranded conductors,
   braided shields and a braided armor
   (when armored). Suitable for
    applications involving repeated
   flexing and high vibration.
n Small minimum bending radius
   (6 x OD for unarmored cables and
    8 x OD for armored cables) for
    easy installation.
n Insulation has a very low dielectric
   constant. This allows for longer
   output cable distances and
   minimizes common mode current.
n Overall braid plus foil shield is
   engineered with 100% coverage and
   a surface transfer impedance <50
   milliohms at 10MHz to contain EMI.
n Symmetrical insulated ground
   conductors reduce induced voltage
   imbalances and carry common
   mode noise back to the drive.
n High strand count conductors and
   braid shield design is much more
   flexible, easier to install and more
   resistant to vibration than Type
   MC cable.
n Severe cold durability: exceeds
   CSA cold bend/cold impact
   (-40°C/-35°C).
n Optional braid armor of bronze,
   aluminum or tinned copper.
*MV-105 rating only applies to the
Unarmored Version of this product
