    DRILL/CORD Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 75°C, 600 V
    看原圖
    		5267220

    商品編號: ANIXT-DRILL-CORD

    DRILL/CORD Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 75°C, 600 V

    For use on drills and other mining equipment.For use on circuits not exceeding 600 volts ata maximum conductor temperature of 75°C.

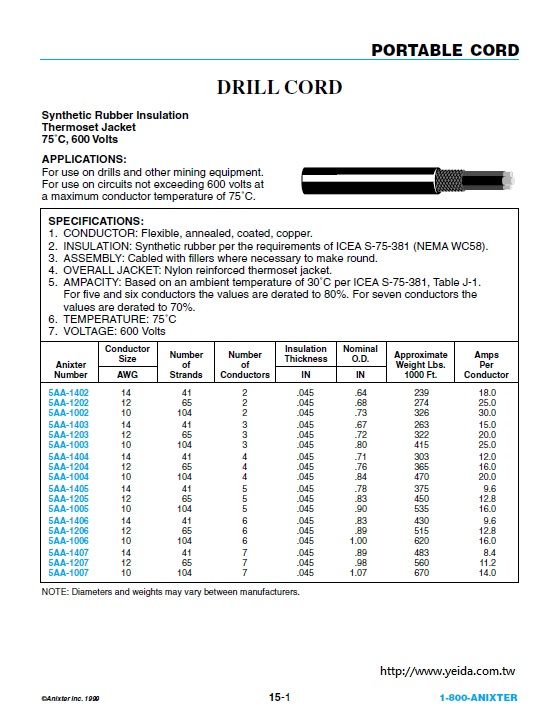

    DRILL CORD
    Synthetic Rubber Insulation
    Thermoset Jacket
    75°C, 600 Volts
    　

    APPLICATIONS:
    For use on drills and other mining equipment.
    For use on circuits not exceeding 600 volts at
    a maximum conductor temperature of 75°C.
    　

    SPECIFICATIONS:
    1. CONDUCTOR:     Flexible, annealed, coated, copper.
    2. INSULATION: Synthetic rubber per the requirements of ICEA S-75-381 (NEMA WC58).
    3. ASSEMBLY: Cabled with fillers where necessary to make round.
    4. OVERALL JACKET: Nylon reinforced thermoset jacket.
    5. AMPACITY: Based on an ambient temperature of 30°C per ICEA S-75-381, Table J-1.
    For five and six conductors the values are derated to 80%. For seven conductors the
    values are derated to 70%.
    6. TEMPERATURE: 75°C
    7. VOLTAGE: 600 Volts
