    首頁 > > AY-Portable Cord

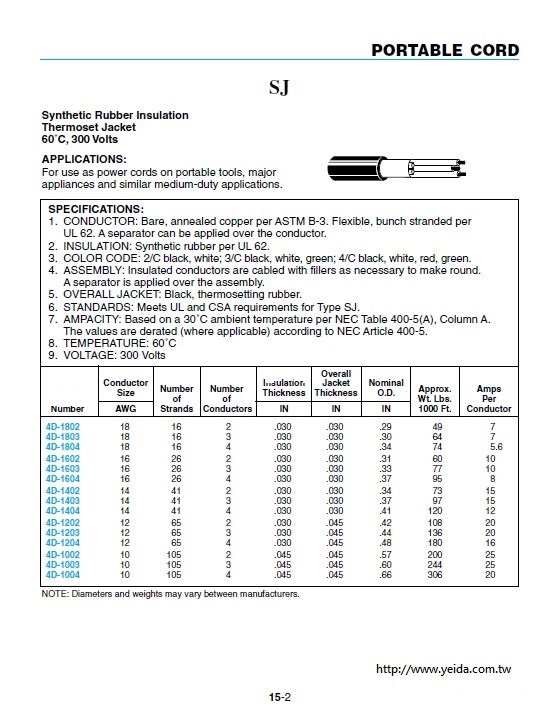

    SJ Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 60°C, 300 V
    看原圖
    		5267221

    商品編號: ANIXT-SJ

    SJ Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 60°C, 300 V

    For use as power cords on portable tools, majorappliances and similar medium-duty applications.

    SJ
    Synthetic Rubber Insulation
    Thermoset Jacket
    60°C, 300 Volts
    　

    APPLICATIONS:
    For use as power cords on portable tools, major
    appliances and similar medium-duty applications.
    　

    SPECIFICATIONS:
    1. CONDUCTOR:     Bare, annealed copper per ASTM B-3. Flexible, bunch stranded per
    UL 62. A separator can be applied over the conductor.
    2. INSULATION: Synthetic rubber per UL 62.
    3. COLOR CODE: 2/C black, white; 3/C black, white, green; 4/C black, white, red, green.
    4. ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round.
    A separator is applied over the assembly.
    5. OVERALL JACKET: Black, thermosetting rubber.
    6. STANDARDS: Meets UL and CSA requirements for Type SJ.
    7. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A), Column A.
    The values are derated (where applicable) according to NEC Article 400-5.
    8. TEMPERATURE: 60°C
    9. VOLTAGE: 300 Volts
