    首頁 > > AY-Portable Cord

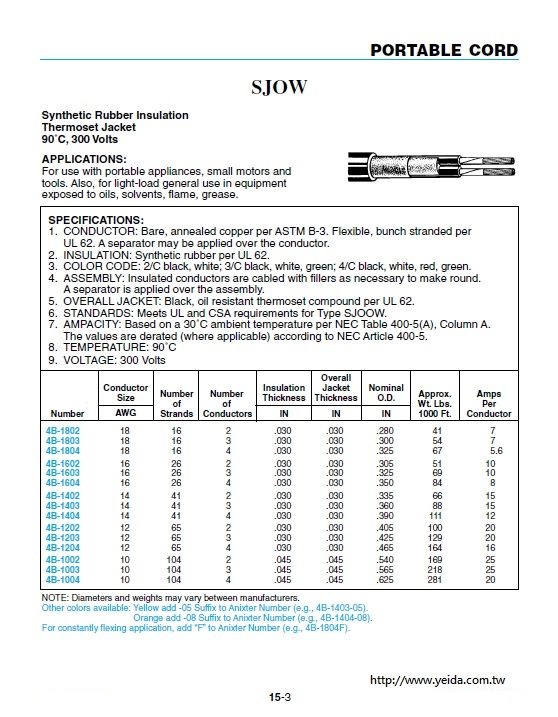

    SJOW Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 90°C, 300 V
    看原圖
    		5267222

    商品編號: A-SJOW

    SJOW Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 90°C, 300 V

    For use with portable appliances, small motors andtools. Also, for light-load general use in equipmentexposed to oils, solvents, flame, grease.

    Synthetic Rubber Insulation
    Thermoset Jacket
    90°C, 300 Volts
    　

    APPLICATIONS:
    For use with portable appliances, small motors and
    tools. Also, for light-load general use in equipment
    exposed to oils, solvents, flame, grease.
    　

    SPECIFICATIONS:
    1. CONDUCTOR:     Bare, annealed copper per ASTM B-3. Flexible, bunch stranded per
    UL 62. A separator may be applied over the conductor.
    2. INSULATION: Synthetic rubber per UL 62.
    3. COLOR CODE: 2/C black, white; 3/C black, white, green; 4/C black, white, red, green.
    4. ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round.
    A separator is applied over the assembly.
    5. OVERALL JACKET: Black, oil resistant thermoset compound per UL 62.
    6. STANDARDS: Meets UL and CSA requirements for Type SJOOW.
    7. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A), Column A.
    The values are derated (where applicable) according to NEC Article 400-5.
    8. TEMPERATURE: 90°C
    9. VOLTAGE: 300 Volts
