商品編號: A-SJTO-STO

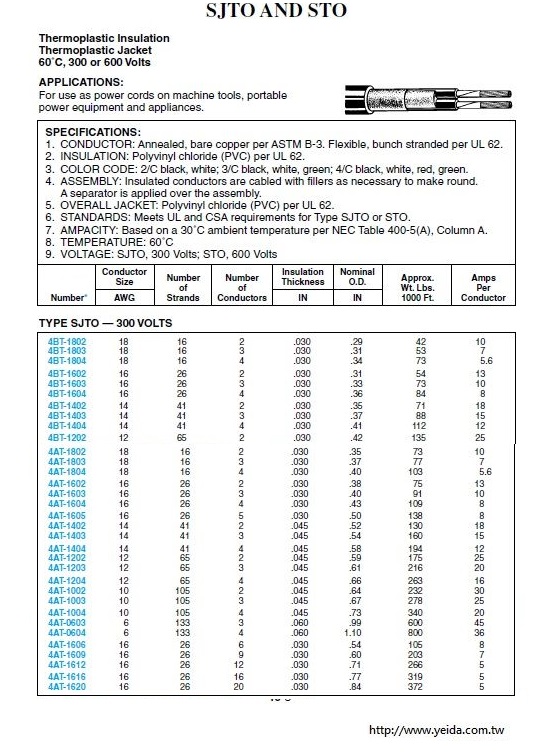

SJTO AND STO Thermoplastic Insulation/Jacket 輕便電源線 60°C, 300 or 600 Volts
For use as power cords on machine tools, portablepower equipment and appliances.
SJTO AND STO
Thermoplastic Insulation
Thermoplastic Jacket
60°C, 300 or 600 Volts
APPLICATIONS:
For use as power cords on machine tools, portable
power equipment and appliances.
SPECIFICATIONS:
1. CONDUCTOR: Annealed, bare copper per ASTM B-3. Flexible, bunch stranded per UL 62.
2. INSULATION: Polyvinyl chloride (PVC) per UL 62.
3. COLOR CODE: 2/C black, white; 3/C black, white, green; 4/C black, white, red, green.
4. ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round.
A separator is applied over the assembly.
5. OVERALL JACKET: Polyvinyl chloride (PVC) per UL 62.
6. STANDARDS: Meets UL and CSA requirements for Type SJTO or STO.
7. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A), Column A.
8. TEMPERATURE: 60°C
9. VOLTAGE: SJTO, 300 Volts; STO, 600 Volts
|
