商品編號: ANIXT-SVO

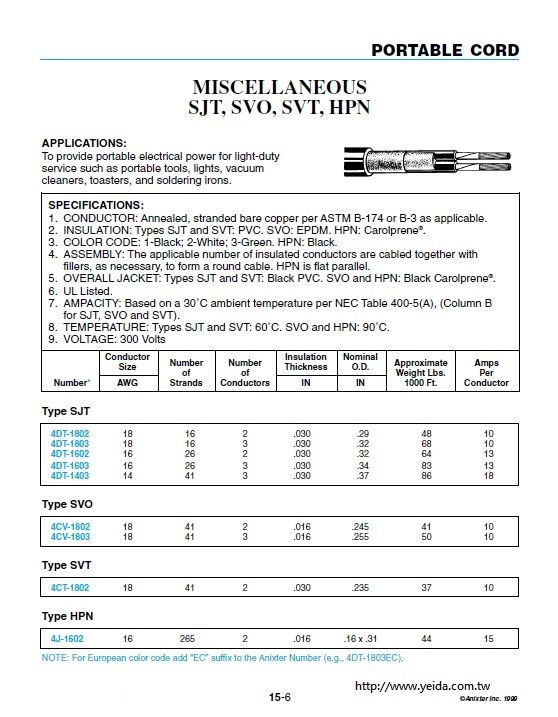

MISCELLANEOUS SJT, SVO, SVT, HPN 輕便電源線 Types SJT and SVT: 60°C. SVO and HPN: 90°C.300V
To provide portable electrical power for light-dutyservice such as portable tools, lights, vacuumcleaners, toasters, and soldering irons.
MISCELLANEOUS
SJT, SVO, SVT, HPN
APPLICATIONS:
To provide portable electrical power for light-duty
service such as portable tools, lights, vacuum
cleaners, toasters, and soldering irons.
SPECIFICATIONS:
1. CONDUCTOR: Annealed, stranded bare copper per ASTM B-174 or B-3 as applicable.
2. INSULATION: Types SJT and SVT: PVC. SVO: EPDM. HPN: Carolprene®.
3. COLOR CODE: 1-Black; 2-White; 3-Green. HPN: Black.
4. ASSEMBLY: The applicable number of insulated conductors are cabled together with
fillers, as necessary, to form a round cable. HPN is flat parallel.
5. OVERALL JACKET: Types SJT and SVT: Black PVC. SVO and HPN: Black Carolprene®.
6. UL Listed.
7. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A), (Column B
for SJT, SVO and SVT).
8. TEMPERATURE: Types SJT and SVT: 60°C. SVO and HPN: 90°C.
9. VOLTAGE: 300 Volts
|
