商品編號: A-SOOW-S
SOOW SHIELDED SOOW 90ºC Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 600V
For use as portable power and control cable. It canbe used for test or motor leads. Also, it providesheavy-duty service for industrial tools, portablelights, battery chargers, and equipment exposed tooils, solvents and grease.

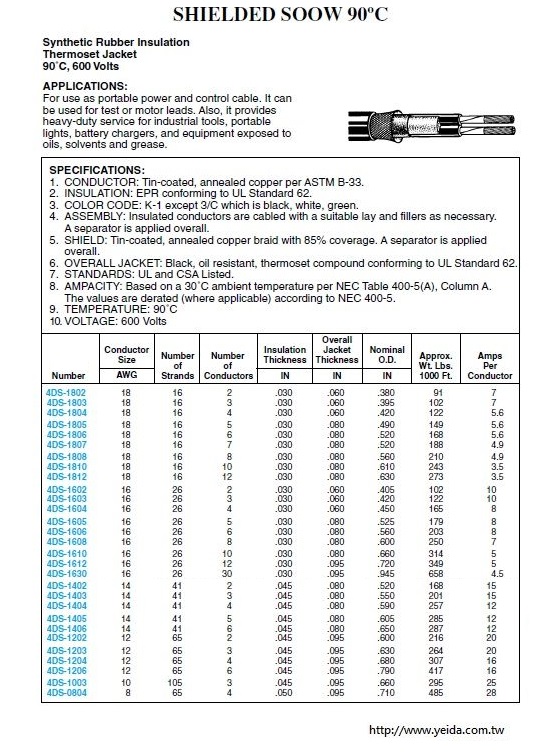

SHIELDED SOOW 90ºC
Synthetic Rubber Insulation
Thermoset Jacket
90°C, 600 Volts
APPLICATIONS:
For use as portable power and control cable. It can
be used for test or motor leads. Also, it provides
heavy-duty service for industrial tools, portable
lights, battery chargers, and equipment exposed to
oils, solvents and grease.
SPECIFICATIONS:
1. CONDUCTOR: Tin-coated, annealed copper per ASTM B-33.
2. INSULATION: EPR conforming to UL Standard 62.
3. COLOR CODE: K-1 except 3/C which is black, white, green.
4. ASSEMBLY: Insulated conductors are cabled with a suitable lay and fillers as necessary.
A separator is applied overall.
5. SHIELD: Tin-coated, annealed copper braid with 85% coverage. A separator is applied
overall.
6. OVERALL JACKET: Black, oil resistant, thermoset compound conforming to UL Standard 62.
7. STANDARDS: UL and CSA Listed.
8. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A), Column A.
The values are derated (where applicable) according to NEC 400-5.
9. TEMPERATURE: 90°C
10. VOLTAGE: 600 Volts
|
