商品編號: A-SO
SO Synthetic Rubber Insulation Thermoset Jacket 輕便電源線 600V 90°C
For use as portable electrical power, and portablecontrol cable. It can be used for ground test ormotor leads and provides heavy-duty service forindustrial tools, portable lights, battery chargers,and equipment exposed to oils, solvents, flameand grease.

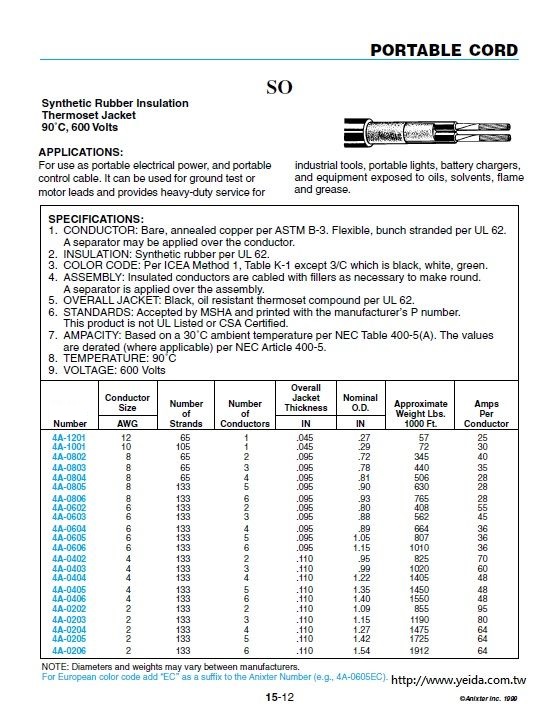

SO
Synthetic Rubber Insulation
Thermoset Jacket
90°C, 600 Volts
For use as portable electrical power, and portable
control cable. It can be used for ground test or
motor leads and provides heavy-duty service for
industrial tools, portable lights, battery chargers,
and equipment exposed to oils, solvents, flame
and grease.
SPECIFICATIONS:
1. CONDUCTOR: Bare, annealed copper per ASTM B-3. Flexible, bunch stranded per UL 62.
A separator may be applied over the conductor.
2. INSULATION: Synthetic rubber per UL 62.
3. COLOR CODE: Per ICEA Method 1, Table K-1 except 3/C which is black, white, green.
4. ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round.
A separator is applied over the assembly.
5. OVERALL JACKET: Black, oil resistant thermoset compound per UL 62.
6. STANDARDS: Accepted by MSHA and printed with the manufacturer’s P number.
This product is not UL Listed or CSA Certified.
7. AMPACITY: Based on a 30°C ambient temperature per NEC Table 400-5(A). The values
are derated (where applicable) per NEC Article 400-5.
8. TEMPERATURE: 90°C
9. VOLTAGE: 600 Volts
|
