商品編號: A-SEOW
SEOW TPE Insulation/Jacket 輕便電源線–40°C to 105°C, 600 Volts
To provide control and power where exceptionalflexibility and abrasion resistance over a widetemperature range is required. For indoor andoutdoor use on push button remote controls,industrial robotic systems and other portable toolsand equipment.

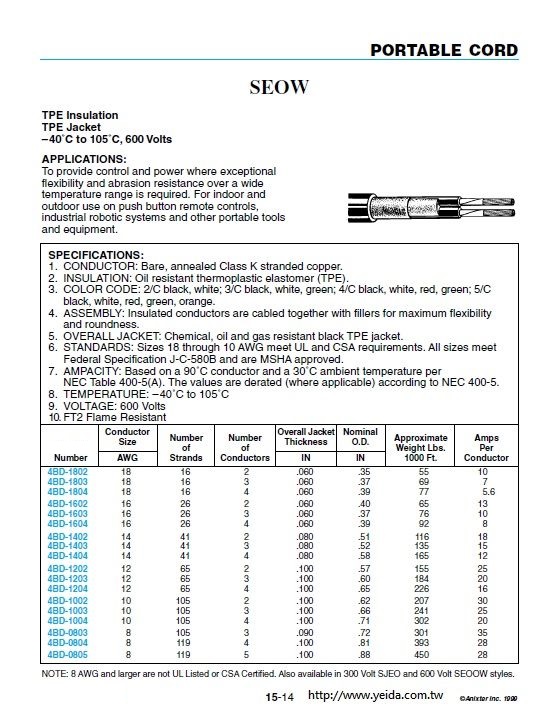

SEOW
TPE Insulation
TPE Jacket
–40°C to 105°C, 600 Volts
APPLICATIONS:
To provide control and power where exceptional
flexibility and abrasion resistance over a wide
temperature range is required. For indoor and
outdoor use on push button remote controls,
industrial robotic systems and other portable tools
and equipment.
SPECIFICATIONS:
1. CONDUCTOR: Bare, annealed Class K stranded copper.
2. INSULATION: Oil resistant thermoplastic elastomer (TPE).
3. COLOR CODE: 2/C black, white; 3/C black, white, green; 4/C black, white, red, green; 5/C
black, white, red, green, orange.
4. ASSEMBLY: Insulated conductors are cabled together with fillers for maximum flexibility
and roundness.
5. OVERALL JACKET: Chemical, oil and gas resistant black TPE jacket.
6. STANDARDS: Sizes 18 through 10 AWG meet UL and CSA requirements. All sizes meet
Federal Specification J-C-580B and are MSHA approved.
7. AMPACITY: Based on a 90°C conductor and a 30°C ambient temperature per
NEC Table 400-5(A). The values are derated (where applicable) according to NEC 400-5.
8. TEMPERATURE: –40°C to 105°C
9. VOLTAGE: 600 Volts
10. FT2 Flame Resistant
|
