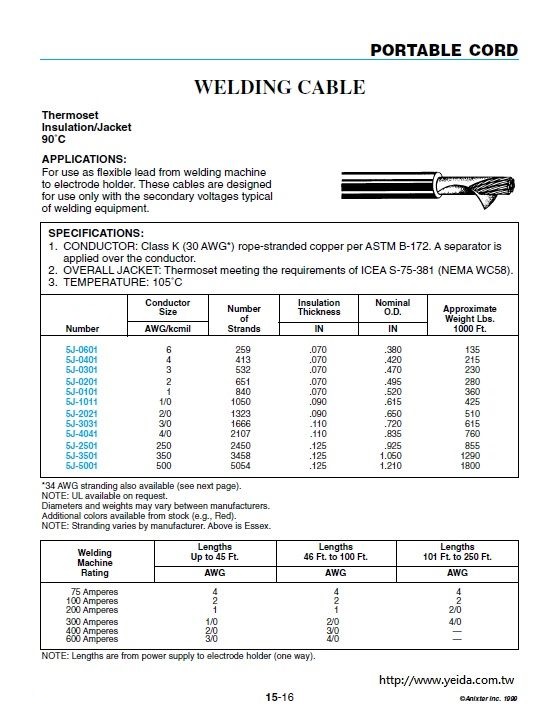

WELDING CABLE
Thermoset
Insulation/Jacket
90°C
　

APPLICATIONS:
For use as flexible lead from welding machine
to electrode holder. These cables are designed
for use only with the secondary voltages typical
of welding equipment.
　

SPECIFICATIONS:
1. CONDUCTOR: Class K (30 AWG*) rope-stranded copper per ASTM B-172. A separator is
applied over the conductor.
2. OVERALL JACKET: Thermoset meeting the requirements of ICEA S-75-381 (NEMA WC58).
3. TEMPERATURE: 105°C

*34 AWG stranding also available (see next page).
NOTE: UL available on request.
Diameters and weights may vary between manufacturers.
Additional colors available from stock (e.g., Red).
NOTE: Stranding varies by manufacturer. Above is Essex.
