商品編號: A-15kV-JUMPER
5–15kV JUMPER CABLE NON-SHIELDED高壓超柔軟電線 EPR/Thermoset 90°C 5kV/15kV
For use as flexible power leads for temporaryconnections, or by-passing energized power linesat voltages up to 15kV. Suitable for use at 5kV forconnections to transformers and motors wherenon-shielded cable is required.Jumper cables should not be used in place ofshielded medium voltage cables. They should beused only in areas where contact with people andelectrical grounds is limited.
|
|

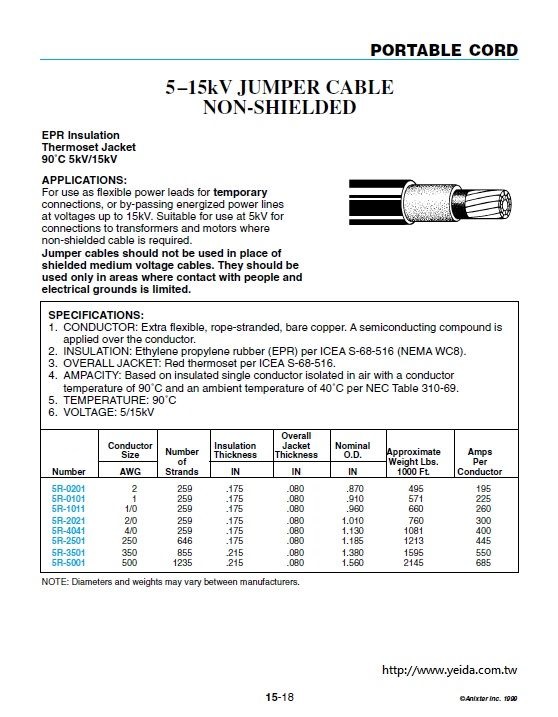

5–15kV JUMPER CABLE
NON-SHIELDED
EPR Insulation
Thermoset Jacket
90°C 5kV/15kV
APPLICATIONS:
For use as flexible power leads for temporary
connections, or by-passing energized power lines
at voltages up to 15kV. Suitable for use at 5kV for
connections to transformers and motors where
non-shielded cable is required.
Jumper cables should not be used in place of
shielded medium voltage cables. They should be
used only in areas where contact with people and
electrical grounds is limited.
SPECIFICATIONS:
1. CONDUCTOR: Extra flexible, rope-stranded, bare copper. A semiconducting compound is
applied over the conductor.
2. INSULATION: Ethylene propylene rubber (EPR) per ICEA S-68-516 (NEMA WC8).
3. OVERALL JACKET: Red thermoset per ICEA S-68-516.
4. AMPACITY: Based on insulated single conductor isolated in air with a conductor
temperature of 90°C and an ambient temperature of 40°C per NEC Table 310-69.
5. TEMPERATURE: 90°C
6. VOLTAGE: 5/15kV
|
