商品編號: ANIXT-MIL-W-5086-2

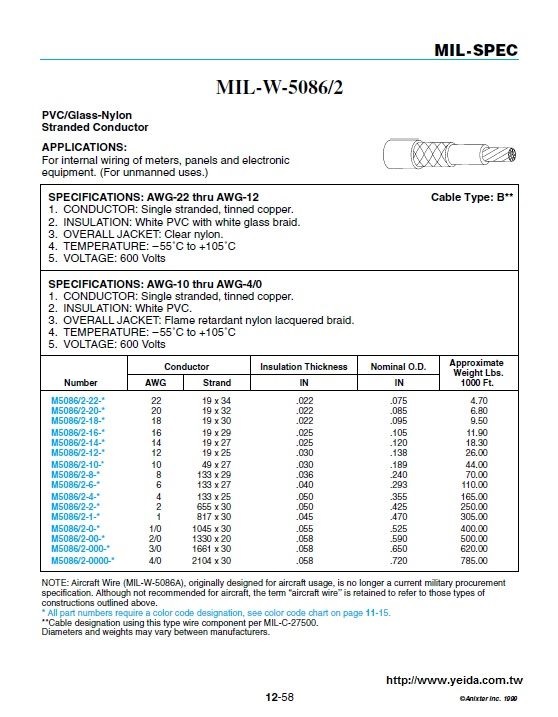

MIL-W-5086/2 PVC/Glass-Nylon 軍規PVC玻璃絲編織尼龍被覆電子線 Stranded Conductor –55°C to +105°C 600V
For internal wiring of meters, panels and electronicequipment. (For unmanned uses.)
MIL-W-5086/2
PVC/Glass-Nylon
Stranded Conductor
APPLICATIONS:
For internal wiring of meters, panels and electronic
equipment. (For unmanned uses.)
SPECIFICATIONS:
AWG-22 thru AWG-12 Cable Type: B**
1. CONDUCTOR: Single stranded, tinned copper.
2. INSULATION: White PVC with white glass braid.
3. OVERALL JACKET: Clear nylon.
4. TEMPERATURE: –55°C to +105°C
5. VOLTAGE: 600 Volts
SPECIFICATIONS:
AWG-10 thru AWG-4/0
1. CONDUCTOR: Single stranded, tinned copper.
2. INSULATION: White PVC.
3. OVERALL JACKET: Flame retardant nylon lacquered braid.
4. TEMPERATURE: –55°C to +105°C
5. VOLTAGE: 600 Volts
|
