商品編號: ANIXT-UL3340
UL3340 3374, 3340 AND 3341 C.S.A. TYPE CL-1254 EPDM Insulation 125°/150 C 300 and 600 Volt U.L. and C.S.A. Approved EPDM電子線
For motor leads and internal wiring of appliances such as refrigerating equipment, room coolerunits and heat pumps where use temperatures do not exceed 125°C. Where no flexing occursafter insulation or during service, a maximum temperature of 150°C is permissible. Also for useas leads of transformers, motor ballasts, solenoids, etc., where the baking temperature of thewindings and coils to which they are attached will not exceed 160°C.

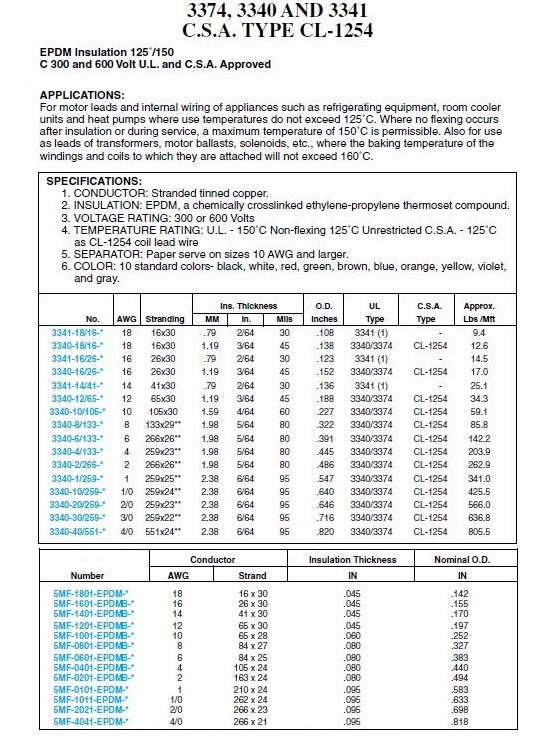

UL 3374, 3340 AND 3341
C.S.A. TYPE CL-1254
EPDM Insulation 125°/150
C 300 and 600 Volt U.L. and C.S.A. Approved
APPLICATIONS:
For motor leads and internal wiring of appliances such as refrigerating equipment, room cooler
units and heat pumps where use temperatures do not exceed 125°C. Where no flexing occurs
after insulation or during service, a maximum temperature of 150°C is permissible. Also for use
as leads of transformers, motor ballasts, solenoids, etc., where the baking temperature of the
windings and coils to which they are attached will not exceed 160°C.
SPECIFICATIONS:
1. CONDUCTOR: Stranded tinned copper.
2. INSULATION: EPDM, a chemically crosslinked ethylene-propylene thermoset compound.
3. VOLTAGE RATING: 300 or 600 Volts
4. TEMPERATURE RATING: U.L. - 150°C Non-flexing 125°C Unrestricted C.S.A. - 125°C
as CL-1254 coil lead wire
5. SEPARATOR: Paper serve on sizes 10 AWG and larger.
6. COLOR: 10 standard colors- black, white, red, green, brown, blue, orange, yellow, violet,
and gray.
|
