商品編號: A-2RH-1601POS
2RH-1601POS TC 600V XLP/HYPALON(海巴龍) SHIELDED MULTI PAIR 隔離對型儀俵控制電纜
For use indoors or outdoors and for installation intrays, troughs, channels, ducts and direct burial.Designed for telemetering, signals, relays andcommunication.

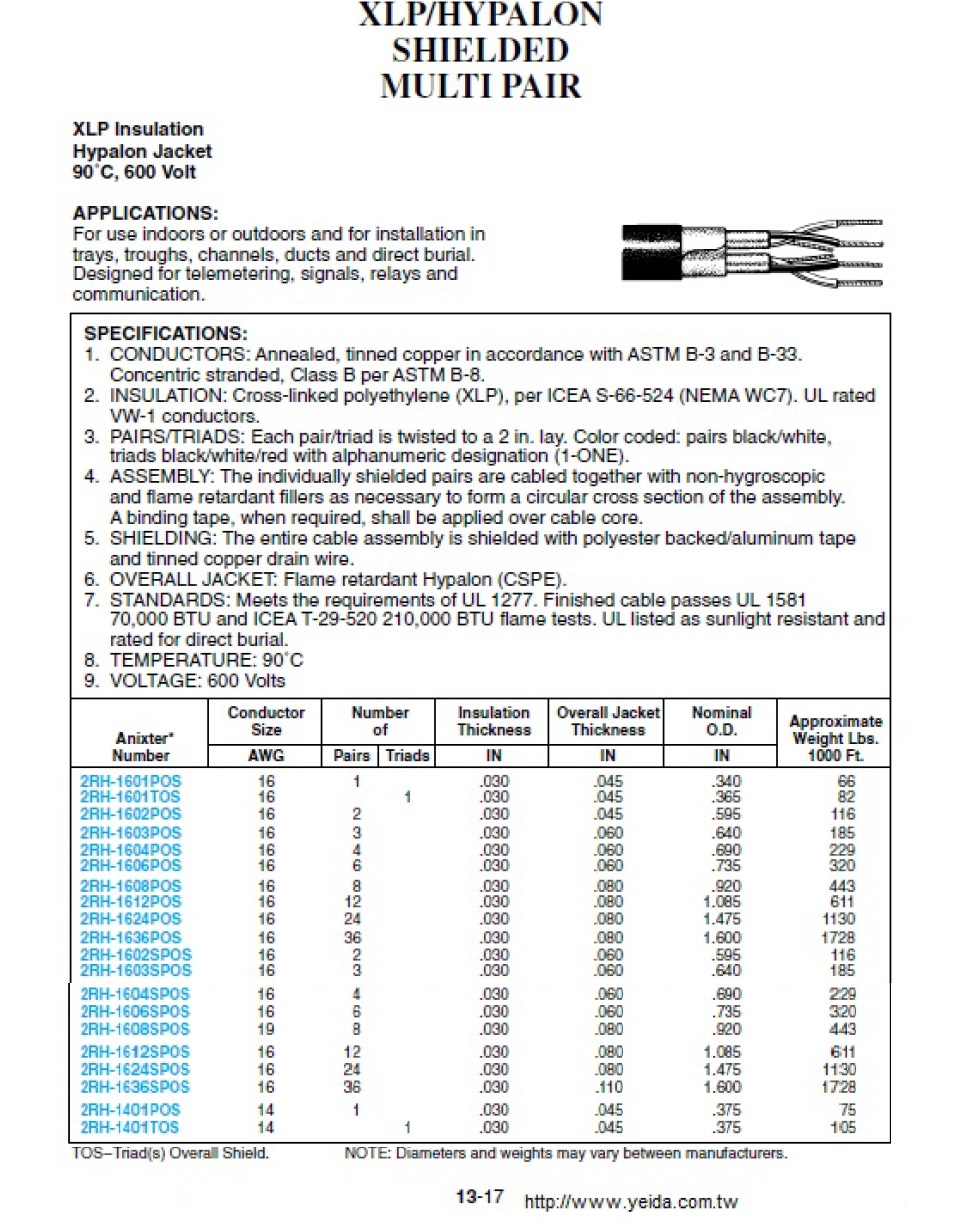

XLP/HYPALON
SHIELDED
MULTI PAIR
XLP Insulation
Hypalon Jacket
90°C, 600 Volt
APPLICATIONS:
For use indoors or outdoors and for installation in
trays, troughs, channels, ducts and direct burial.
Designed for telemetering, signals, relays and
communication.
SPECIFICATIONS:
1. CONDUCTORS: Annealed, tinned copper in accordance with ASTM B-3 and B-33.
Concentric stranded, Class B per ASTM B-8.
2. INSULATION: Cross-linked polyethylene (XLP), per ICEA S-66-524 (NEMA WC7). UL rated
VW-1 conductors.
3. PAIRS/TRIADS: Each pair/triad is twisted to a 2 in. lay. Color coded: pairs black/white,
triads black/white/red with alphanumeric designation (1-ONE).
4. ASSEMBLY: The individually shielded pairs are cabled together with non-hygroscopic
and flame retardant fillers as necessary to form a circular cross section of the assembly.
A binding tape, when required, shall be applied over cable core.
5. SHIELDING: The entire cable assembly is shielded with polyester backed/aluminum tape
and tinned copper drain wire.
6. OVERALL JACKET: Flame retardant Hypalon (CSPE).
7. STANDARDS: Meets the requirements of UL 1277. Finished cable passes UL 1581
70,000 BTU and ICEA T-29-520 210,000 BTU flame tests. UL listed as sunlight resistant and
rated for direct burial.
8. TEMPERATURE: 90°C
9. VOLTAGE: 600 Volts
|
