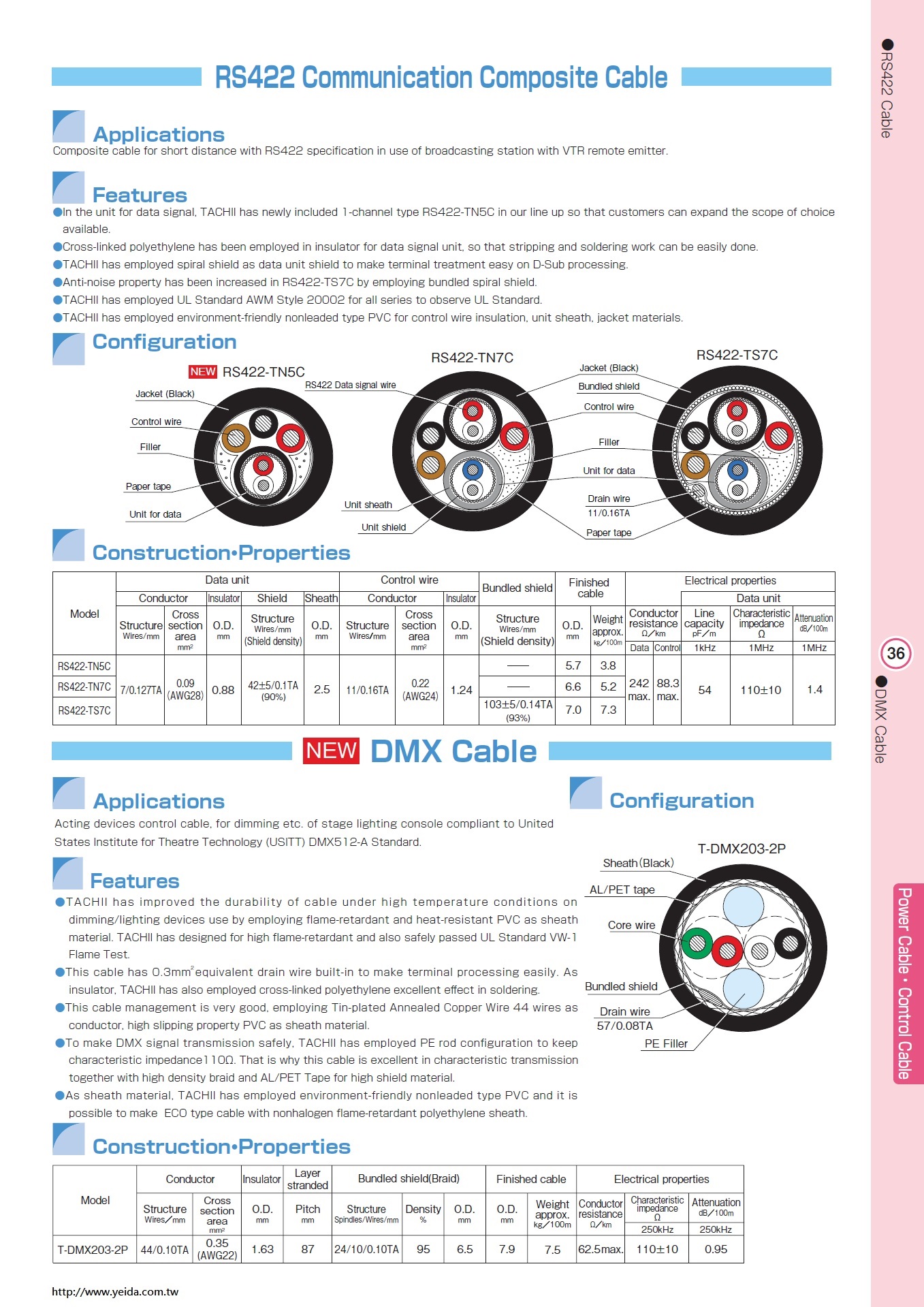

Applications
Acting devices control cable, for dimming etc. of stage lighting console compliant to United
States Institute for Theatre Technology (USITT) DMX512-A Standard.
代理設備控制電纜，適用於符合美國的舞台照明控制台的調光等
國家戲劇技術研究所（USITT）DMX512-A標準。　

Features
●TACHII has improved the durability of cable under high temperat ure conditions on
dimming/lighting devices use by employing flame-retardant and heat-resistant PVC as sheath
material. TACHII has designed for high flame-retardant and also safely passed UL Standard VW-1
Flame Test.
●This cable has 0.3mm equivalent drain wire built-in to make terminal processing easily. As
insulator, TACHII has also employed cross-linked polyethylene excellent effect in soldering.
●This cable management is very good, employing Tin-plated Annealed Copper Wire 44 wires as
conductor, high slipping property PVC as sheath material.
●To make DMX signal transmission safely, TACHII has employed PE rod configuration to keep
characteristic impedance110Ω. That is why this cable is excellent in characteristic transmission
together with high density braid and AL/PET Tape for high shield material.
●As sheath material, TACHII has employed environment-friendly nonleaded type PVC and it is
possible to make ECO type cable with nonhalogen flame-retardant polyethylene sheath
