商品編號: TACHII-TCX-5CHD
TACHII, TCX-5CHD, Coaxial Cable correspond to 3G/HD-SDI for anchoring use 攝影棚廣播系統用高畫質數位影像傳輸同軸電纜線

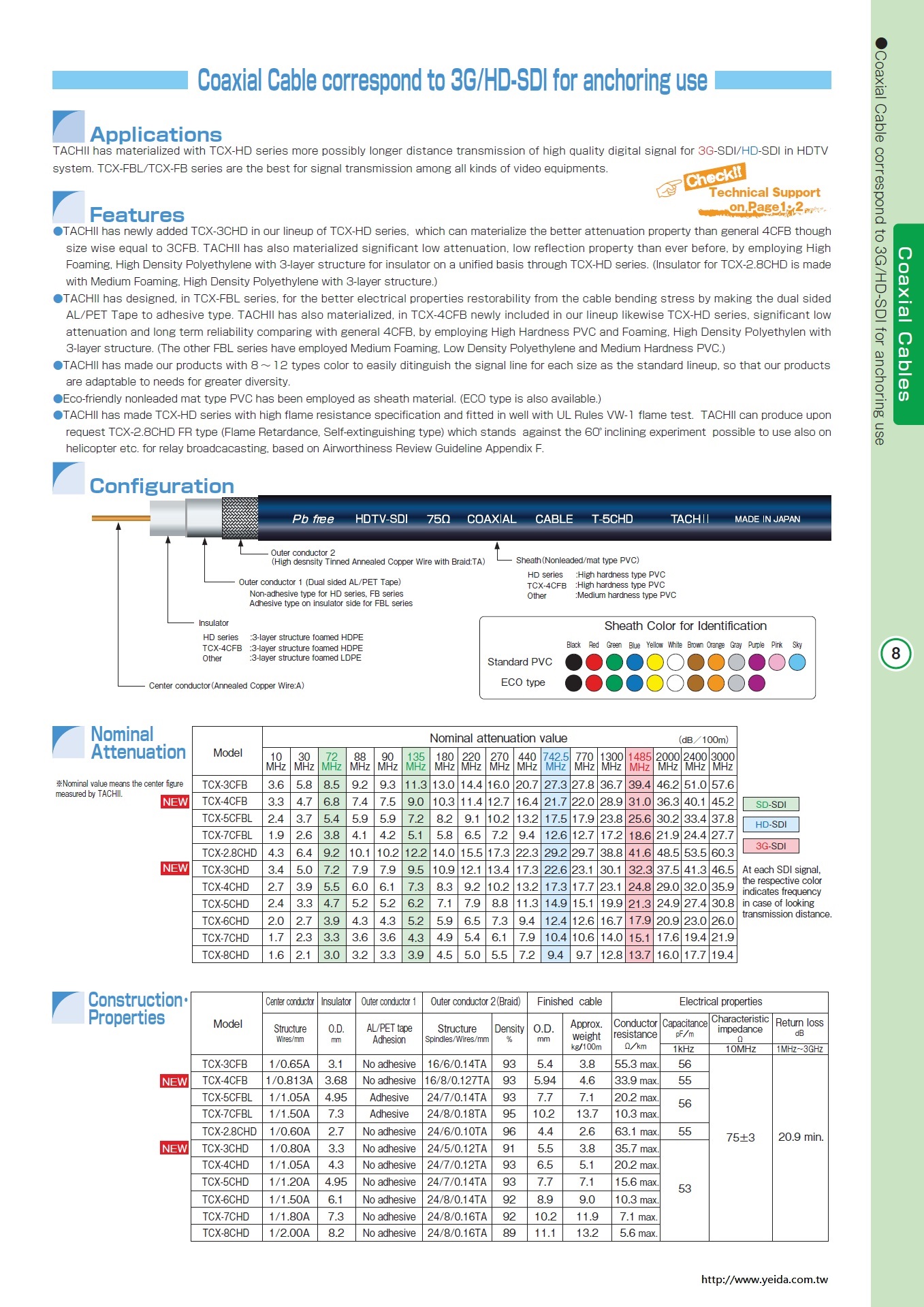

Coaxial Cable correspond to 3G/HD-SDI for anchoring use
Applications
TACHII has materialized with TCX-HD series more possibly longer distance transmission of high quality digital signal for 3G-SDI/HD-SDI in HDTV
system. TCX-FBL/TCX-FB series are the best for signal transmission among all kinds of video equipments.
Features
●TACHII has newly added TCX-3CHD in our lineup of TCX-HD series, which can materialize the better attenuation property than general 4CFB though
size wise equal to 3CFB. TACHII has also materialized significant low attenuation, low reflection property than ever before, by employing High
Foaming, High Density Polyethylene with 3-layer structure for insulator on a unified basis through TCX-HD series. (Insulator for TCX-2.8CHD is made
with Medium Foaming, High Density Polyethylene with 3-layer structure.)
●TACHII has designed, in TCX-FBL series, for the better electrical properties restorability from the cable bending stress by making the dual sided
AL/PET Tape to adhesive type. TACHII has also materialized, in TCX-4CFB newly included in our lineup likewise TCX-HD series, significant low
attenuation and long term reliability comparing with general 4CFB, by employing High Hardness PVC and Foaming, High Density Polyethylen with
3-layer structure. (The other FBL series have employed Medium Foaming, Low Density Polyethylene and Medium Hardness PVC.)
●TACHII has made our products with 8 ~ 12 types color to easily ditinguish the signal line for each size as the standard lineup, so that our products
are adaptable to needs for greater diversity.
●Eco-friendly nonleaded mat type PVC has been employed as sheath material. (ECO type is also available.)
●TACHII has made TCX-HD series with high flame resistance specification and fitted in well with UL Rules VW-1 flame test. TACHII can produce upon
request TCX-2.8CHD FR type (Flame Retardance, Self-extinguishing type) which stands against the 60° inclining experiment possible to use also on
helicopter etc. for relay broadcacasting, based on Airworthiness Review Guideline Appendix F.
